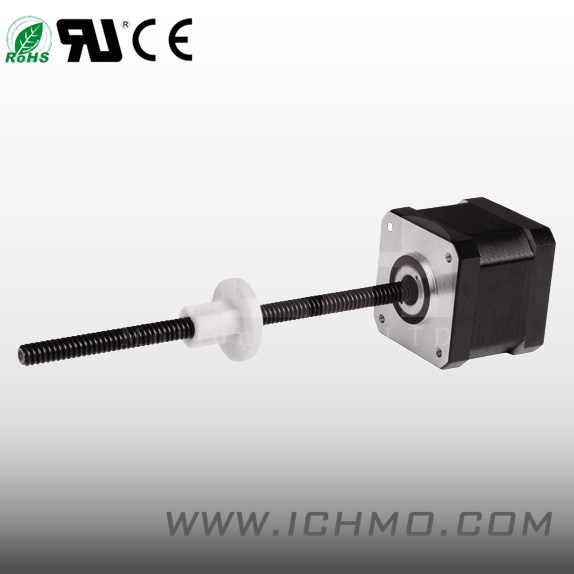

Linear Hybrid Stepper Motor Hl423 with High Quality

Name: Linear Hybrid Stepper Motor Hl423 with High Quality
Brand: all-electronics-online.com
SKU: 770402865
Availability: InStock
Rating: 4.5 (59 reviews)

Price:	US $ 30/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HL423
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	42mm
Step Angle:	1.8
Phase:	2/4
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Type:	Linear
Certification:	CE RoHS
Brand:	Ich

Product Description

LINEAR HYBRID STEPPER MOTOR

HL423(42mm)
- 1.8°/step
2/4 Phase

Screw Specification
Screw Dia.(mm) ---Tr6.35
Travel Per Step(mm)---0.0079 0.0158 0.0315
Lead(mm)---1.58 3.17 6.35

Screw Dia.(mm) ---Tr8.00
Travel Per Step(mm)---0.0400
Lead(mm)---8

Motor Electrical Specification
Series Model	Step Angle ( o )	L (mm)	Rated Current (A)	Phase Resistance (Ω)	Phase Inductance (mH)	Holding Torque (N.cm)	Detent Torque (N.cm)	Lead Wire (NO.)	Motor Weight ( g)
HL423-02813	1.8	34	1.3	2.4	2.8	28	1.6	4	220
HL423-02817	1.8	34	1.7	1.2	1.8	28	1.6	4	220
HL423-04017	1.8	40	1.7	1.5	2.8	40	2.2	4	280
HL423-04013	1.8	40	1.3	2.5	5.0	40	2.2	4	280
HL423-05217	1.8	48	1.7	1.8	3.2	52	2.6	4	350
HL423-05213	1.8	48	1.3	3.2	5.5	52	2.6	4	350
HL423-05223	1.8	48	2.3	1.2	1.6	52	2.6	4	350

I. CH MOTION is specialized in researching, developing and serve electric motor in China. With the professionalism of our highly trained and qualified mechanical engineers, electronic engineers and marketing consultants, we are able to provide product design and integration service to our customers in the world market.

We supply a complete range of electrical/electronic motors including AC motors, AC Gear motor, DC motor, DC Gear motor (spur gearbox and planetary gearbox), Stepper motors (stepping motor or step motor), Worm Geared motors, synchronous motor, brushless motor, servo motor, brake motor, sealed motor, hollow shaft motor, harmonic driver, linear stepper motor and other auxiliary electronic motor controls.

We have established an electrical consortium with small size electric motor manufacturers working as an exclusive exporters and world-wide sourcing agents of small electrical motors. These premium quality products are widely used in industrial automation, commercial and domestic automation.

Feel welcome to review all of our product range.

We are also proud to accept special design requirements from the customers.

Should you have questions about our product range, please contact our Sales Department.
