| Prod Model: |
HW68-1/4w |
| Model Number: |
Hw68-1/4W |
| R25 Resistance: |
1k Ohm |
| Resistance Tolerance: |
5% |
| Temperature Coefficient: |
3000 Ppm |
| Operating Temperature: |
-40-+180 Degree |
| Technology: |
Wirewound |
| Dissipation Factor: |
≥2.0MW/ ºC |
| Lead Type: |
Leadless |
| Craft: |
Ordinary Wire Wound |
| Free Samples: |
Yes |
| Resistance: |
Sensitive Resistor |
| Function For Resistance: |
Protective Resistor |
| Installation: |
SMD Resistor |
| Package Type: |
Throught Hole |
| Type: |
Thermal Resistor |
| Material: |
Platinum+ Nicekel + Foil |
| Application: |
Temperature Accurate Measurement |
| Brand: |
Hw |
Product Description

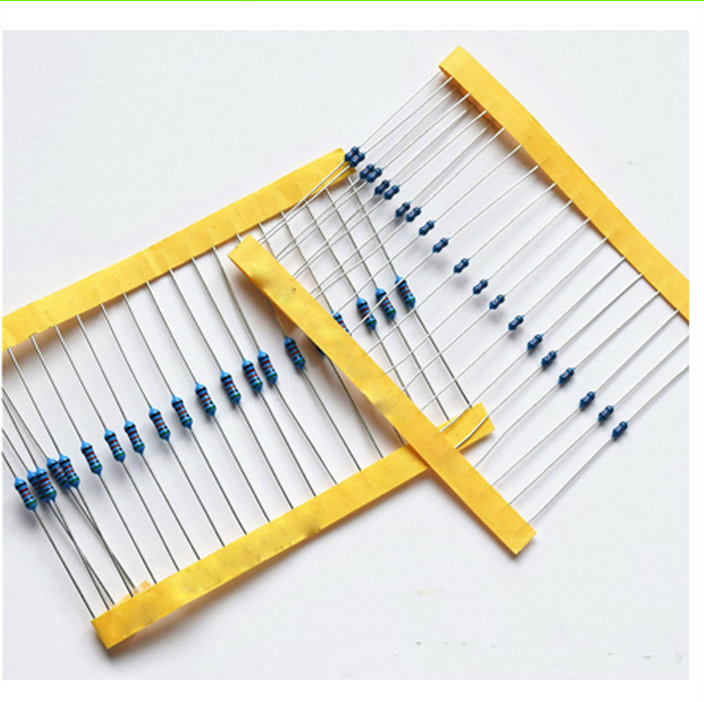

General Purpose Linear Leaded High Pulse Load 5% 1/4W 300k ohm Fixed Carbon Film Resistor
Linear Leaded Fixed Carbon Film 1.1K 5K ohm 10K Resistor
Specification
| R25 Resistance | 1K Ohm |
| Resistance Tolerance | 5% |
| Operating Temperature | -40ºC-+180ºC |
| Temperature Coefficient | 3000PPM |
| Dissipation Factor | ≥2.0mW/ ºC |
| Technology | Wirewound |
| Material | Platinum+ Nicekel + Foil |
| Lead type | Leadless |
| Craft | Ordinary wire wound |
| Shape | Cylinder |
| Tpye | Thermal Resistor |
| Feature Type | Carbon Film Resistor |
| Usage | Temperature Measurement
Temperature Control
Temperature Compensation |
Usage
It is wildly used to temperature control,temperature measure and temperature compensation for communications, automobiles, instruments, computers, house appliance etc.
Feature
1. Manufacture in physical technology with PTC material to ensure good stability.
2. The resistance is increasing linearly with the temperature increasing to enable the circuit design to be sample without linear compensation.
3. Can work under the -40ºC~180ºC.
4. Good compatibility.
5. Fast detect on temperature and high sensitive.
6. Small size and durable structure that can use in various motion sensor; Standard outlook( meet with the standard of RJ resistance size ) that can adapt to automated installation of printed circuit board .
7. Can replace PT 100 &PT1000 platinum resistance under 180ºC.
HW-68 Thermistor (Regular)
| Model | R25 Resistance(25ºC/ Ω) | Temperature Coefficient(PPM) | Resistor Tolerance |
| HW68-1/6W | 55.4 | 3900 | 1% 3% |
| | 100 | 4000 | 5% |
| | 109.7 | 3900 | 1% 3% |
| | 150 | 4000 | 5% |
| | 165 | 2000 | 3% |
| | 390 | 3000 | 3% |
| | 1K | 3000 | 1% 5% |
| | 1.1K | 3900 | 1% 3% |
| | 2K | 3000 | 5% |
| | 2K | 4500 | 1% |
| | 5K | 3000 | 5% |
| | 10K | 2000 | 5% |
| | 10K | 3000 | 1% 5% |
| HW68-1/4W | 6.5 | 4000 | 5% |
| | 10 | 4500 | 5% |
| | 13.6 | 4000 | 5% |
| | 105 | 2000 | 3% |
| | 110 | 2000 | 5% |
| | 185 | 2000 | 3% |
| | 190 | 1500 | 3% |
| | 200 | 2800 | 3% |
| | 270 | 2800 | 3% |
| | 390 | 1500 | 3% |
| | 2K | 4500 | 1% |
| | 20K | 2000 | 5% |
| | 50K | 2000 | 5% |
How to order:
In order to help you get the exact model, pls offer the following necessary info:
1.The rated resistance at 25°C: R25°C=________.
2.The B value: B25/50=________ or B25/85=__________.
3.Resistance tolerance:________.
4.The application of ________.
5.The range of operation temperature: ______°C to _______°C
Our Service:
1.OEM and ODM are welcome.
2.Small quantity order is welcome.
3.Sample lead time: 1-3 days
4. Your inquiry for our products will be replied in 10 hours.
