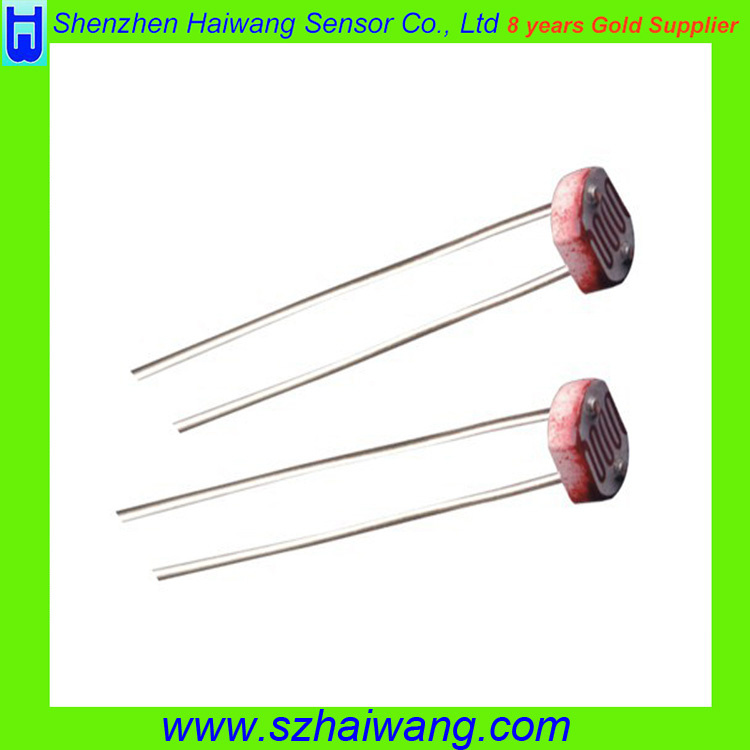

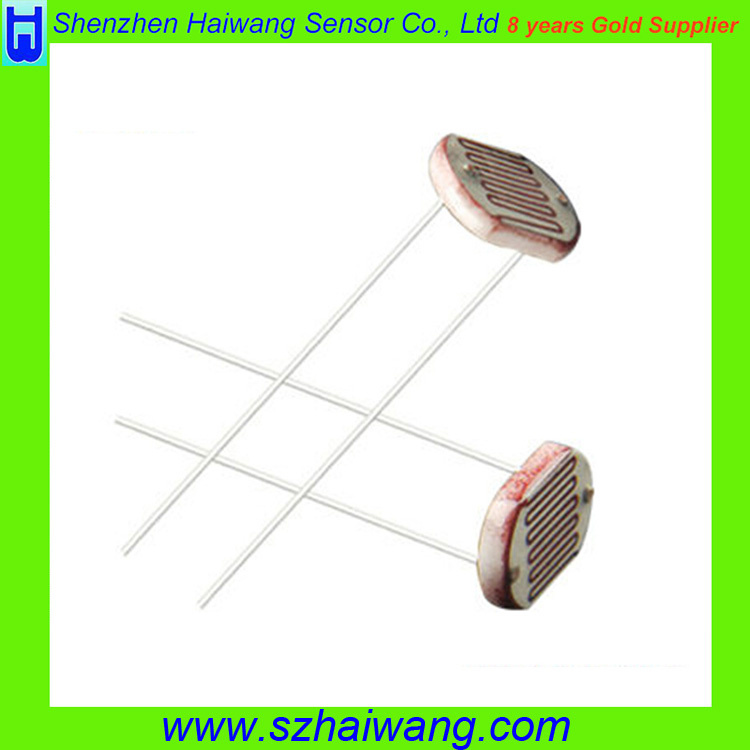

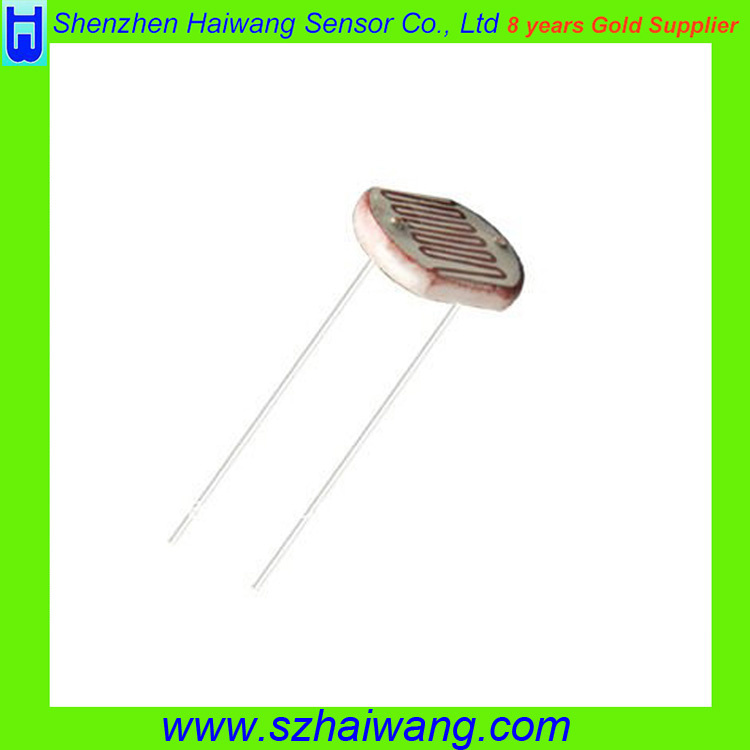

Factory Price 5mm CDS Photoresistor Sensor Specification| Item | Photoresistor Sensor |
| Model | MJ5516 |
| Diameter | 5mm |
| Resistance | 0.01Ohm-100K Ohm |
| Resistance Tolerance | -/+1% |
| Max.Voltage | 150VDC |
| Max. Power Consurrption | 100 MW |
| Operating Temperature | -30-+70 degree |
| Spec Trum Peak Value | 540 nm |
| Thickless | 1.8-/+0.2mm |
IntroductionPhotoresistor is a resistor which made of semi-conductor material, and the conductance changes with luminance variation. The photoresistor can be manufactured with different figures and illuminate area based on this characteristic.
There are 3 series of product, the expory resin seal, the metal shell seal and the plexinglass seal with Ф3, Ф4, Ф5, Ф6.5, Ф7, Ф11, Ф12, Ф20, Ф25 and other 13 kinds of specifications of more than 100 types of photoresistor products.
Features 1.Coated with epoxy
2.Good Reliability
3.High Sensitivity
4.Small Volume
5.Fast Response
6.Good Spectrum Characteristic
7. Low cost
8. eco-friendly
Applications- Camera Automation
- Indoor Sunlight Control
- Industrial Control
- Optical Lamp
- Optical Control Music IC
- Optical Control Switch
- Photoelectric Control
- Annunciator
- Electronic toy
- Electronic Detector
-Switch
-Light control
-Light control lamp
-Photoelectric control
-Camera automatic photometry
-Annunciator
Technical parameter for 5mm photocell sensor seriers
Diameter | Modle |
Max
Voltage (VDC) |
Max
Power (mw) |
Environmental
Temperature (degree) |
Spectrum
Peak Value (nm) | Light Resistance
10Lux(k Ohm) | Dark Resistance
(Mohm) | r 100/10 |
φ5
series
| MJ5516 | 150 | 90 | -30~+70°C | 540 | 5-10 | 0.6 | 0.5 |
| MJ5517 | 150 | 90 | -30~+70°C | 540 | 10-20 | 1 | 0.6 |
| MJ5528 | 150 | 90 | -30~+70°C | 540 | 20-30 | 2 | 0.6 |
| MJ5537 | 150 | 90 | -30~+70°C | 540 | 30-50 | 3 | 0.7 |
| MJ5539 | 150 | 90 | -30~+70°C | 540 | 50-100 | 5 | 0.8 |
| MJ5549 | 150 | 90 | -30~+70°C | 540 | 100-200 | 8 | 0.9 |
| MJ5604 | 150 | 90 | -30~+70°C | 540 | 4-7 | 0.5 | 0.5 |
| MJ5616 | 150 | 90 | -30~+70°C | 540 | 5-10 | 0.8 | 0.6 |
| MJ5617 | 150 | 90 | -30~+70°C | 540 | 10-20 | 2 | 0.6 |
| MJ5628 | 150 | 90 | -30~+70°C | 540 | 20-30 | 3 | 0.7 |
| MJ5637 | 150 | 90 | -30~+70°C | 540 | 30-50 | 4 | 0.8 |
| MJ5639 | 150 | 90 | -30~+70°C | 540 | 50-100 | 8 | 0.9 |
| MJ5649 | 150 | 90 | -30~+70°C | 540 | 100-200 | 15 | 0.95 |
More details could contact us:)
