Microwave Motion Sensor Module Security System in Garage
1. Detail:
This product is automatic induction control of Doppler radar products.High penetrating signal ability and strong anti interference performance.High sensitivity, long distance detect, high reliability, big detect angle. Also the power supply voltage is range.It is widely used in all kinds of human body induction lighting, anti-theft alarm situations.

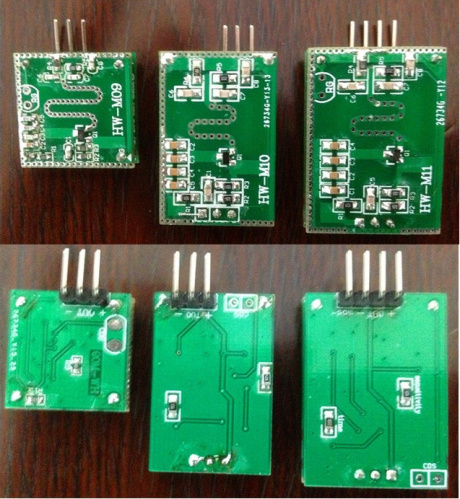

HW - M10 uses planar antenna is the transmission and reception, as the active sensor. The sensor transmit high frequency electromagnetic wave (10.525GHz) and receive echo. HW - M10 detecting changes in the echo inside even small movement. Then microprocessor triggers, executes instruction . Signal can be detected through glass, doors or thin wall.
Features:
1.Strong anti-interference ability, stable performance, not influenced by environmental temperature.
2 .Small size, simple installation. Quick response and high sensitivity.
3. Induction distance can also customize, the detection angle is 180 x 360
4 .Radar wave can penetrate non-metallic objects, such as wood, glass, plastic, fabric, etc
Warm note:
1, Strictly prohibited to operate in charge to avoid any mistake, such as burn out circuit or get an electric shock.
2, Avoid installed in the hot sun rain, to prevent damage or affect the lifetime.
3: Better install far away from the place of the magnetic field or the conductor to avoid wrong actions
We can custom the module as your request,welcome to ask me.OEM is highly welcomed.
Technical parameters:
| Supply voltage | DC 12V (6-24V) |
| Current | <5mA |
| Level of output | High-5V/low-0V |
| Trigger way | Repeat(default) |
| Delay time | default 3 s (3-200 s adjustable) |
| Blocking time | The default 0 s (adjustable) |
| Size | 30*20*6mm |
| Distance | 5-30m |
| Angle | 180*360 |
| Working temp | -20-+80 |
| Transmission power | <0.2mW |
| Load power | 1.By adding relay as a trigger signal. 2.Maximum power 1000 w |
Packaging & Shipment:
Packing: Standard Packing
Shipment: DHL, UPS, TNT,FedEx,EMS, Hongkong Post ect.
Delivery Time: 1-3 days after receiving payment
