| Prod Model: |
MS01 |
| Supply Voltage: |
24-60V DC 3.7V-24V |
| Current: |
<8mA |
| Operating Voltage: |
Vcc=+5.0V Vcc=+3.3V(by Custom) |
| Trigger Way: |
Repeat(Default) |
| Frequency: |
10.525GHz |
| Delay Time: |
Default 2 S-3s ( Adjustable) |
| Size: |
51*26mm |
| Distance: |
Normal=10m, Custom=0.5m-20m |
| Angle: |
180-360 |
| Output: |
Directly with a Large Load |
| Metal Coating: |
Tin |
| Mode Of Production: |
SMT |
| Layers: |
Double-Layer |
| Base Material: |
FR-4 |
| Customized: |
Customized |
| Condition: |
New |
| Certification: |
Ce |
Product Description
Intellectual Motion Sensor Single Board with Mini Size
Promotional 24V ~ 60V DC ultra-thin single PCB microwave sensor module for intelligent household appliances /LED Light HW-S01
High sensitivety microwave sensor module,detect all moving objects from all directions,induction
HW-S01 microwave module can connect with large load( within 200W), Samples can be sent to you for testing
1.Detail:
HW - MS01is our company newly developed MS series in a single PCB microwave sensor module.The product is particularly suited to ultra-thin design of intelligent household appliances, security products, lighting products and other electronics. This unique circuit structure design, function expansion, the strength of the strong compatibility and high cost performance advantages, is the leading the market advantage of the single panel module.
Built-in LDO functions: Set aside IC-7550/7533 of the application of bonding pad on the back of PCB, convenient transform DC3.7V ~ 24V and DC24V ~ 60V, which is easy to meet customers different requirements to order;
External distance and time adjusted function: easy to external application of secondary development, MCU is used to analyse the distance&time adjusted;
Two kinds of output modes: 1, the default output mode: on/cut, namely low level effectively. 2, customize output way: high level effective model (Vout≈Vcc).
Single PCB module,simplifies the making process, economize the make time and cost, and reduce the product of bad hidden trouble, improve the quality. so, the products have demonstrated the superior market competitiveness.
We can custom the module as your request,welcome to ask me.OEM is highly welcomed.
2.Technical parameters:
| NO. | Items of parameter | Specifications of parameter | remarks |
| 01 | P/S.input range | 24V ~ 60VDC;3.7V~24VDC(by custom) | Custom-able |
| 02 | operating voltage | Vcc=+5.0V; Vcc=+3.3V(by custom) | stabili-volt inside,Custom-able:Vcc=+5.0V or +3.3V |
| 03 | operating current | Static Iin≤7mA;Srends Iin≤8mA | basic standard |
| 04 | Output mode | on/cut:Load≤5A/60V
Vout:H≈Vcc/L=0 | Output mode:Custom-able |
| 03 | Sensor distance | Default:10m(indoor test) | adjustable |
| 04 | Delay-time for output | Default:2sec. | adjustable |
| 05 | frequency range | FT=2.5GHz-5.8GHz | design by standards |
| 06 | Outline size | single-PCB:51X26mm | PCB surface white oil |

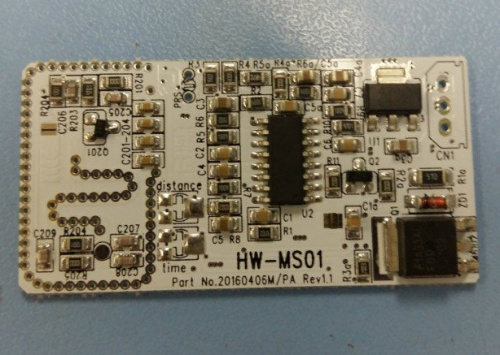

Photo Show:
3. Warm note:
1.Strictly prohibited to operate in charge to avoid any mistake, such as burn out circuit or get an electric shock.
2.Avoid installed in the rain, to prevent damage or affect the lifetime.
3.Better install far away from the place of the magnetic field or the conductor to avoid wrong actions
