24VDC Input Microwave Radar Detector Sensor Module

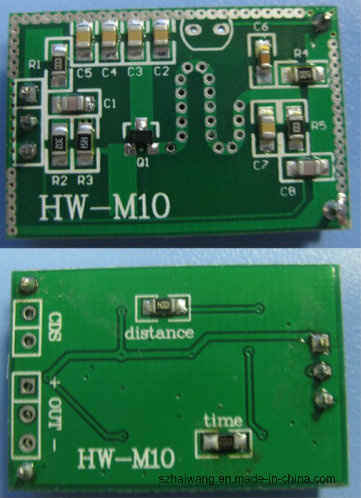

24VDC Input Microwave Radar Detector Sensor Module HW-M10

Detail:
This product is automatic induction control of doppler radar products. High penetrating signal
ability and strong anti interference performance. High sensitivity, long distance detection wirth high reliability and big detect angle. Also the power supply voltage is in the range of 6V-24V. It is widely used in all kinds of human body induction lighting, anti-theft alarm situations.

HW - M10 uses planar antenna for the transmission and reception, as the active sensor.The sensor
transmits high frequency electromagnetic wave (10.525GHz) and receive echo. HW - M10 detecting changes in the echo inside even small movement.Then microprocessor triggers, Executes instruction signal can be detected through glass, doors or thin wall.

Features:
1. Strong anti-interference ability, stable performance, not influenced by environmental temperature.
2. Small size, simple installation, quick response and high sensitivity.
3 .Induction distance can also customized, the detection angle is 180 - 360 degree.
4. Radar wave can penetrate non-metallic objects, such as wood, glass, plastic, fabric, etc

Warm note:
1.Strictly prohibited to operate in charge to avoid any mistake, such as burn out circuit or get an
electric shock.
2,Avoid installed in the hot sun or rain, to prevent damage and affect the lifetime.
3:Better to install far away from the place of the magnetic field or the conductor to avoid wrong actions.

Advantage over pir module :
1. Can detect through wooden,glass,plastic and so on.Except for metal items.
2. Is the one with strong interference.Not influenced by surroundings,temperature to savings energy.
3. Can be installed inside the plastic box
