Guangzhou Topshine Electronic Technology Co., Ltd. >> Live Tracking System RS232 Vehicle GPS Tracker with Crash Sensor

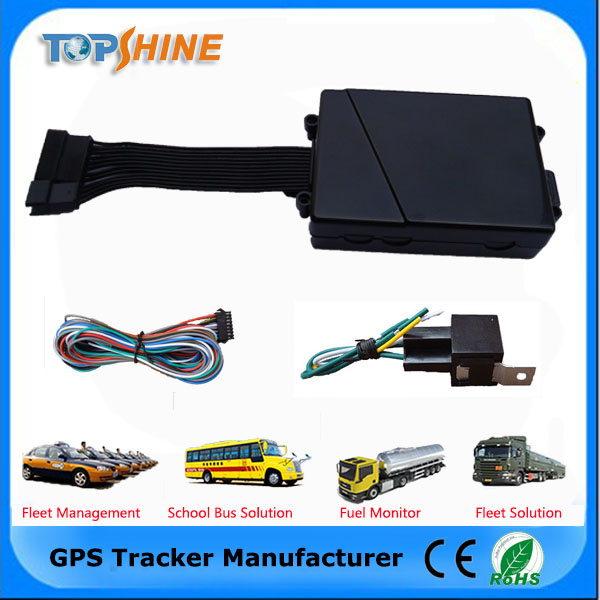

Live Tracking System RS232 Vehicle GPS Tracker with Crash Sensor

Live Tracking System RS232 Vehicle GPS Tracker with Crash Sensor
Price: US $ 40-60/Set
Min Order: 1/Set
Pay Type: T/T,Western Union,Paypal,Money Gram
Prod Model: Tracker MT100
Function: RFID Car Alarm
Free Tracking Platform: Yes
Memory: 4MB Data Logger
Warranty: Two Years
Ota Function: Yes
Oil Leaking Alarm: Yes
Remote Engine Cut: Yes
Engine On/off Detection: Support
AC Detection: Support
Door Lock/ Unlock: Support

Product Description

Live tracking system RS232 vehicle GPS tracker with crash sensor



1. Product Overview

MT100 is a kind of mini GPS vehicle tracking product can be used for tracking and security of motorcycle and automobile etc. Mini size, builtin antenna and waterproof designed, easy to be installed and concealed, with power voltage range from 9V~60V, therefore can satisfy tracking and security demands for all kinds of vehicles.


2. Applications


l Vehicle Real Time Tracking
l Vehicle Security/Anti-Hijack
l Fleet Management





3. Features & Functions

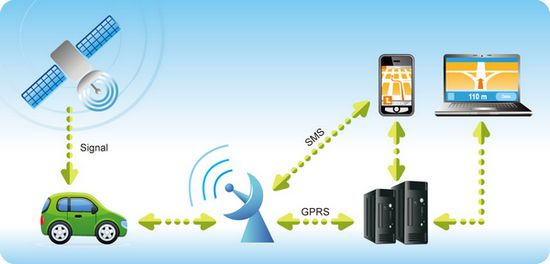

* Tracking by SMS/GPRS (TCP/UDP)
* Tracking by time/distance interval
* OTA Function
* Real time tracking via the web-platform
* Get position location via call/SMS
* Engine on/off detection
* Built-in backup 650 mAh battery
* Remote Engine cut off to stop the car in safe condition
* ARM9 high speed microcontroller
* Get location physical name via SMS & from the web-platform
* Google Map link for location via SMS, it shows your location on map via mobile phone.
* Mileage calculation with longitude and latitude via SMS; view mileage data via GPS web-based tracking centre system
* Built-in motion sensor for power & GPRS flow saving mode (sleep mode)
* Built-in 4MB memory & position logging capacity up to 26,000+ waypoints even no GPRS signal
* Over speed alert
* Geo-fence alert
* Power failure/low power alert
* SOS Panic button, SOS alert (optional)
* Harsh braking and harsh acceleration alarm
* Suddenly acceleration/brake alert
* Oil leaking/Refuel Alarm (need fuel sensor support) (optional)
* Accident alarm (need crash sensor support) (optional)
* RS232 Port Can equip with RFID kit for driver identification and auto Arm/Disarm functions (movement/towed alert, ignition alert, auto cut off engine etc) (need RFID support) (optional)
* Analog input for Temperature & Fuel sensor detecting/monitoring (optional)




4. Specifications

ItemsSpecifications
Dimension80*58*22mm
Weight92g
Input voltageDC 9V~36V/1.5A
Back-up Battery650mAh/3.7V
Power Consumption65mA standby current
Operating Temperature-20°C~75°C
Humidity5%~95%
Work Time33 hours in power-saving mode and 8 hours in normal mode
LED2 LED lights to show GPS, GSM status
Button1 SOS and 1 power on/off
MicrophoneDefault
Memory4M Byte
SensorMotion sensor
GSM FrequencyGSM 850/900/1800/1900MHz
GPS ChipLatest GPS SIRF-Star III Chipset
GPS Sensitivity-159dB
Positioning Accuracy10meters, 2D RMS
I/O2 Input         3 Output
1 Analog Input   1 RS232 Port    1 USB Port

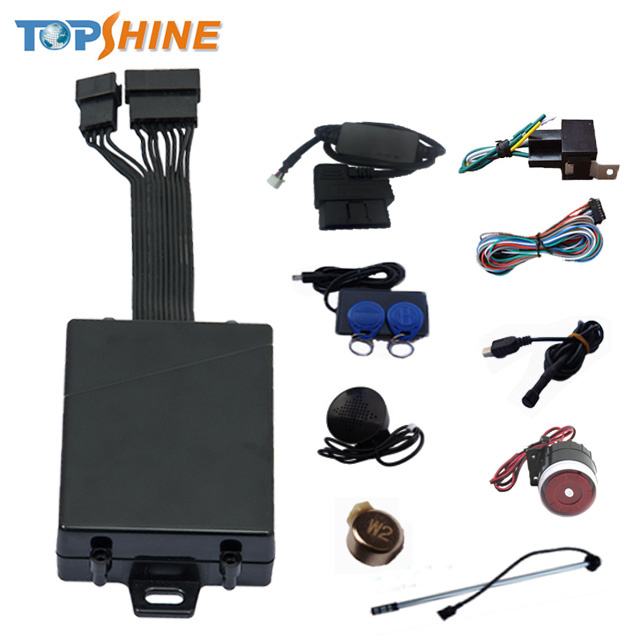

5. Product Accessories

MT100 unit -- 1 unit
8P wire  --  1 piece
Relay - 1 piece



6. Optional Accessoires

Cuttable Fuel Sensor
Ultrasonic fuel senosr
Smart Phone Reader
Crash Sensor
Temperature Sensor
Active RFID Kit
Passive RFID Kit
OBDII connector
Microphone
Speaker
USB configure Cable





7. Online GPRS01 Tracking Platform

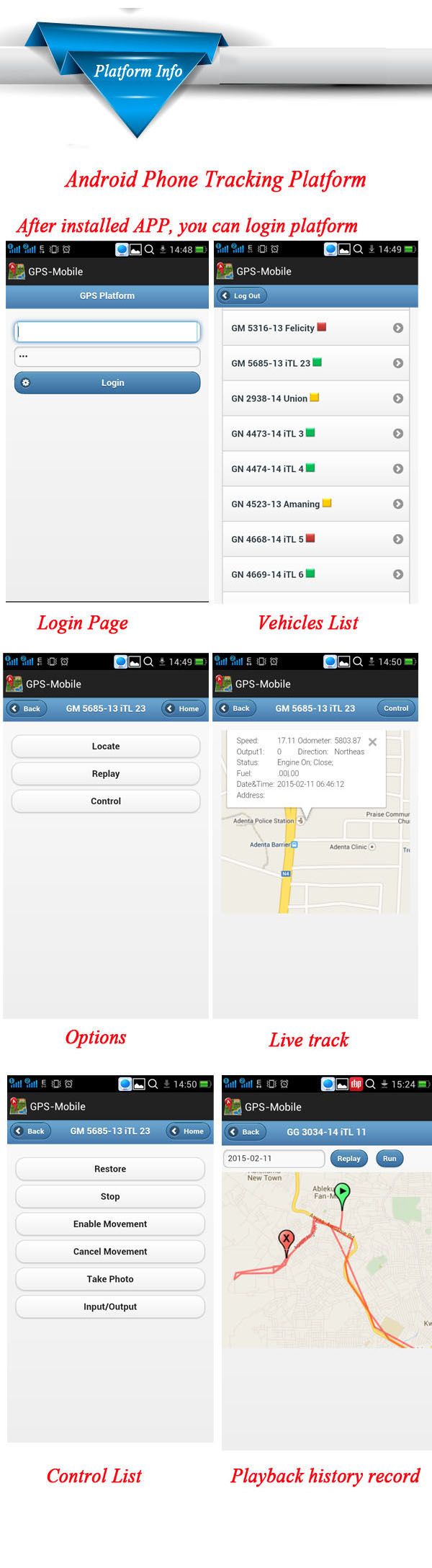

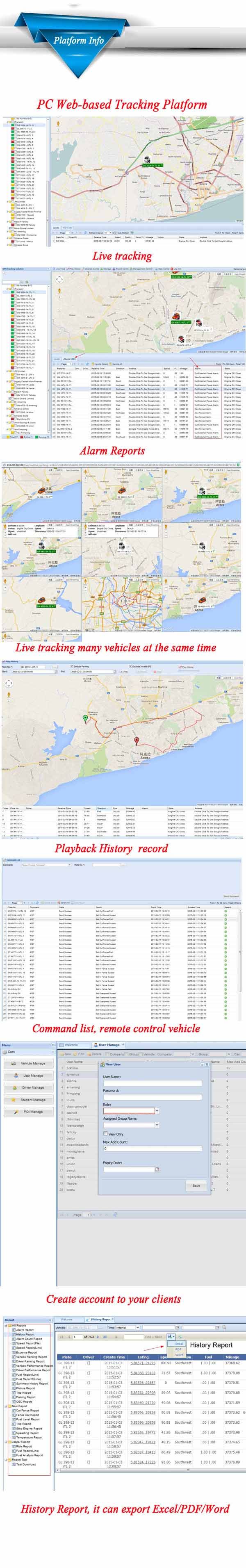

Topshine company provide 2 free tracking platform (web based and mobile APP)
link: www.track-car.com
Mobile link: www.track-car.com/m
User: test1
Pass: 123






8. Our company advantage

* Provide 2 free Tracking Platfrom (PC base & Android APP) lifelong. No charge.
* 2 years warranty
* All of our products have CE & RoHS & SGS certification
* Supply OEM&ODM service.
* Our engineer team could customize your personality tracking platform
* Professioal R&D team provide Customization and after-sale service lifelong .
* 100% made of industrial-grade component,GSM module have certified(CE2200)and with legal IMEI code.




9. Payment & Shipment

Payment Term: PayPal /western union /TT
Shipping Term: DHL /Fedex /TNT /ARAMEX/EMX
Lead time: Samples within 1 days of delivery.bulk production within 5-7days of delivery.






If you need other features GPS tracker, please click " Product catalogue"

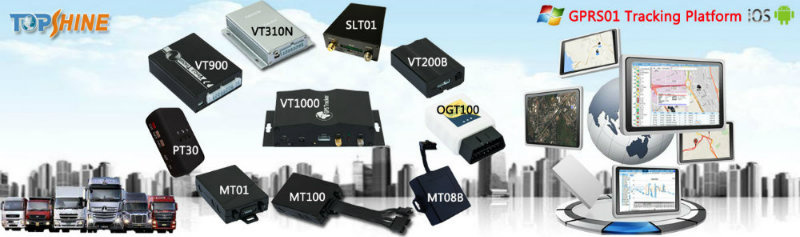

Guangzhou Topshine Electronic Technology Co., Ltd. is a China leader manufacturer of superior Global Positioning System (GPS) tracking solutions and innovative integrated wireless communication equipments.

Since 1999, Topshine designs, develops, and manufactures high quality GPS tracking products, including location based and personal tracking systems for the vehicle, insurance, logistics and marine markets etc.

With experienced R&D team, excellent sales team and user-friendly software platform, we can promptly provide customized products, solutions and technical support and services, which helps us build a high reputation in the industry and among our customers all over the world. 90% of our products are for export. Our duty is to deliver the right product at the best price to meet your requirements. We try to exceed the expectations of every client by offering outstanding products backed up with effective and professional customer services and support.

TOPSHINE provides a proprietary system to help clients manage their fleet and asset.

Our proprietary software, Platform GPRS01, allows our clients who rely on a fleet of

Vehicles to transport their goods or clients with valuable moveable assets, to monitor

Their assets thus minimizing the risks associated with their investments, increasing

Efficiency and productivity, and minimizing logistics and manpower costs. Real-time

Information can help with effective decision making, thus improving your company's

Performance and reducing overall costs.

We currently serve over 100 major customers and our clients come from various

Industries with unique demands or operational requirements. We can customise our

System to cater to our client's needs. In our ever-growing network of connected

Devices, our fleet can be monitored from anywhere with our mobile applications. Our

Services cover Hong Kong, China and cross border fleets.

Professional Consulting Services

With years of service experience, we have built up a good reputation and a strong

Professional team to provide strategic solutions and technical advice in fleet

Management. We work closely with all our clients to define their problems and

Expectations and tailor the best solution to solve their fleet management problems.

Our role is more than a technology provider who is assisting you to drive your

Business to be more profitable and competitive.

Customer Integration Services

Our team will support you as you work to integrate the GPRS01 system into your

Operations. We provide complete servicing from the installation to the maintenance of

Each tracking unit. A member of our customer support team will help coordinate the

Times and location for unit installation and demo/training times at your convenience,

While you, our client, can concentrate on managing your business.

On-Site Training Services

Once we have installed our units in your fleets, a training session will be arranged to

Familiarize all necessary parties with the software. We also provide a customer service

Help desk to assist you should you have any further questions. Our strong customer

Service team will ensure you understand the system and can put it to good use.

Customer Care Services

Customer satisfaction is a critical element for us. We care about our clients' needs,

Ideas and opinions. We make sure our products and services satisfy or exceed our

Client's expectations.
