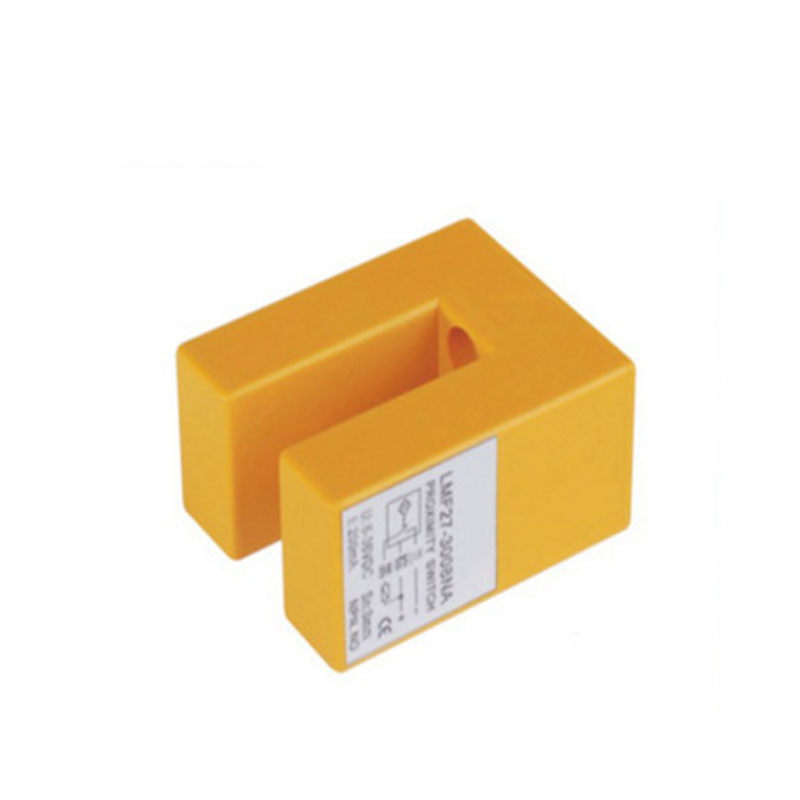

Lmf27 Detection Distance 8mm Inductive Proximity Switch Sensor
Price: |
US $ 2.9-3.6/Piece |
Min Order: |
10/Piece |
Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
FeaturesCompact volumeHigh precision of repeated locationDiversified exterior structuresGood performance of anti-interference.Many output formsHigh on-off frequency.Wide voltage rangeDust proof, vibration proof, water proof and oil proof.With short-circuit protection and inverted connecting protection.Long service lifeTechnical SpecificationsNon-flush | Detection distance | 8mm |
DC6-36V | NPN | NO | 3008NA |
NC | 3008NB |
NO+NC | 3008NC |
PNP | NO | 3008PA |
NC | 3008PB |
NO+NC | 3008PC |
two wire system | NO | 3008LA |
NC | 3008LB |
AC90-250V | SRC Control label silicon | NO | 2008A |
NC | 2008B |
NO+NC | |
Relay output | |
Control output | DC | 200mA |
SCR/Relay | 300mA |
Output voltage dropDC/AC | DC<3V , DC(Two wire system)<3.9V , AC<10V |
Consumption current | DC < 15mA, AC < 10mA |
Standard detected object | 18×18×1(A3 iron) |
Repeated precision | 0.05 |
DC/AC Response frequency | 500Hz/10Hz |
Working environment temperature | -25ºC~70ºC |
Insulation resistance | 50MΩ |
Shell material | ABS Resin |
Protection grade | IEC standard IP67 |
Dimensions(mm)
Prod Model: |
LMF27 |
Control Output: |
DC200mA |
Output Voltage Dropdc/AC: |
DC<3V , DC(Two Wire System)<3.9V , AC<10V |
Consumption Current: |
DC<15mA AC<10mA |
Repeated Precision: |
0.05 |
DC/AC Response Frequency: |
500Hz/10Hz |
Shell Material: |
ABS Resin |
Protection Grade: |
IEC Standard IP67 |
Standard: |
Standard |
Type: |
Inductance Electric Proximity Sensor Switch |
Principle: |
Inductance |
Certification: |
IEC Standard IP67 |
