CHINA YUMO ELECTRIC CO., LIMITED >> G30-3A70PC M30 Customized PNP No+Nc 70cm Infrared Diffuse Photoelectric Switch

G30-3A70PC M30 Customized PNP No+Nc 70cm Infrared Diffuse Photoelectric Switch

G30-3A70PC M30 Customized PNP No+Nc 70cm Infrared Diffuse Photoelectric Switch
Price: US $ 3-15/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal

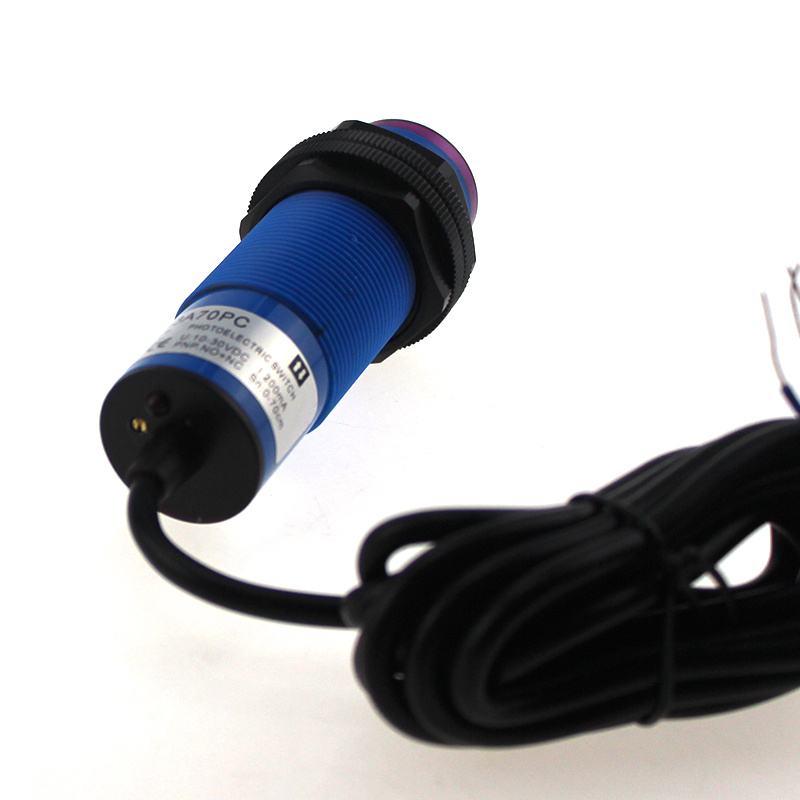

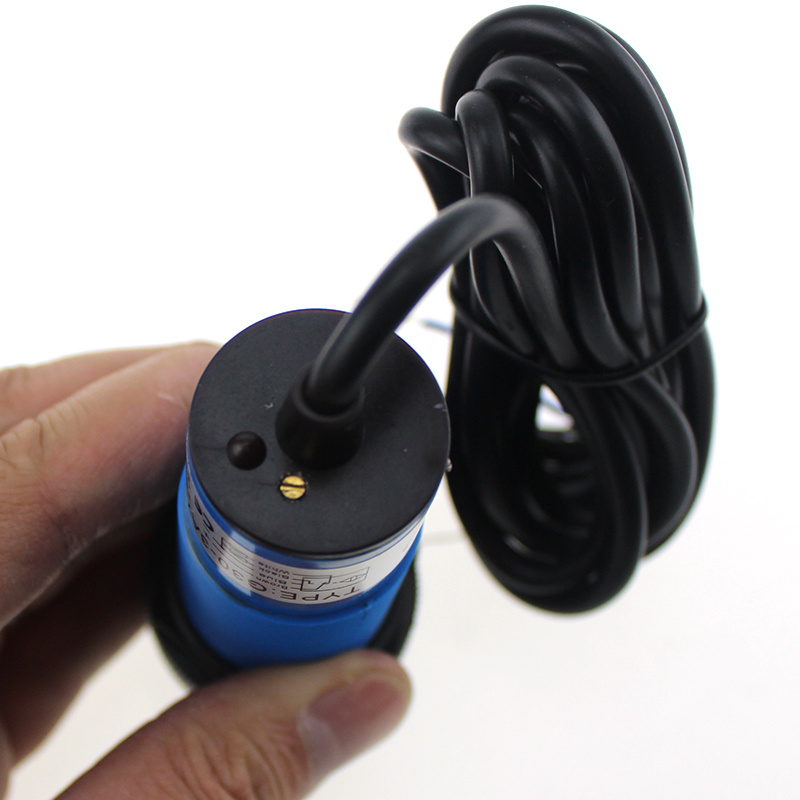

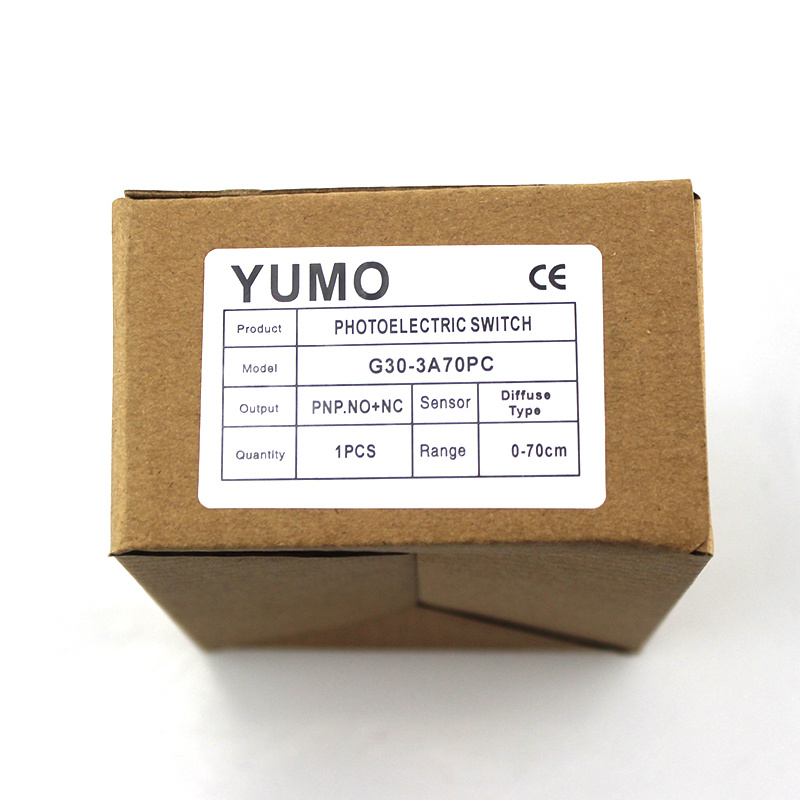

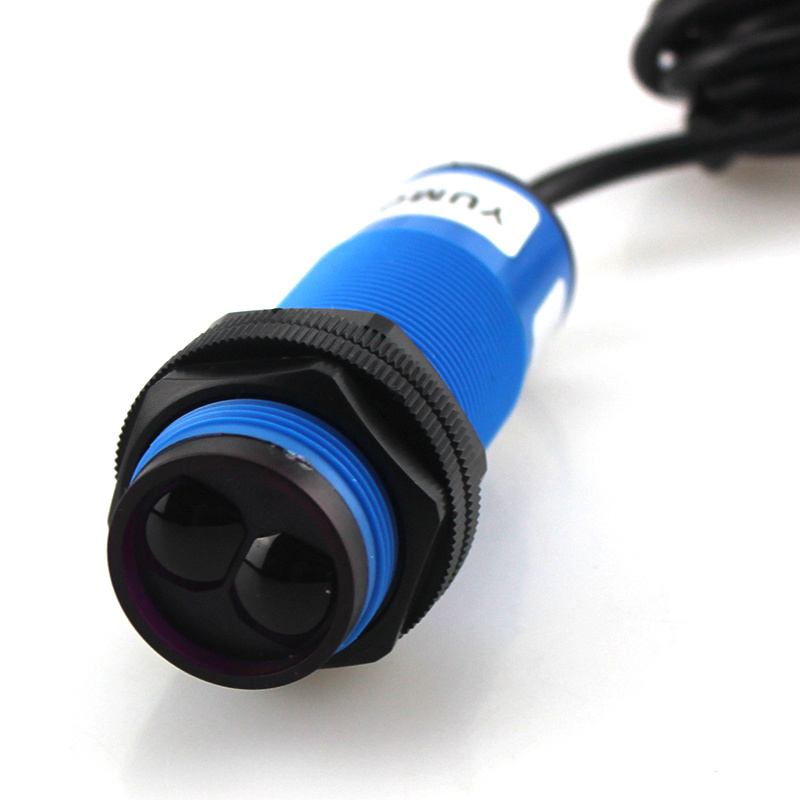

G30-3A70PC M30 customized PNP NO+NC 70cm infrared diffuse photoelectric switch

Proximity Switch
1.definition of infrared ray photoelectric switch 2.Detection distance 05: 5cm 10: 10cm 30: 30cm 101:10m  Certificate:CE



Product Table

Structural category

Photoelectric switch

Outward appearance code

G18

G30

G50

Outward appearance illustration







Diffuse type

Detection distance

10cm

20 -100cm

30cm 50cm

10- 30 VDC

NPN

NO

G18 -3A 10NA

G30 -3A 70NA

G50 -3A 30NA

NC

G18 -3A 10NB

G30 -3A 70NB

G50 -3A 30NB

NO+NC

G18 -3A 10NC

G30 -3A 70NC

G50 -3A 30NC

PNP

NO

G18 -3A 10PA

G30 -3A 70PA

G50 -3A 30PA

NC

G18 -3A 10PB

G30 -3A 70PB

G50 -3A 30PB

NO+NC

G18 -3A 10PC

G30 -3A 70PC

G50 -3A 30PC

90~250 VAC

SCR Controllable Silicon

NO

G18 -2A 10LA

G30 -2A 70LA

G50 -3A 30LA

NC

G18 -2A 10LB

G30 -2A 70LB

-

Relay output



-

G30 -2A 70JC

G50 -3A 30JC

Retrore-flictive

Detection distance

2m

3 -5m

4m

10- 30 VDC

NPN

NO

G18-3B2NA

G30-3B3NA

G50-3B4NA

NC

G18-3B2NB

G30-3B3NB

G50-3B4NB

NO+NC

G18-3B2NC

G30-3B3NC

G50-3B4NC

PNP

NO

G18-3B2PA

G30-3B3PA

G50-3B4PA

NC

G18-3B2PB

G30-3B3PB

G50-3B4PB

NO+NC

G18-3B2PC

G30-3B3PC

G50-3B4PC

90~250 VAC

SCR Controllablerollable Silicon

NO

G18-2B2LA

G30-2B3LA

-

NC

G18-2B 2LB

G30-2B 3LB

-

Relay output

-

G30-2B3JC

-

Tough beam

Detection distance

5m

10m

5m

10- 30 VDC

NPN

NO

G18 -3C 5NA

G30 -3C 101NA

G50 -3C 5NA

NC

G18 -3C 5NB

G30 -3C 101NB

G50 -3C 5NB

NO+NC

G18 -3C 5NC

G30 -3C 101NC

G50 -3C 5NC

PNP

NO

G18 -3C 5PA

G30 -3C 101PA

G50 -3C 5PA

NC

G18 -3C 5PB

G30 -3C 101PB

G50 -3C 5PB

NO+NC

G18 -3C 5PC

G30 -3C 101PC

G50 -3C 5PC

90~250 VAC

SCR Controllable Silicon

NO

G18 -2C 5LA

G30 -2C 101LA

G50 -3C 5LA

NC

G18 -2C 5LB

G30 -2C 101LB

-

Relay output

-

G30 -2C 101JC

G50 -3C 5JC

DC/SCR/Control output

DC:200mA, AC:300mA

DC:200mA, AC:300mA , relay: 2A

DC/AC Consumption current

DC15mA, AC:10mA

DC/AC Response time

DC2mS, AC20mS

Directional angle

3°-10°

Directed object

<>

Transparent or opaque body

Working environment temperature

-25C degree~ + 55 C degree

Intensity of illumination of working environment

Sunlight under 10000LX incandescent lamp under 3000LX

Shell material

Plastic

Protection grade

IP66

IP66

IP54











Prod Model: G30-3A70PC
Range: 0-70cm
