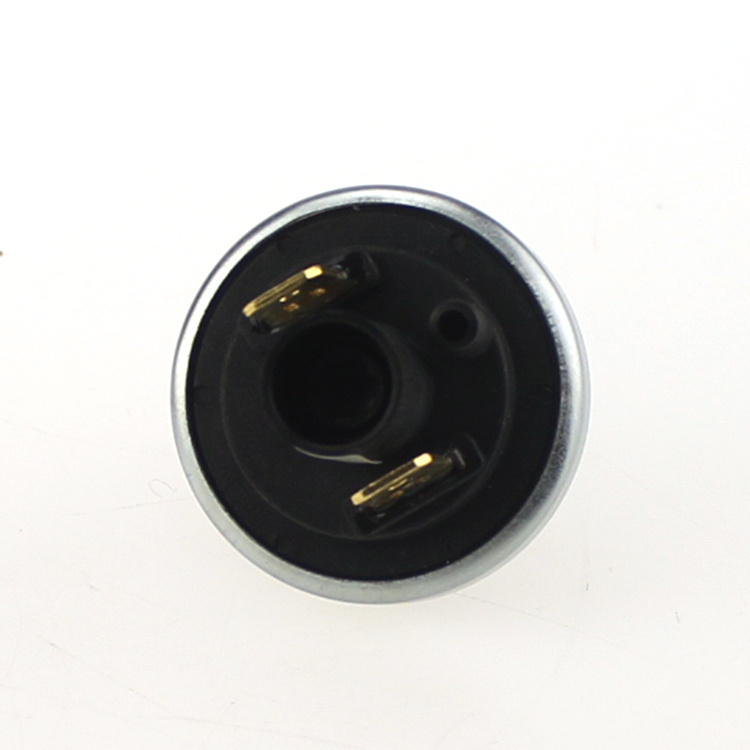

LFS-03 15-2500mbar miniature pressure switchProduct Description
pressure switch,air pressure switch,air compressor pressure switch,pump pressure switch,water pressure switch,low pressure switch,oil pressure switch,a/c pressure switch,differential pressure switch,water pump pressure switch
pressure switch

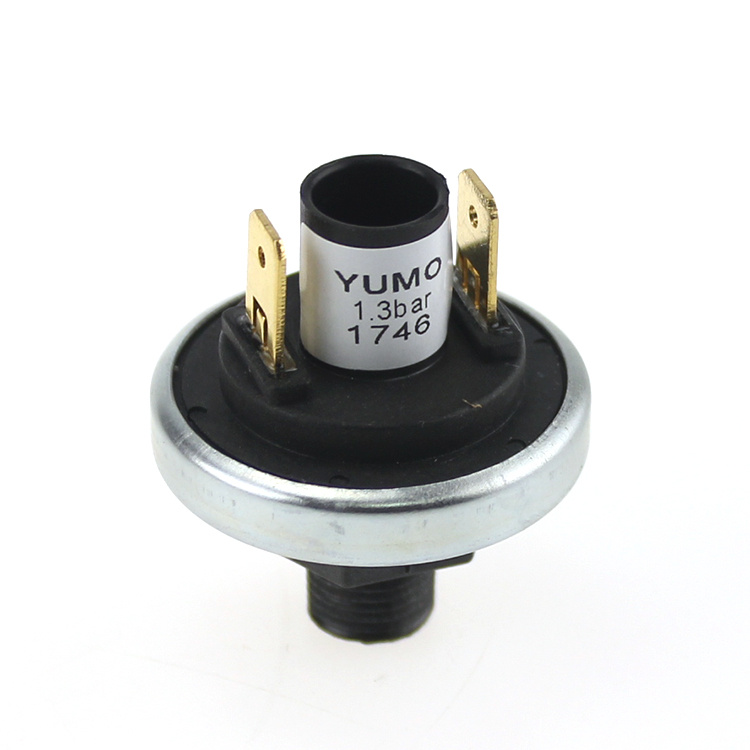

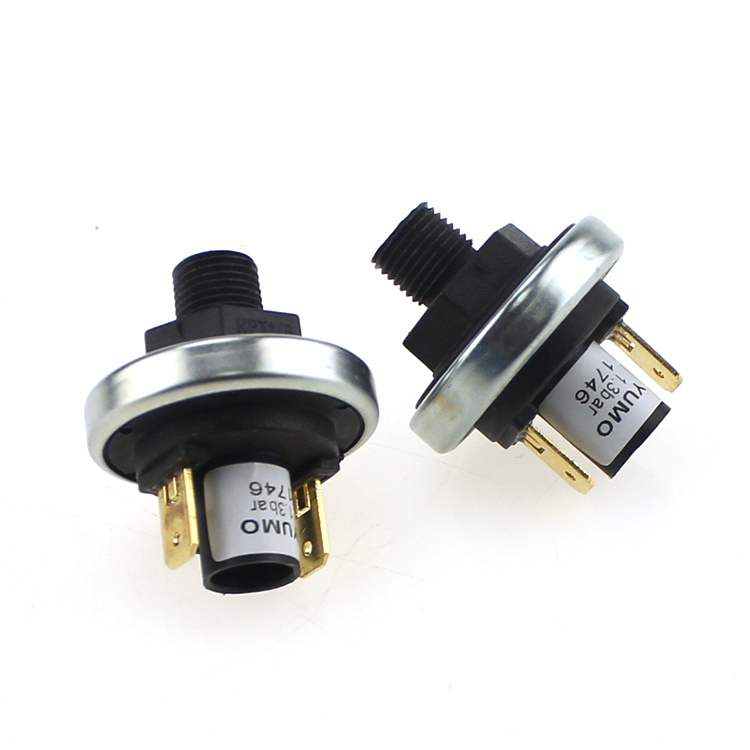

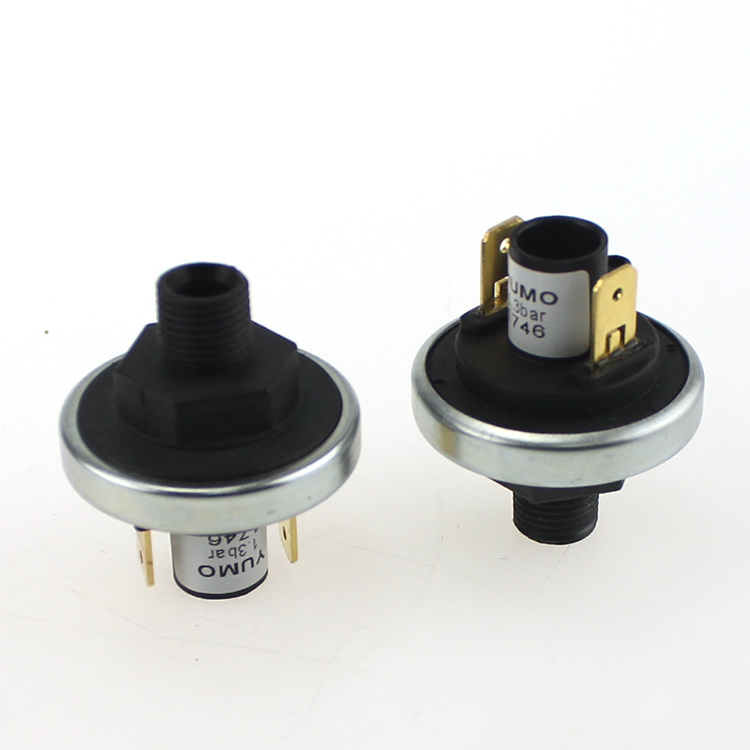

LFS-03 can be is applied to detection positive or negative pressure. It can be used as a gauge or differential pressure switch with almost no hysteresis. If 2 switch points are required, 2 pressure switches with different calibrations should be employed. The method of fixing the tab terminals to the switch body does not allow for absolute air sealing. The switch is therefore not recommended for applications where static vacuum has to be maintained. However, special models with additional pressure spring which allow for the vacuum to be connected to the pressure inlet side are available on request.
Specification
Model | LFS-03 |
Electrical Function | 1 pole NO
1 pole NC |
Switch Rating | 1 pole NO:
2.5(0.5) A 250V~1E4
1 A250 V~5E4(max 800 mbar)
20 mA 250 V~5E4(max 800 mbar)
1 Pole NC:
2.5(0.5) A 250V~1E4
0.5 A250 V~5E4(max 800 mbar)
20 mA 250 V~5E4 |
Temperature | Ambient: -10 to +85ºC |
Electrical Connections | Tab terminals 6.4 x0.8 mm
Tab terminals 4.8 x0.8 mm(1 pole NO only) |
PressureRange | Pressure: +15 to +2500 mbar
Tolerance: +/- 10% NO; +/- 15% NC
Vacuum: -600 to -15 mbar
Tolerance: +/- 15% |
Sample Line Connections | Pressure and vacuum: Inlet 4.0 mm
Threaded inlet M10 x1 mmor 1/4 gas |
Switch hysteresis | Almost no hysteresis |
Max. working pressure | 3000 mbar |
Medium | Non hazardous gas only |
Fixing Methods | Plastics clips (version with inlet only) |
Materials | Lower body: PA 66 |
Upper body: PA 66 |
Adjust. screw: PA 66 |
Contact carrying parts: Brass Silver plated (gold plating on request)
Membrane: Nitrile, EPDM, (Silicone, Perbunan on request) according to application |
Conversion: 1mbar = 100 Pa 1 in/H2O= 249 Pa
