| Prod Model: |
VT310N |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size (mm): |
117*85*26 |
| Weight (G): |
180 |
| Backup Battery (mAh): |
850 |
| GPS Module: |
Sirf3 |
| GSM Module: |
Quectel M35 |
| Data Logger: |
4MB |
| Inputs: |
5 |
| Outputs: |
5 |
| Analog Inputs: |
2 |
| Input Voltage (V DC): |
9 ~ 36 |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Operating Principle: |
GPS Tracker |
| Port Number: |
5 Input, 5output, 2analog Port, 1 USB Port |
| Model: |
Vt310n |
| Screen Size: |
No Screen |
| Carrier Frequency: |
850/900/1800/1900MHz |
| Chip: |
GPS Chip: Sirf3 GSM Chip: M35 |
| Brand: |
Topshine/Neutral |
| Certification: |
Ce/RoHS/SGS |
Product Description

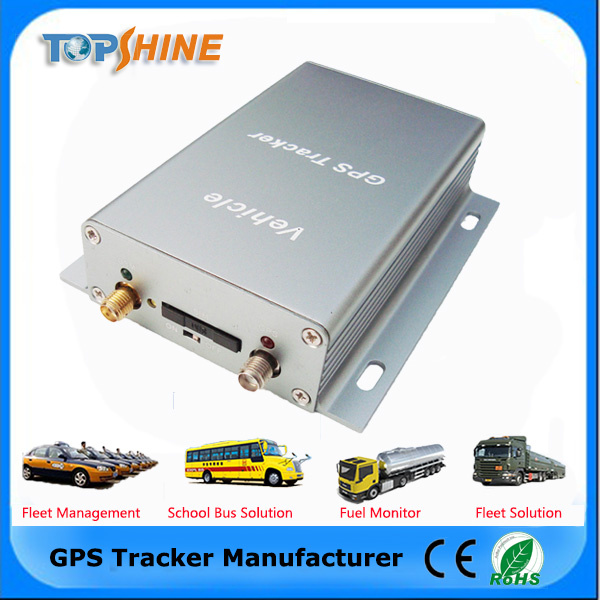

Free Tracking System Temperature sensor unlock lock Vehicle GPS Tracker VT310NProduct OverviewVT310 is an advanced GPS/GSM/GPRS tracking device which is specially developed and designed for vehicle real-time tracking and security.VT310 has good sensitivity and stable performance.Especially, VT310 is well designed to work with our webbased tracking system, which is suitable for a company to establish a tracking server to provide realtime tracking solutions to their customer or manage their fleet.It is a fully function tracker that supports fuel sensor and voice prompt functions and has strong expansibility and customization ability. Application
* For vehicle tracking and security
* Vehicle Tracking & Security
* Fleet Management
* Equipment Security
* Asset
* RFID alarm(optional)
Specification | Technical Parameters: |
| Power Supply | +9V - +35V / 1.5A |
| Backup Battery | 850mAh |
| Dimension | 104mm x 62mm x 24mm |
| Installation Dimension | 104mm x 83mm x 24mm |
| Weight | 150g |
| Operating temperature | -20° to 65° C |
| Humidity | 5% to 95% Non-condensing |
| Frequency | GSM 900/1800/1900Mhz or GSM 850/900/1800/1900Mhz |
| GPS Module | latest GPS SIRF-Star III chipset |
| GPS Sensitivity | -158Db |
| GPS Frequency | L1, 1575.42 MHz |
| C/A Code | 1.023 MHz chip rate |
| Channels | 20 channel all-in-view tracking |
| Position Accuracy | 10 meters, 2D RMS |
| Velocity Accuracy | 0.1 m/s |
| Time Accuracy | 1 us synchronized to GPS time |
| Default datum | WGS-84 |
| Reacquisition | 0.1 sec., average |
| Hot start | 1 sec., average |
| Warm start | 38 sec., average |
| Cold start | 42 sec., average |
| Altitude Limit | 18,000 meters (60,000 feet) max. |
| Velocity Limit | 515 meters/second (1000 knots) max. |
| LED | 2 LED lights to show GPS/GSM working status. |
| Flash Memory | 4MB |
| Interface | 5 digital inputs, 3 negative and 2 positive triggering; 2 analog inputs; 5 outputs. |
| Packing Measures: | |
| Neutral | Dimension (mm) | Weight (KG) | Capacity |
| Box | 225x160x55 | 0.65 | 1 set |
| Carton | 470x340x310 | 14 | 20 sets |
Functions & Features:* Tracking by SMS/GPRS (TCP/UDP)
* Tracking by time/distance interval
* Real time tracking via the web-platform
* Get position location via call/SMS
* Engine on/off detection
* Built-in backup 950 mAh battery
* Remote Engine cut off to stop the car in safe condition
* Wiretapping/remote listening (optional)
* Get location physical name via SMS & from the web-platform
* Google Map link for location via SMS, it shows your location on map via mobile phone.
* Mileage calculation with longitude and latitude via SMS; view mileage data via GPS web-based tracking centre system
* Door open/close status detecting
* Door open/close control
* Built-in motion sensor for power & GPRS flow saving mode (sleep mode)
* Built-in 4MB memory & position logging capacity up to 26,000+ waypoints even no GPRS signal
* I/O: 5 Inputs, 5 Outputs, 2 Analog Inputs.
* Over speed alert
* Geo-fence alert
* Power failure/low power alert
* SOS Panic button, SOS alert
* Accident alarm (need crash sensor support) (optional)
* Can equip with RFID kit for driver identification and auto Arm/Disarm functions (movement/towed alert, ignition alert, auto cut off engine etc) (need RFID support) (optional)
* Analog input for Temperature & Fuel sensor detecting/monitoring, (optional)Picture

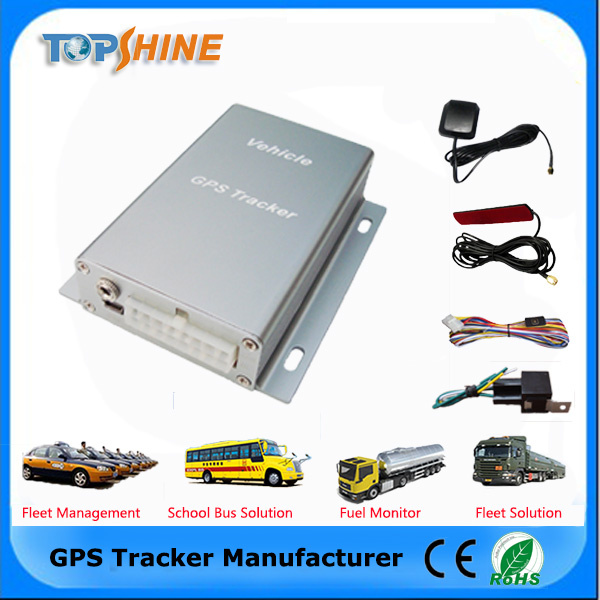

Package and accessoriesVT310 unit -- 1 piece
16-P wire -- 1 piece
Relay -- 1 piece
GSM antenna -- 1 piece
GPS antenna -- 1 piece

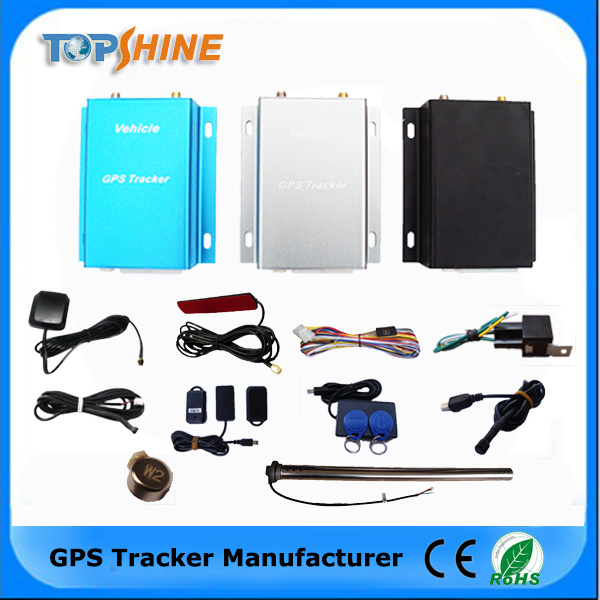

Optional Accessories:* USB cable
* Fuel sensor
* Microphone
* Temperature sensor Welcome to test our free tracking software
PC: www.track-car.com
Mobile Phone: http://www.track-car.com/M
User name: hongkong
Password: 123
Our advantage
* Provide 2 free Tracking Platfrom (PC base & Android APP) lifelong. No charge.
* 2 years warranty
* All of our products have CE & RoHS & SGS certification
* Supply OEM&ODM service.
* Our engineer team could customize your personality tracking platform
* Professioal R&D team provide Customization and after-sale service lifelong .
* 100% made of industrial-grade component,GSM module have certified(CE2200)and with legal IMEI code.
Payment & Shipment:
Payment Term: PayPal /western union /TT
Shipping Term: DHL /Fedex /TNT /ARAMEX/EMX
Lead time: Samples within 1 days of delivery.bulk production within 5-7days of delivery.

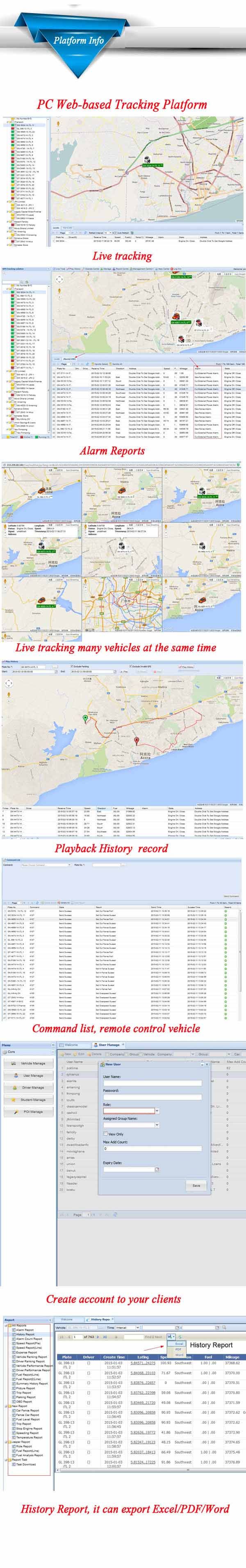

GPS tracking platform information
