Long Rod Composite Insulator for Transmission Lines

Name: Long Rod Composite Insulator for Transmission Lines
Brand: all-electronics-online.com
SKU: 835219635
Availability: InStock
Rating: 4.9 (114 reviews)

Price:	US $ 10-200/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

1) We offer high quality dead end composite insulators and long rod insulators according to ANSI standard and IEC standard .

2) The shed colour can be light gray or red.

3) The dead end insulators voltage class can be 15kv, 28kv, 35kv, 46kv, 69kv. specified mechanical load from 60 kN upto 90kN.

4) The long rod insulators can be made up to 750 kV 240kN. and the related goods type tested in independant Lab.

The high quality will make you satisfied.

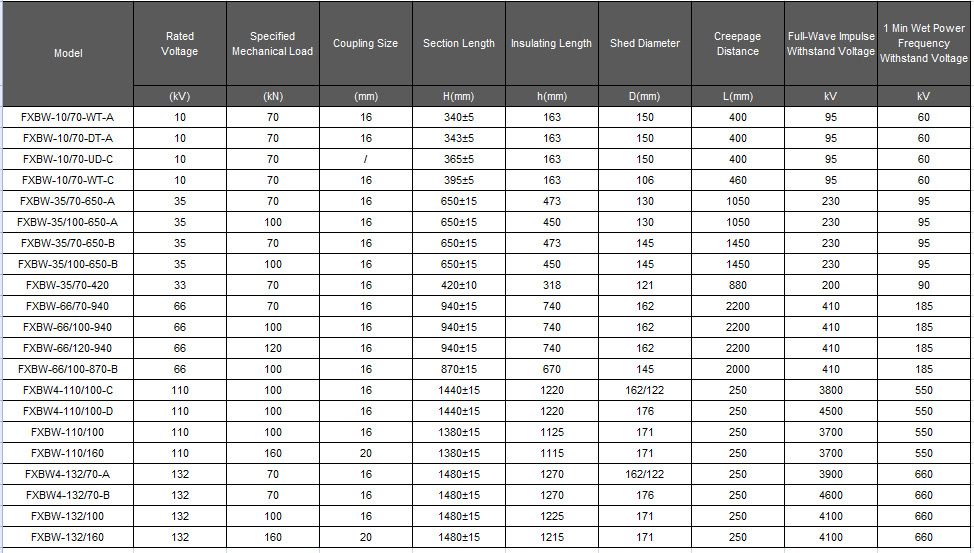

Prod Model:	300kV
Rated Voltage:	10-800kv
Specified Mechanical Load:	70-550kn
Coupling Size:	16
Connection Type:	Ball & Socket
Application:	Low-voltage
Material:	Composite Polymer
Structure:	Suspension Insulator
Type:	B Type Insulator
Connection Method:	Ball&Socket
Color:	Grey
Brand:	Hivolt
