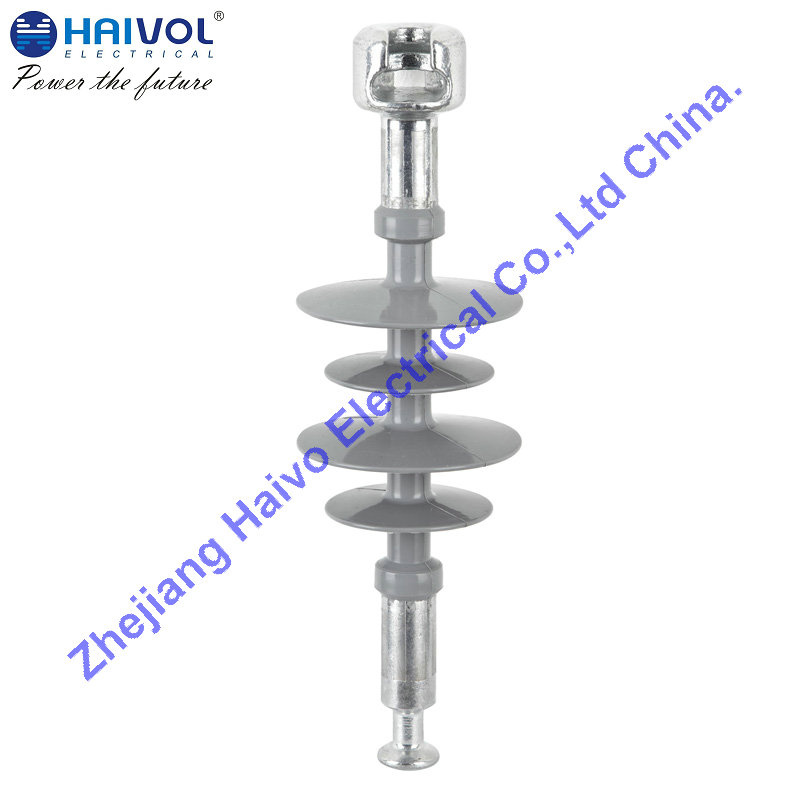

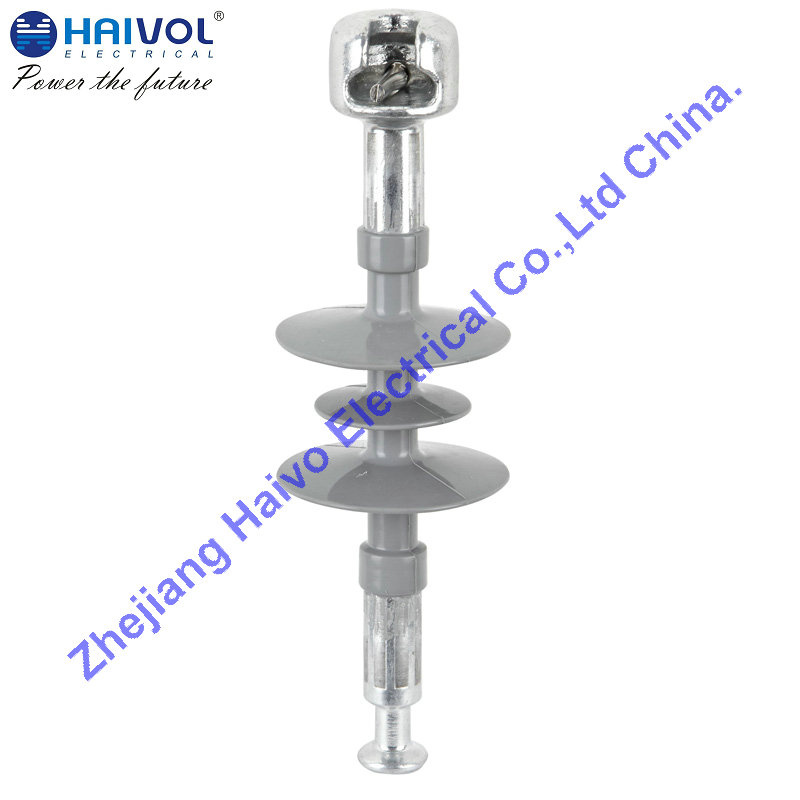

Long Rod Composite Insulator Series

Name: Long Rod Composite Insulator Series
Brand: all-electronics-online.com
SKU: 400018388
Availability: InStock
Rating: 4.7 (81 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Long Rod Composite Insulators are mainly used in high voltage overhead power transmission & distribution lines for insulation and mechanical connection.

Normal Operation Conditions:
1 Ambient temperature: -50C-+50C
2 Altitude: not more than 3000m
3 Frequency: not more than 100Hz
Composite Insulator for AC Power Distribution System

Features:
Secure and reliable operation on high mechanical strength.
Compact design and light in weight which is convenient for transportation. Good anti-vibration capability. Good anti-moisture capability.
Good electric performances
Strong anti-pollution falshover ability.
High anti-aging performances which is perfect for utilization under conditions of high altitude.
Easy for maintenance.

Product range:
Long rod polymer insulator up to 500kV.
Polymer pin insulator up to 36kV.
Polymer post insulator up to 252kV.
Line post insulator up to 36kV.

Note: For details, please refer to the catalogue.

Type	Rated voltage(kV)	Specified mechanical load(kN)	Section length(mm)	Min Arc distance(mm)	Leakage distance(mm)	Lightning impulse withstand BIL(kV)	Power frequency withstand (wet) (kV)
FXBW4-12/70	12	70	350	180	400	95	45
FXBW4-24/70	24	70	550	370	850	185	95
FXBW4-24/100	24	100	570	370	850	185	95
FXBW4-35/70	35	70	650	450	1000	230	105
FXBW4-35/100	35	100	670	450	1000	230	105

Prod Model:	FXBW Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Long Rod:	Polymeric
Application:	High-voltage
Material:	Composite Polymer
Structure:	Suspension Insulator
Type:	B Type Insulator
Color:	Gray
Brand:	Haivol

Haivo Electrical Co., Ltd, is a provider of power equipment and services for the global electric utility industry. It mainly manufacture power transmission & distribution equipments, covering many product series as Fuse cutout, Surge arrester, Composite & Porcelain insulator, Disconnector switch & Load Break Switch, Hardware fitting for overhead line, Cable accessories and Cable kits (cold & heat shrinkable cable accessories).

HAIVO ELECTRICAL, As one of the international electrical companies in China, We not only manufacture the power equipment, but also provide sustainable power solutions underpinned by technology innovation. To date, HAIVO conducts business in nearly 50 countries and territories in South America, Europe, Latin America, Asia, Africa, and the Middle East. HAIVO′ S high standards have received due recognition from the local power customers.

HAIVO′ S worldwide operation and sales coverage is backed by exceptional experience and expertise to provide customers with the most reliable and highest quality products and services available.

For the quality control system, HAIVO was successively awarded ISO 9001: 2008 by DAS CERTIFICATION Ltd & UKAS QUALITY MANAGEMENT, and TYPE TEST REPORT by China NATIONAL HIGH VOLTAGE APPARATUS QUALITY SUPERVISION TESTING CENTER(XIHARI) & QUALITY INSPECITION AND TEST CENTER FOR EQUIPMENT OF ELECTRIC POWER.

We promise we will offer first-class quality, reasonable price, first-class service and following the business philosophy of development and innovation to serve global power customers!
