Longjoin NEMA Light Photocontroller Photocell Dimming Receptacle 5pin Socket

Name: Longjoin NEMA Light Photocontroller Photocell Dimming Receptacle 5pin Socket
Brand: all-electronics-online.com
SKU: 836288955
Availability: InStock
Rating: 4.8 (79 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Basic Specification:

Rated Voltage	0~480VAC
Loading Capacity	AWG#14: 15Amp max. / AWG#16: 10Amp max.
Ambient Temperature	-40ºC ~ +70ºC
Rated Frequency	50/60Hz
Voltage	500V

Product pictures:

JL-240 series photocontrol receptacles were designed for the lanterns those intended to have an
ANSI C136.10-2006 receptacle to fit a twist-lock photocontrol. This series conform newly published ANSI
C136.41-2013 to allow a LED lamp multi-controlled through the receptacle.

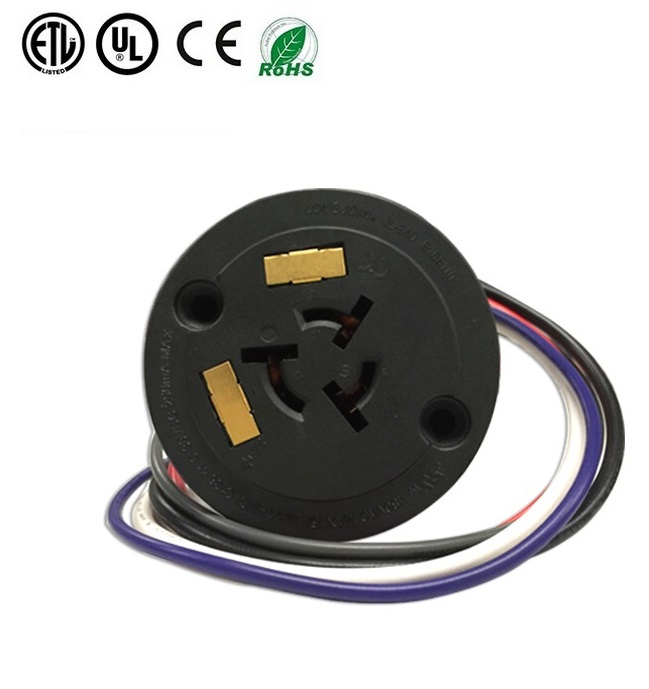

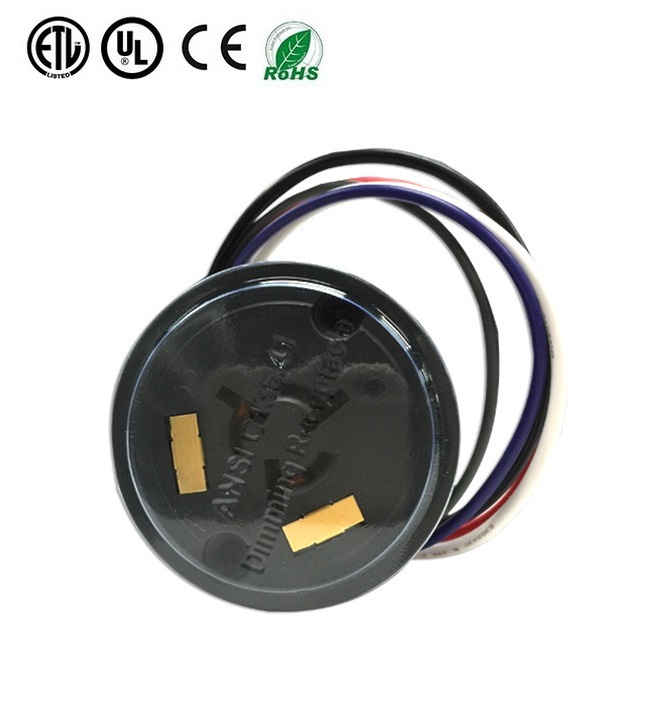

This series offers 2 or 4 gold-plated low voltage pads on the top surface to fit photocontrol has ANSI

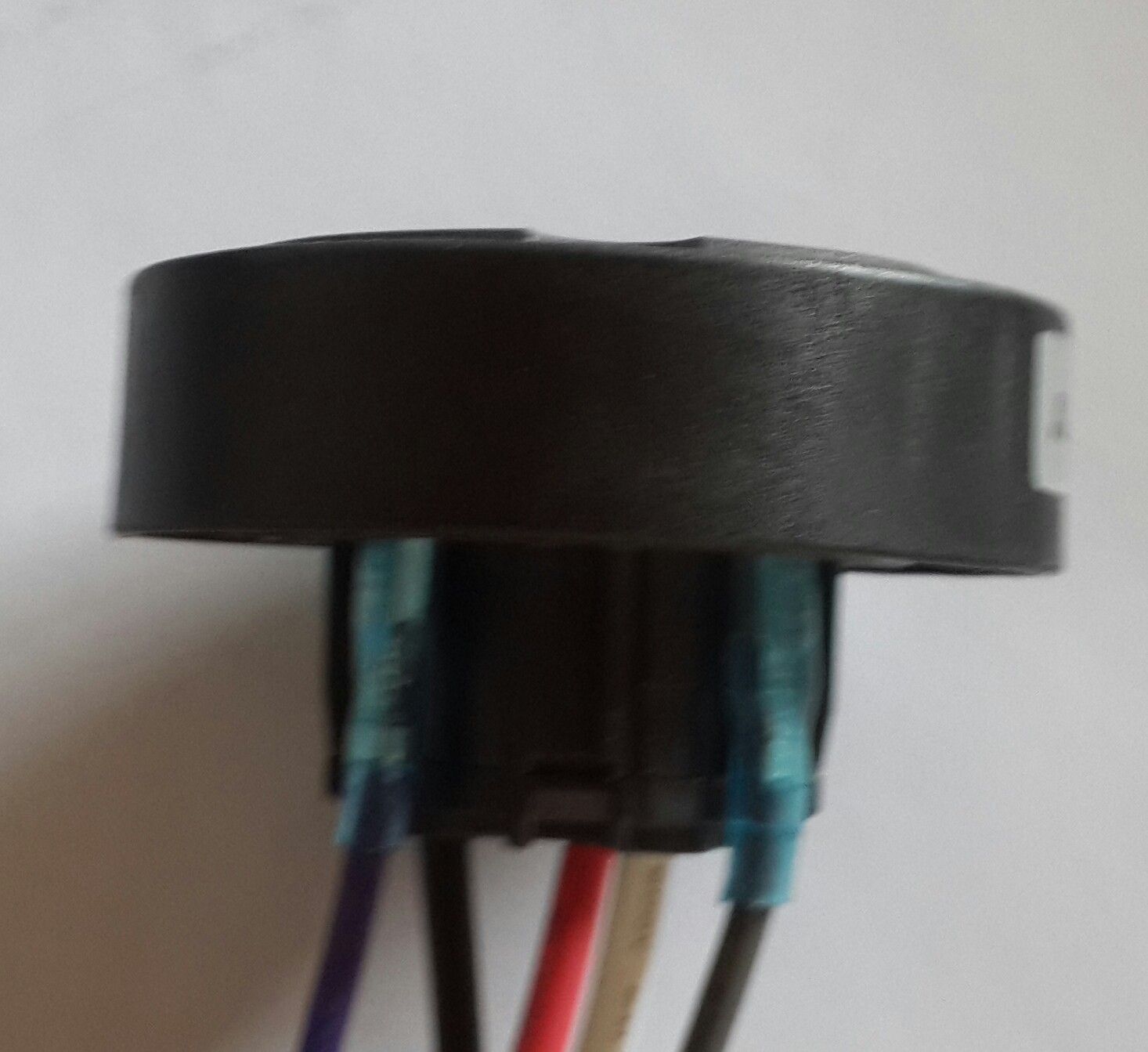

C136.41 conforming spring contacts, and offers male quick connectors at rear back for signal connection.
This series also offers 360 degree rotation limiting feature to conform ANSI C136.10 requirements.
Both JL-240X and JL-240Y have been recognized, and JL-200Z14 has been listed by UL to applicable US
and Canadian safety standards, under their file E188110, Vol.1 & Vol.2.

Item No.	JL-240X/JL-240Y/JL-240Z14
Applicable Volt Range	0~480VAC
Rated Frequency	50/60Hz
Power Loading	AWG#14: 15Amp max. / AWG#16: 10Amp max.
Optional Signal Loading	AWG#18: 30VDC, 0.25Amp max.
Ambient Temperature	-40ºC ~ +70ºC
Overall Dimensions (mm)	65Dia.x 40 65Dia.x 67
Accessory: Rear Cover	°R option ° °R option
Spring Holder	- ° -
Wall mount Back Cover	- - °
Lock Nut	- - °
Wall Mount Bracket	- - °30x(70+130)
Leads	6" Min. (See Ordering Information)

Installation:

Disconnect power; wire the receptacle according
to the diagram in right hand. An arrow indicating NORTH on the top of the receptacle is used to
assist correct direction. Push the photocontroller on and twist it clockwise to lock it into the receptacle.
Adjust the receptacle position if necessary.

JL-240Y series supports tool-free rotation.
JL-240Z series supports Wall-mount and rotation.

Prod Model:	240-5
Type:	Automatic Switch Socket
Feature:	Twist Lock Socket
