Low Speed Reduction Ratio High Torque 10mm Metal Geared Motor

Name: Low Speed Reduction Ratio High Torque 10mm Metal Geared Motor
Brand: all-electronics-online.com
SKU: 771541605
Availability: InStock
Rating: 4.6 (122 reviews)

Price:	US $ 8-11.5/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	ZWBMD010010-249
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	3V
Gearbox Diameter:	10mm
No Load Speed:	66 Rpm
No Load Current:	80 Ma(Max)
Load Speed:	58 Rpm
Load Current:	220 Ma(Max)
Load Torque:	158 Gf.Cm
Max Rated Torque:	2000 Gf.Cm
Gear Ratio:	864:1
Motor Type:	Reduction Geared Motor
Application:	Power Tools
Operating Speed:	Low Speed
Structure And Working Principle:	Brush
Excitation Mode:	Permanent Magnet
Casing Protection:	Drip-Proof
Number Of Poles:	Customize
Type:	Gearbox Motor
Certification:	RoHS
Brand:	Zhaowei

Product Description

Low speed reduction ratio high torque 10mm metal geared motor

Product Description

1)Specifications:

Model: ZWBMD010010-249
Rated Voltage: 3.0 V
No Load Speed: 66 rpm
No Load Current: 80 mA MAX
Rated Load Speed: 58 rpm
Rated Load Current: 220 mA MAX
Rated Load Torque: 158 gf.cm
Max Rated Torque of Gear Box: 2,000 gf.cm
Max Instant Torque of Gear Box: 6,000 gf.cm
Overall Length L: 34.0 mm
Gear Box Length L1: 19.0 mm

Model	Typical Application Parameters								Max Rated Torque of Gear Box	Max Instant Torque of Gear Box	Gear Ratio	Gear Box Length L1
	Rated	At No Load		At Rated Load				Overall Length L
	Voltage	Speed	Current	Speed	Current	Torque		Overall Length L
	VDC	rpm	mA(MAX)	rpm	mA(MAX)	gf.cm	mN.m	mm	gf.cm	gf.cm		mm
ZWBMD010010-19	3.0	909	70	763	215	24	2.4	27.8	2000	6000	19	12.8
ZWBMD010010-28	3.0	617	70	518	215	36	3.5	27.8	2000	6000	28	12.8
ZWBMD010010-46	3.0	375	80	315	215	39	3.8	30.9	2000	6000	46	15.9
ZWBMD010010-69	3.0	250	80	210	215	58	5.7		2000	6000	69
ZWBMD010010-102	3.0	169	80	142	215	86	8.4		2000	6000	102
ZWBMD010010-151	3.0	114	80	96	215	127	12.5		2000	6000	151
ZWBMD010010-168	3.0	98	80	86	220	106	10.4	34	2000	6000	168	19
ZWBMD010010-249	3.0	66	80	58	220	158	15		2000	6000	249
ZWBMD010010-368	3.0	45	80	39	220	233	23		2000	6000	368
ZWBMD010010-546	3.0	30	80	27	220	346	34		2000	6000	546
ZWBMD010010-809	3.0	20	80	18	220	512	50		2000	6000	809

above specifications just for reference and customizable according to requirements.

2)2D Drawing

3)Application

Audio and visual equipments	notebook PC, camcorder, car DVD, kinescope DVD, car CD player, camera, digital camera, headphone stereo, cassette tape recorder and etc.
Household application	electric shaver, tooth brush, kitchen appliances, hair clipper, sewing machines, massager, vibrator, hair dryer, rubdown machine, corn popper, scissor hair machine, vacuum cleaner, garden tool, sanitary ware, window curtain, coffee machine, whisk, intelligent closestool, Sweeping robot and etc.
Office automation equipments	OA equipments, scanners, printers, multifunction machines copy machines, fax, FAX paper cutter, computer peripheral, bank machine, Video conference and etc.
Automotive products	conditioning damper actuator, door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, EPB,Car tail gate electric putter,power liftgate and etc.
Toys and models	radio control model, automatic cruise control, ride-on toy and etc.
Medical equipments	blood pressure meter, breath machine, Medical cleaning pump, Medical bed and etc.
Industrials	display, flow control valves and etc.
Electric power tools	electric drill, screwdriver and etc.
Precision instruments	monitor, optics instruments,automatic vending machine and etc.
cosmetic tool	eyebrow pencil, Electric threading knife,POWER PERFECT PORE, Puff machine,eyebrow tweezers and etc.

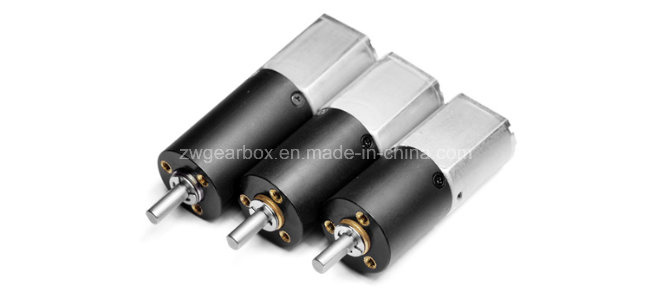

Product details show

Our Services

ODM & OEM
Gearbox design and development
Related technology support

Packaging & Shipping

1) Packing Details

packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing.
Or according to client's requirement.

2) Shipping Details

samples will be shipped within 10 days;
batch order leading time according to the actual situation.

Company Information

Shenzhen Zhaowei Machinery & Electronics Co., Ltd is a national grade high-tech enterprise which professionally specialized in R&D and manufacture high precise gear box reducers. We provide total solution to costomers including transmission gear box design, gear parts and molding design and manufacturer, parts mass production and assembly.

1) Competitive Advantages

18-year experience in manufacturing motor gearbox
Experienced Staff: average 7-year experience in R&D , ODM &OEM
International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949
Competitive Price
High Product Performance: Low noise, High efficiency, Long lifespan
Prompt Delivery: 15 working days after payment
Small Orders Accepted
Advanced equipments: Agie Wire cutting machines, Agie EDM, Makino, EDM, Roders CNC, Sodick and Sumitomo Precision Injection Machines, etc.

2) Main Products

Precise motor gear box reducer: diameter 4-40mm, Output speed: 5-2000rpm, Output torque: 10 gf-cm 50Kgf-cm;
Customized worm and gear transmission machinery;
Precise electromechanical motion module;
Precise component and assembly of plastic and metal powder injection.

Certifications

We Have passed to hold ISO9001, ISO14001 and TS16949.

and more...

FAQ

1. Can you make the gearbox with custom specifications?

YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience.

2.Do you provide the samples?

YES. Our company can provide the samples to you, and the delivery time is about 5-15days according to the specification of gearbox you need.

3.What is your MOQ?

Our MOQ is 2000pcs. But at the beginning of our business, we accept small order.

4. Do you have the item in stock?

I am sorry we donot have the item in stock, All products are made with orders.

5. Do you provide technology support?

YES. Our company have strong R&D capability, we can provide technology support if you need.

6.How to ship to us?

We will ship the goods to you according to the DHL or UPS or FEDEX etc account you provide.

7.How to pay the money?

We accept T/T in advance. Also we have different bank account for receiving money, like US dollors or RMB etc.

8. How can I know the product is suitable for me?

Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.

9. Can I come to your company to visit?

YES, you can come to our company to visit at anytime, and welcome to visit our company.

10. How do contact us ?

Please send an inquiry .

Shenzhen ZHAOWEI Machinery & Electronics Co., Ltd was established in 1997, which is State High-Tech enterprise for gear transmission design and manufacturing. We provide the total drive solution for customers from design, tooling fabrication, components manufacturing and assembly.

Main Products

The products are widely used in Automobile, industry equipment, Smart Home, Medical device, standard gearbox etc.

ZHAOWEI has 165 Sumitomo injection machines and 35 automatic production lines. Most of machines come from overseas such as AGIE wire cutting machine, AGIE EDM, MAKINO, FANUC, RODERS CNC. The company focus on three divisions "components manufacturing center", "precise tooling" and "Transmission Module" with more than 1000 employee.

ZHAOWEI specialized in precise injection components and precise transmission system with the quality certification ISO9001, TS 16949 and has been awarded with "State High-Tech Enterprise" in 2013. The company pay more attention on R & D and got more than 40 patents. 4G antenna E-tilt mechanism, Smart Home Device, Intelligent robot drive module self-developed reached the international technical level. ZHAOWEI has established the long term Strategy partnership with HUAWEI, BOSCH, etc. New Plant project has been started in Huizhou City that will helpful to foster ZHAOWEI business and meet the globalization development needs.
