Product Description

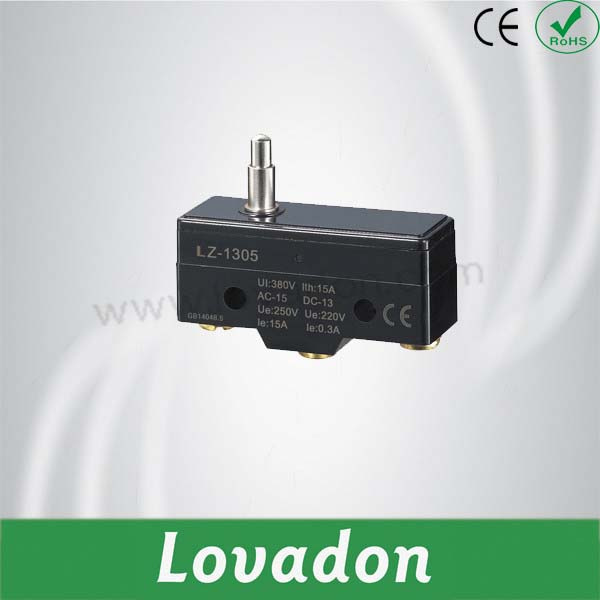

LZ Series Micro Switch
* Virous of actuators,action position is adjustable (such as LZ1701).
* High switch on and off capacity (15A).
* High accuracy.
* Wide range of operation speed.
| Models | OF Max. | RF Min. | PT Max. | OT Min. | MD Max. | FP Max. | OP mm | Weight kg |
| LZ1300 | 350g | 114g | 0.4mm | 0.13mm | 0.05mm | | 15.9+-0.4 | 0.033 |
| LZ1301 | 300g | 50g | 4mm | 1.6mm | 1.3mm | 20.6mm | 17.4+-0.8 | 0.035 |
| LZ1303 | 300g | 50g | 4mm | 1.6mm | 1.3mm | 31.8mm | 28.6+-0.8 | 0.039 |
| LZ1305 | 350g | 114g | 0.4mm | 1.6mm | 0.05mm | | 28.2+-0.5 | 0.034 |
| LZ1306 | 350g | 114g | 0.4mm | 1.6mm | 0.05mm | | 21.5+-0.5 | 0.038 |
| LZ1307 | 350g | 114g | 0.4mm | 5.5mm | 0.05mm | | 21.8+-0.8 | 0.051 |
| LZ1308 | 350g | 114g | 0.4mm | 3.58mm | 0.05mm | | 33.4+-1.2 | 0.058 |
| LZ1309 | 350g | 114g | 0.4mm | 3.58mm | 0.05mm | | 33.4+-1.2 | 0.058 |
| LZ1701 | 70g | 14g | 10mm | 5.6mm | 1.27mm | 28.2mm | 19+-0.8 | 0.037 |
| LZ1702 | 160g | 28g | 5mm | 2mm | 1mm | 24.8mm | 19+-0.4 | 0.036 |
| LZ1703 | 100g | 22g | 7.1mm | 4mm | 1.02mm | 36.5mm | 30.2+-0.8 | 0.041 |
| LZ1704 | 160g | 42g | 2.7mm | 2.4mm | 0.5mm | 32.5mm | 30.2+-0.4 | 0.034 |
| LZ1705 | 10g | 3g | 20mm | 5.6mm | 3mm | | 19+-0.8 | 0.036 |
| LZ1743 | 160g | 42g | 2.7mm | 2.4mm | 0.5mm | 43.6mm | 43.1+-0.8 | 0.04 |
Characteristics Of Contact Module
| Rated operating characteristics | Inductive load: ~AC15, B300 ( Ue=240V, Ie=1.5A) --DC-13,R300( Ue=250V, Ie=0.1A)
Resistive load: 250V , 5A |
| Rated insulation voltage | Ui=500V, Class of pollution is 3,comply with IEC 60947-1
Ui=300V, comply with UL508, CSA C22-2n°14 |
| Insulation sistance | 100MΩ above (megohmmeter of 500VDC) |
| Operating equency | Mechanical: maximum 240 times/min.
Electrical: maximum 20 times/min. |
| Electrical life | 500,000 times |
| Contact resistance | Less than 15MΩ (initial value) |
Environmental Characteristics
| Normative reference | Product | IEC60947-5-1, EN60947-5-1, UL508, CSAC22-2N°14 |
| Components | IEC60204-1,EN60204-1 |
| Ambient temperature | Operation | -25~+80ºC |
| Storage | -40~+80ºC |
| Vibration resistance | Comply with IEC60068-2-6 | 10-55Hz complex amplitude 1.5mm, misoperationwithin 1ms (in state of FP, TTP) |
| Shock resistance | | Maximum 300m/s^2, misoperation within 1ms (in state of FP, TTP) |
| Mechanical life | | 10,000,000 times |
| Operation speed | IEC60068-2-27 | 0.01mm to 1m/sec (lock plug type) |
