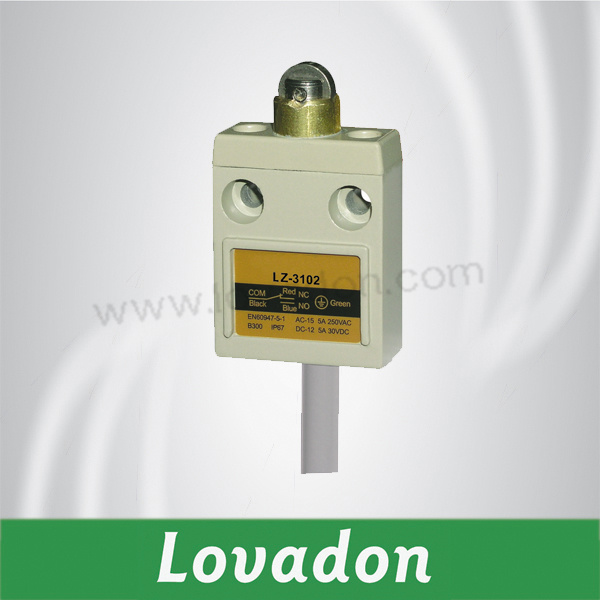

Lz-3102 Series Waterproof Limit Switch

Name: Lz-3102 Series Waterproof Limit Switch
Brand: all-electronics-online.com
SKU: 752981375
Availability: InStock
Rating: 4.5 (83 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Lz-3 Series Waterproof Limit Switch
* Double-loop type Limit switch for multiple applications.
* Rugged aluminum alloy diecast housing.
* Hight mechanical strength
* Oil resistance,Waterproof and dustproof structure

Models	LZ-3101	LZ-3102	LZ-3103	LZ-3104 LZ-3108	LZ-3110	LZ-3111	LZ-3112	LZ-3113	LZ-3169 LZ-3166 LZ-3167
OF Max.	1200gf(11.77N)			580gf (5.69N)	1200gf (11.77N)	1800gf (17.65N)	1800gf (17.65N)	1800gf (17.65N)	150gf (1.47N)
Rf Min.	450gf(4.41N)			150gf (1.47N)	450gf (4.41N)	450gf (4.41N)	450gf (4.41N)	450gf (4.41N)	-
PT Max.	1.8mm			25	1.8mm	1.8mm	1.8mm	1.8mm	15°
OT Min.	3mm			40	3mm	3mm	3mm	3mm	-
MD Max.	0.2mm			3	0.2mm	0.2mm	0.2mm	0.2mm	-
OP	15.7+-1mm	28.5+-1mm	28.5+-1mm	-	28.5+-1mm	24.9+-1mm	34.3+-1mm	34.3+-1mm	-

Ratings

Rated voltage	Non-inductive load				Inductive load
	Resistance Load		Lamp load		Inductive Load		Motor Load
	NC	NO	NC	NO	NC	NO	NC	NO
125 VAC	5(0.1)		1.5	0.7	3		2.5	1.3
250 VAC	3		1	0.5	2		1.5	0.8
8 VDC	5(0.1)		2		5	4	3
14 VDC	5(0.1)		2		4	4	3
30 VDC	4(0.1)		2		3	3	3
125 VDC	0.4		0.05		0.4	0.4	0.05
250 VDC	0.2		0.03		0.2	0.2	0.03
Note: Product with spring,its usable range of operating part is within one third of the whole spring length from the front end of spring.

Characteristics

Rating	5A 125V,3A 250VAC
Operating speed	1mm~1m/s
Operating frequency	Mechanical:120 operations/min.Electrical:30 operations/min.
Contact resistance	15mΩ Max.(initial)
Inslation resistance	100mΩ min. (at 500VDC)
Dielectric strength	1000VAC,50/60 Hz for 1 minute between terminals of the same polarity.
	1500VAC,50/60 Hz for minute between current-carrying and non-current-carrying metal parts.
	1500VAC,50/60 Hz for 1 minute between each terminal and ground.
Vibration Frequency	10 to 55Hz,1.5mm double amplitude.
Shock	Mechanical:Approx.1000m/S^2 (Approx.100G'S) Electrical:Approx.500m/S^2 (Approx.50G'S)
Ambienttemperature	-10ºC~+70ºC(with no icing)
Humidity	<95% RH
Life	Mechanical:10,000,000 operations/min. Electrical:200,000 operations/min.
Weight	Approx.360g(cable length 3m) Approx.540g (cable length 5m)
Degree of protection	IP67

Prod Model:	LZ-3102
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pressing Type:	Spring Roller
Size:	Small-Sized
Breaking Form:	Single Type
Breaking Capacity:	General Type
Brand:	Lovadon
Application:	Manipulation, Control, Signal, Chain
Protection:	Waterproof, Dustproof
