M14 ODU Substitute Plastic Push Pull Female Connector
| Price: |
US $ 2.2-3/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
PKG. M0.4GL. LG |
| Contact Gender: |
Pin(Female) |
| Number Of Contacts: |
4 Position |
| Mounting Style: |
Cable |
| Termination Style: |
PCB/Solder |
| Series: |
1p |
| Contact Plating: |
Gold |
| Panel Mounting Style: |
Panel |
| Company: |
TUV Audited Manufacturer |
| Lead Time: |
in Stock |
Product Description
4 Pins Plastic P series connector-PCB contacts and Solder contacts
PKG,Fixed panle mount receptacle,One Keys(alpha=0)
Series P Plastic connector with the following main features:
1) Small size to accommodate cable diameter up to 6.5 mm and allow up to 14 solder contacts;
2) Lightweight and rugged materials, rapid push-pull locking system;
3) Outshell-POLYCARBONATE (PC), Insulator-PPS, RoHs certified can be sterilized by gas or by steam;
4) The contacts are gold-plated over copper and nickel;
5) Straight and Elbow,PCB and Solder contacts;
6) At least 2000 mating/ unmating cycles without significantly affecting the electrical characteristics;

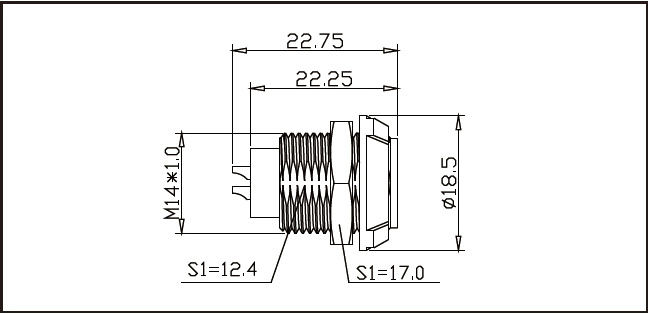

7) A keying system combined with colour coding can be prevention of mismating. Product size:

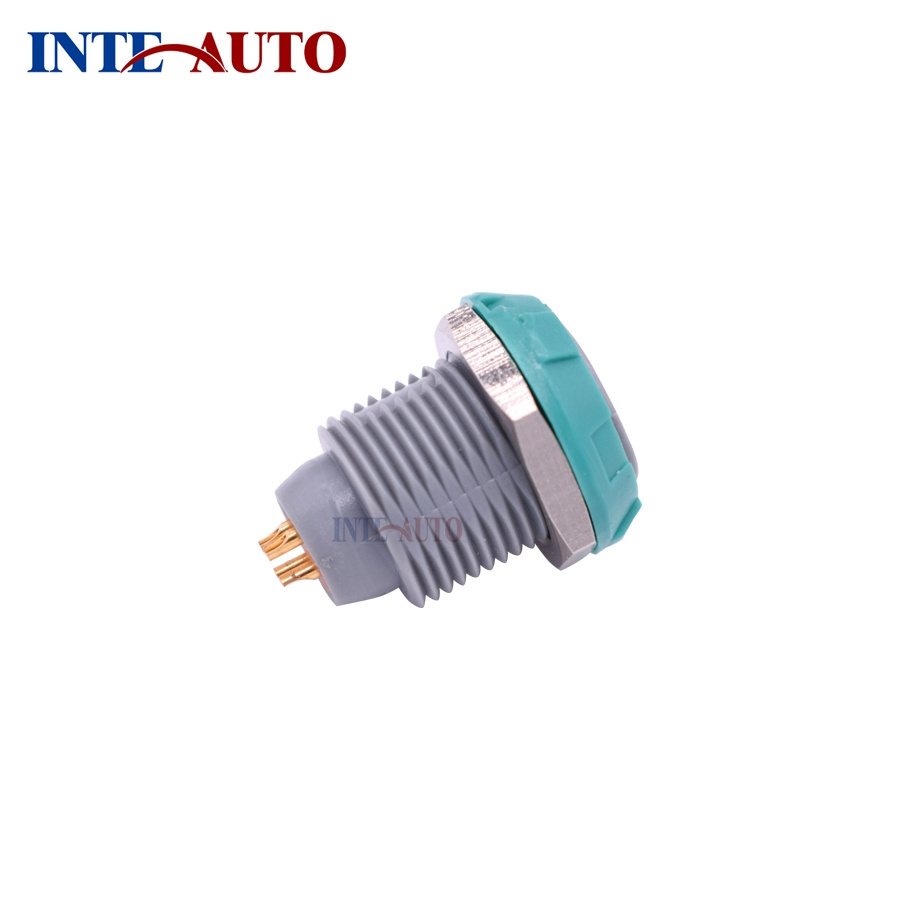

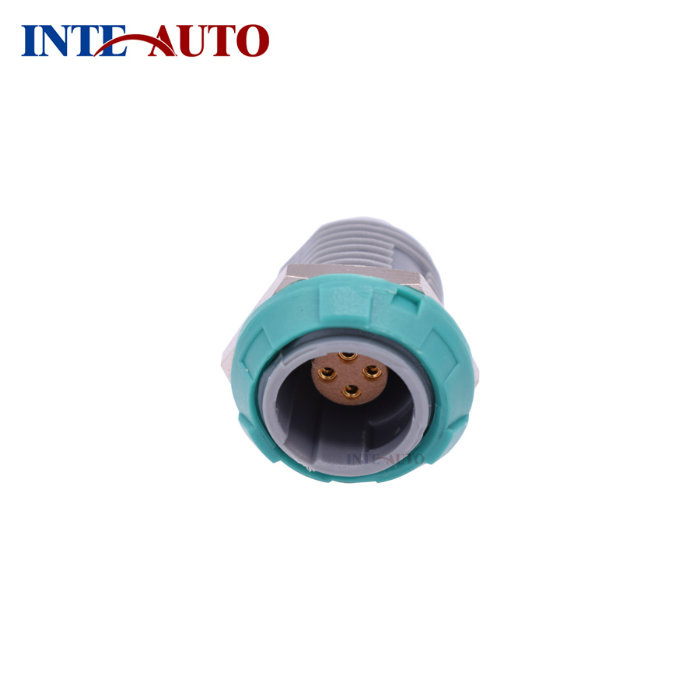

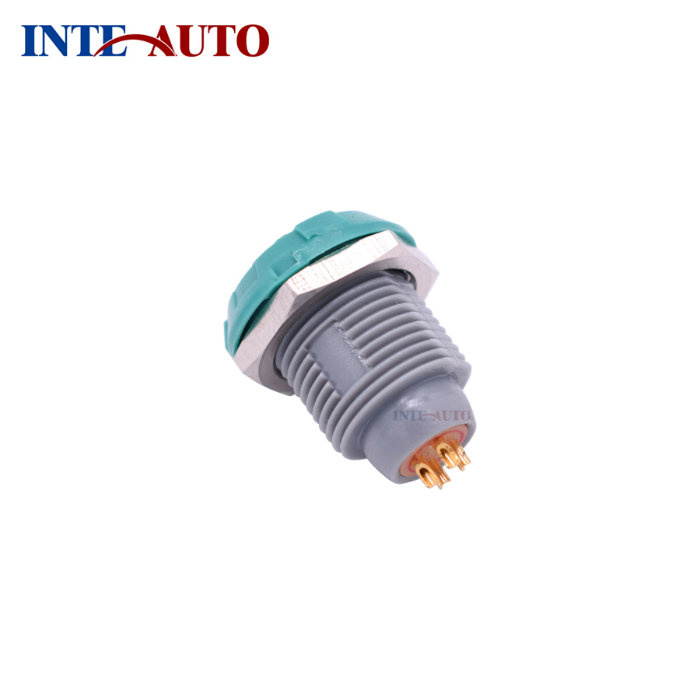

Product Photo Details:

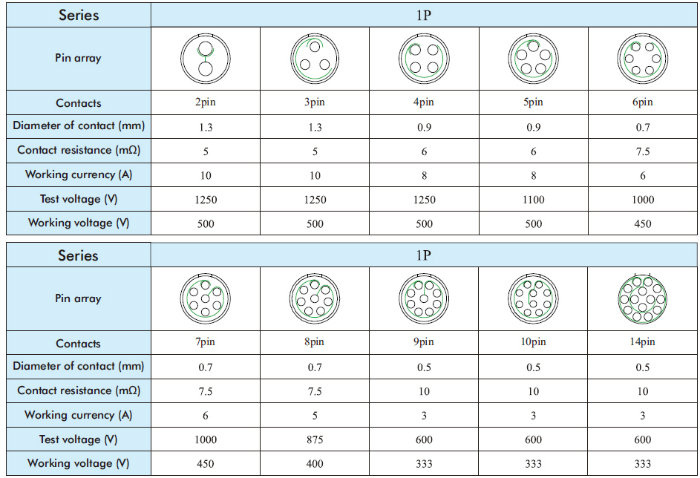

Insulator Specs for P series:

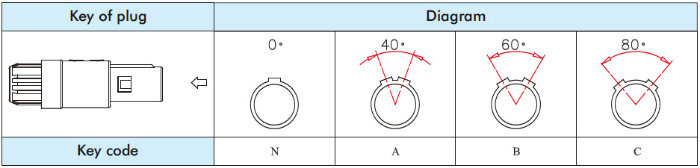

Multiple Key
P series connector:
INTE-AUTO has designed, manufactured and distributed circular plastic Push-Pull connectors; they are especially adapted for applications such as medical electronics and test & measurement. We offer a wide choice of connectors with various contact configurations, multipole contacts and fluidic connectors. In addition, a range of one time use connectors and connectors for mains power is available. The plastic connectors are available in 2 sizes, depending on the cable diameter.
Industry Application:
It has 2,3,4,5,6,7,8,9,10,14pins for your choice, which can widely used in medical ECG equipment, detection systems, test system, instrumentation, endoscopy, computer systems, electronic / mixed coaxial unlimited equipment and so on.
INTEAUTO Certifications &Contact INFO
Over 10 years connector sales experience, PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon.
INTE-AUTO is located in ShenZhen China, dedicate to designing, manufacturing and distributing high performance push-pull connectors and cable assembly solutions. With high efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines, We can supply the same quality as original brand connectors and small customised connectors, our products proved reliability in the most demanding environments because of high quality & good durability.
Products Range:
B series-For Test Equipment, Electronic, Electricity, Medical, Car.
K series-For Outdoor Equipment, Military Equipment.
F series-For Military Equipment, Transportation.
S series-For Audio/Video, Microphone.
E series-For Outdoor Equipment.
P series-For Medical Equipment.
SP series-For LED screen
