Male Plug Solder RF 7/16 DIN Connector for Rg401 Cable
| Price: |
US $ 1.63-2.09/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |

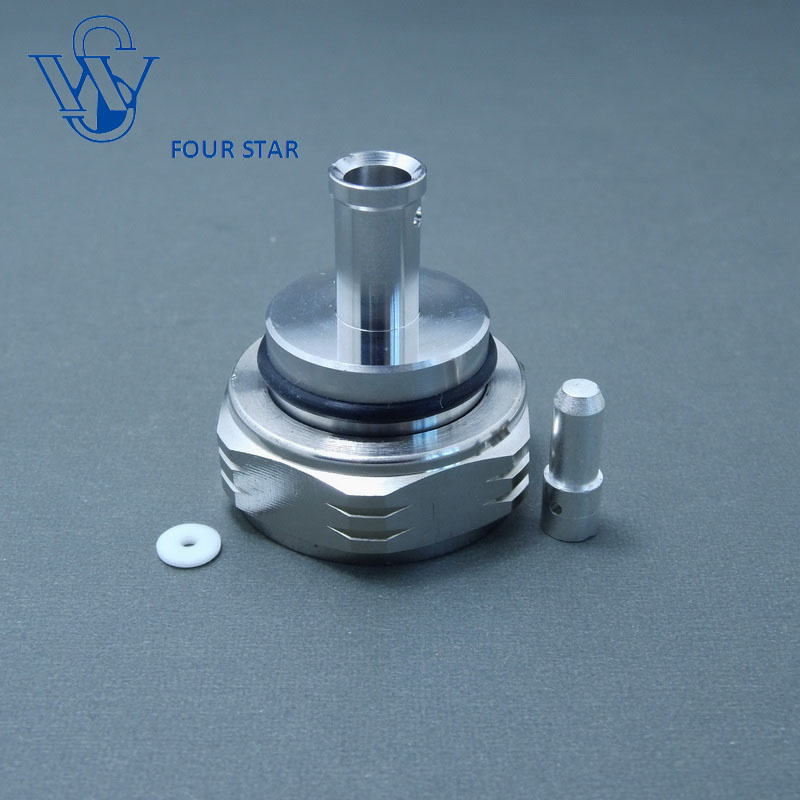

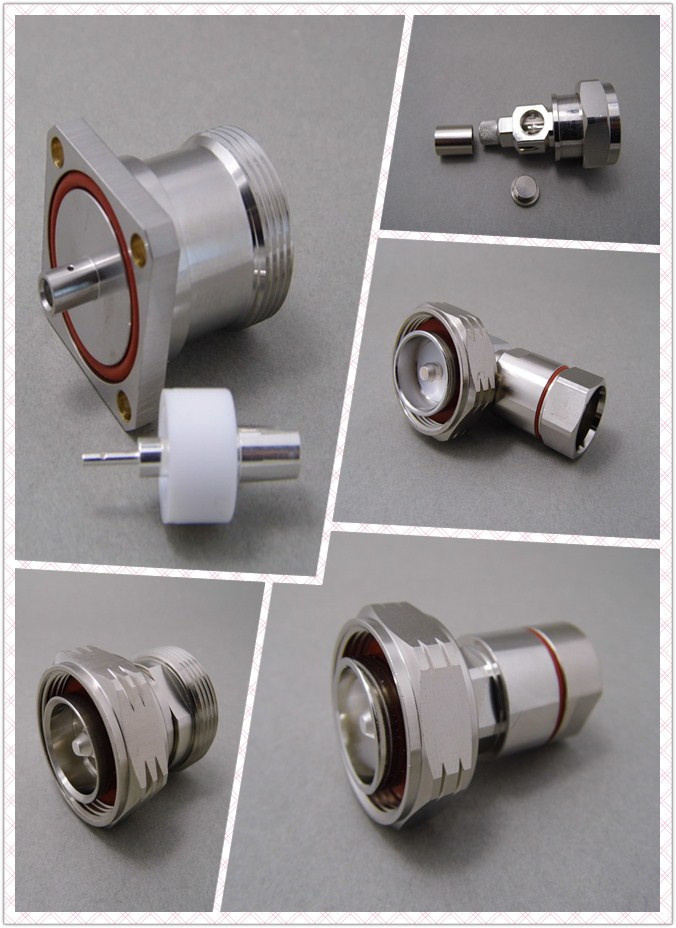

TYPE 7/16(L29) is one kind of thread coupling RF coaxial connector. Characteristic impedance is 50ohm. The characteristic of connector is in big power, low VSWR, less attenuation, low inter-modulation, excellent nature of airtight. They are used in connection with feeder cables in broadcast, Television,ground launch system, monitoring of radar, microwave communication fields etc. Our company manufacturer produces many kinds of jumper lines, which can reduce your cost on cable.| male plug solder rf 7/16 din connector for RG401 cable |
| Model No. | 7/16-JB5 |
| Interface | IEC 60169-4;DIN-47223;CECC-22190 |
| Electrical | |
| Characteristic Impedance | 50ohm |
| Frequency Range | DC-7.5GHz |
| VSWR | ≤1.10@DC-3000MHz |
| 3rd Order IM (PIM3) | ≤ -155dBc@2×20W |
| Dielectric Withstanding Voltage | ≥4000V RMS,50Hz,at sea level |
| Dielectric Resistance | ≥10000MΩ |
| Contact Resistance | Center Contact ≤0.4mΩ | Outer Contact ≤1 mΩ |
| Mating | M29*1.5 threaded coupling |
| Mechanical | |
| Durability | Mating cycles ≥500 |
| Material and Plating | | |
| Parts Name | Material | Plating |
| Body | Brass | Tri-Alloy(CuZnSn) |
| Insulator | PTFE | - |
| Inner Conductor | Phosphor Bronze | Ag |
| Coupling Nut | Brass | Tri-Alloy(CuZnSn) |
| Gasket | Silicone Rubber | - |
| Ferrule | - | - |
| Environmental | | |
| Operating Temperature | -45 ºC-85 ºC |
| Weatherproof Rate | IP67 |
| RoHs (2002/95/EC) | Compliant by exemption |
| Suitable Cable Family | RG401 |
