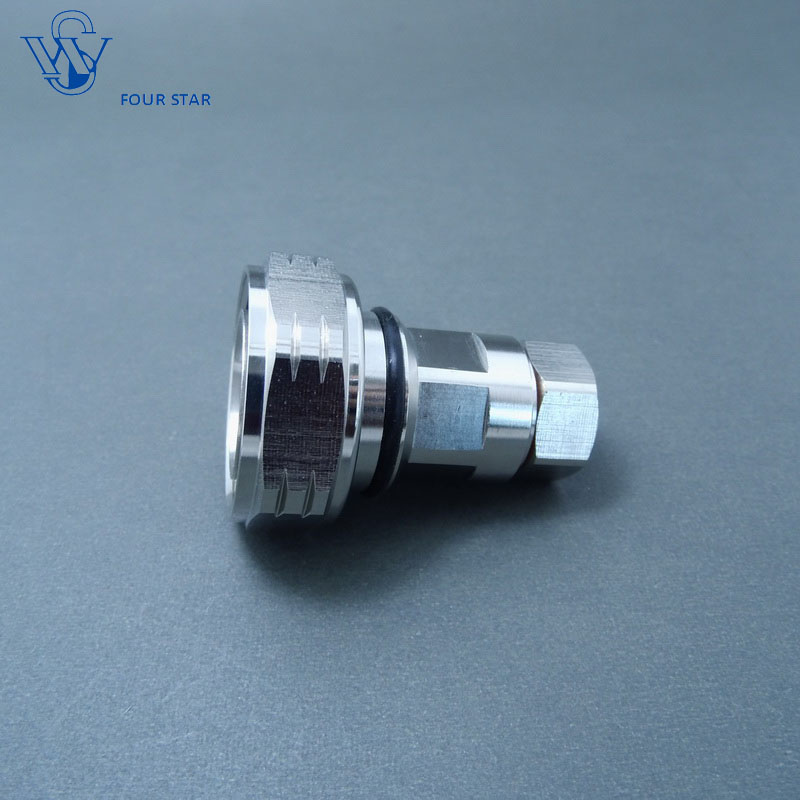

RF Coaxial 7/16 DIN Male Plug Clamp Connector for 1/2" Superflexible Cable
| Price: |
US $ 1.67-1.97/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
TYPE 7/16(L29) is one kind of thread coupling RF coaxial connector. Characteristic impedance is 50ohm. The characteristic of connector is in big power, low VSWR, less attenuation, low inter-modulation, excellent nature of airtight. They are used in connection with feeder cables in broadcast, Television,ground launch system, monitoring of radar, microwave communication fields etc. Our company manufacturer produces many kinds of jumper lines, which can reduce your cost on cable.| 7/16 Din Male Connector For 1/2" Superflexible Cable |
| Model No. | 7/16-J1/2S-B |
| Interface | IEC 60169-4;DIN-47223;CECC-22190 |
| Electrical | |
| Characteristic Impedance | 50ohm |
| Frequency Range | DC-7.5GHz |
| VSWR | ≤1.20@DC-3000MHz |
| 3rd Order IM (PIM3) | ≤ -155dBc@2×20W |
| Dielectric Withstanding Voltage | ≥4000V RMS,50Hz,at sea level |
| Dielectric Resistance | ≥10000MΩ |
| Contact Resistance | Center Contact ≤0.4mΩ | Outer Contact ≤1 mΩ |
| Mating | M29*1.5 threaded coupling |
| Mechanical | |
| Durability | Mating cycles ≥500 |
| Material and Plating | | |
| Parts Name | Material | Plating |
| Body | Brass | Tri-Metal(CuZnSn) |
| Insulator | PTFE | - |
| Inner Conductor | Phosphor Bronze | Ag |
| Coupling Nut | Brass | Ni |
| Gasket | Silicone Rubber | - |
| Cable Clamp | Brass | Ni |
| Ferrule | - | - |
| Environmental | |
| Operating Temperature | -45 ºC to 85 ºC |
| Weatherproof Rate | IP67 |
| RoHs (2002/95/EC) | Compliant by exemption |
| Suitable Cable Family | Andrew Cable P/N FSJ4-50B and RFS Cable P/N:SCF12-50 |
| Prod Model: |
7/16-J1/2S-B |
| Type: |
Generally Coaxial Connector |
| Coupling Mechanism: |
Clamping Type |
| Application: |
RF |
| Interface Type: |
7/16 |
| VSWR: |
1.20:1 |
| Brand: |
Four Star |

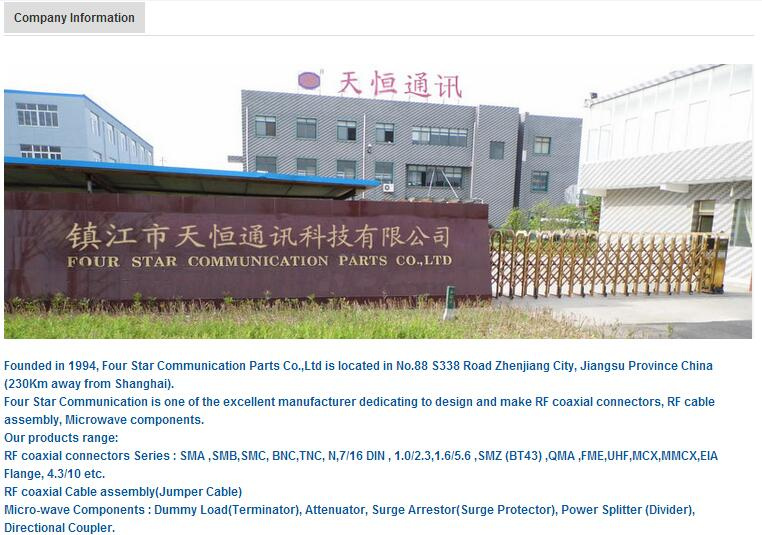

Founded in 1994, Four Star Communication Parts Co., Ltd (Originally named Four Star Electronics Co. Ltd) is No. 88 S338 Road Zhenjiang City Jiangsu Province China (220Km away from Shanghai). Four Star Communication is one of the excellent manufacturer dedicating to supply RF coaxial connectors, RF cable assembly, Microwave components and installation accessories of mobile base stations. Our products are widely used by Telecom Equipment manufacturer, Telecom operator and antenna manufacturer and are sold to Asia, North America, Middle East, Australia, south America.
