RF Coaxial N Male Plug Clamp Connector for 1/2" Foam Feeder Cable
| Price: |
US $ 0.69-1.15/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
TYPE N is a kind of low to medium power connectors with screw coupling. Characteristic impedance has two types: 50ohm and 75ohm. The characteristic of connector is high reliability, great vibration performance, excellent mechanical and electrical performance etc. They are used in connection with RF coaxial cable in radio instrument, communication equipment, microwave test and ground launch system at vibration and inclement weather circumstance. By using semi-rigid or semi-flex cable, this type will gain smaller VSWR, and the frequency can by up to 11GHZ.| N male clamp connector for 1/2" Foam Feeder cable |
| Model No. | N-J1/2LF-H |
| Interface | IEC 60169-16 |
| Electrical | |
| Characteristic Impedance | 50ohm |
| Frequency Range | DC-11GHz |
| VSWR | ≤1.10@DC-3GHz |
| Intermodulation 3rd (PIM3) | ≤ -155dBc@2×20W |
| Working Vlotage | 1500V RMS,50Hz,at sea level |
| Dielectric Withstanding Voltage | ≥2500V RMS,50Hz,at sea level |
| Dielectric Resistance | ≥5000MΩ |
| Contact Resistance | Center Contact ≤1mΩ | Outer Contact ≤0.25 mΩ |
| Mechanical | |
| Durability | Mating cycles ≥500 |
| Material and Plating | | |
| Parts Name | Material | Plating |
| Body | Brass | Tri-alloy |
| Insulator | PTFE | - |
| Center Conductor | Phosphor Bronze | Ag |
| Coupling Nut | Brass | Ni |
| Press ring | Brass | Ag |
| Gasket | Silicone Rubber | - |
| Cable Clamp | Brass | Ni |
| Environmental | | |
| Temperature Range | -40 ºC-85 ºC |
| Weatherproof Rate | IP68 |
| RoHs Compliant | Yes |

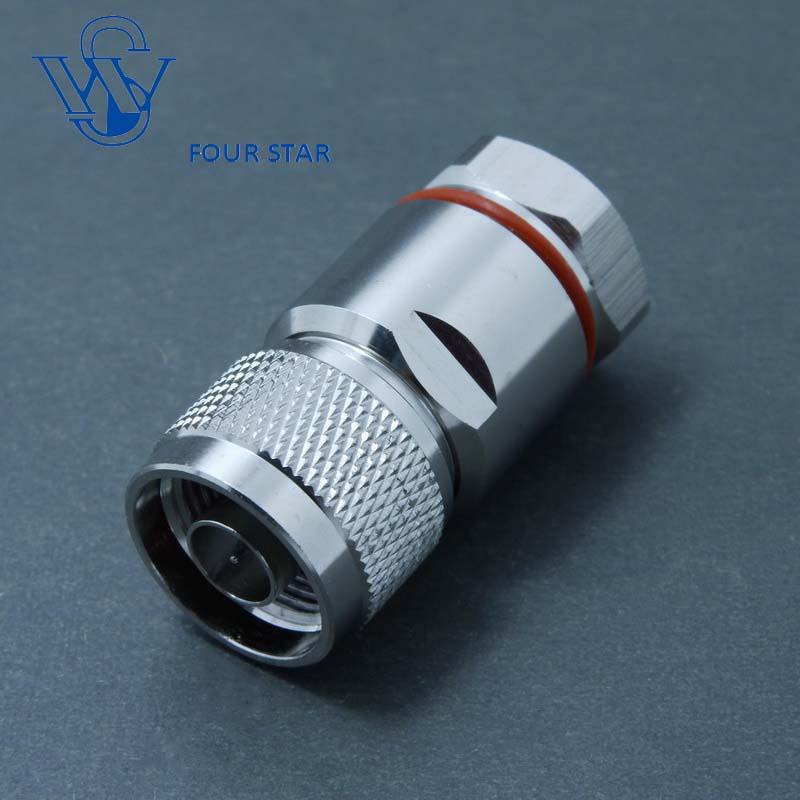

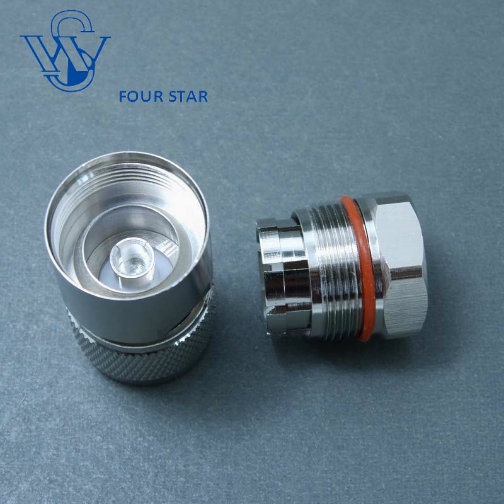

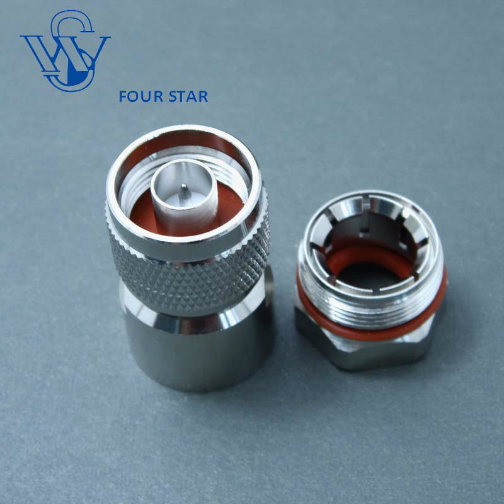

Pictures show:
Company Information:
Founded in 1994, Four Star Communication Parts Co.,Ltd is located in No.88 S338 Road Zhenjiang City, Jiangsu Province China (230Km away from Shanghai). Four Star Communication is one of the excellent manufacturer dedicating to design and make RF coaxial connectors, RF cable assembly, Microwave components. Our products range:RF coaxial connectors Series : SMA ,SMB,SMC, BNC,TNC, N,7/16 DIN , 1.0/2.3,1.6/5.6 ,SMZ (BT43) ,QMA ,FME,F,UHF,MCX,MMCX,EIA Flange, 4.3/10 etc.RF coaxial Cable assembly(Jumper Cable)Micro-wave Components : Dummy Load(Terminator), Attenuator, Surge Arrestor(Surge Protector), Power Splitter (Divider), Directional Coupler.
| Prod Model: |
N-J1/2LF-H |
| Frequency Range: |
DC-11GHz |
| Type: |
Generally Coaxial Connector |
| Application: |
RF |
| Interface Type: |
N |
| Shape: |
Straight |
| VSWR: |
Max 1.1@DC-3GHz |
| Brand: |
Four Star |

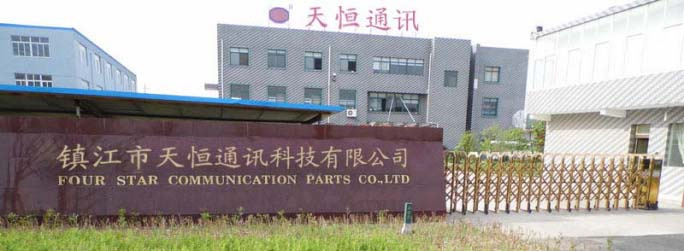

Founded in 1994, Four Star Communication Parts Co., Ltd (Originally named Four Star Electronics Co. Ltd) is No. 88 S338 Road Zhenjiang City Jiangsu Province China (220Km away from Shanghai). Four Star Communication is one of the excellent manufacturer dedicating to supply RF coaxial connectors, RF cable assembly, Microwave components and installation accessories of mobile base stations. Our products are widely used by Telecom Equipment manufacturer, Telecom operator and antenna manufacturer and are sold to Asia, North America, Middle East, Australia, south America.
Four Star Communication has 46 employees and 12000 square meters of manufacturing and office facility.
We are capable of producing over 5 million RF connectors, 1 million RF cable assemblies, and 0.2 millian microwave components(including surge arrestor, terminator, attenuator etc) annually.

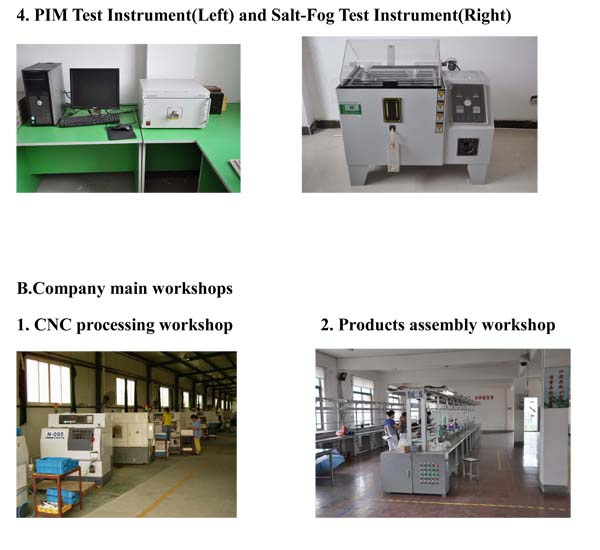

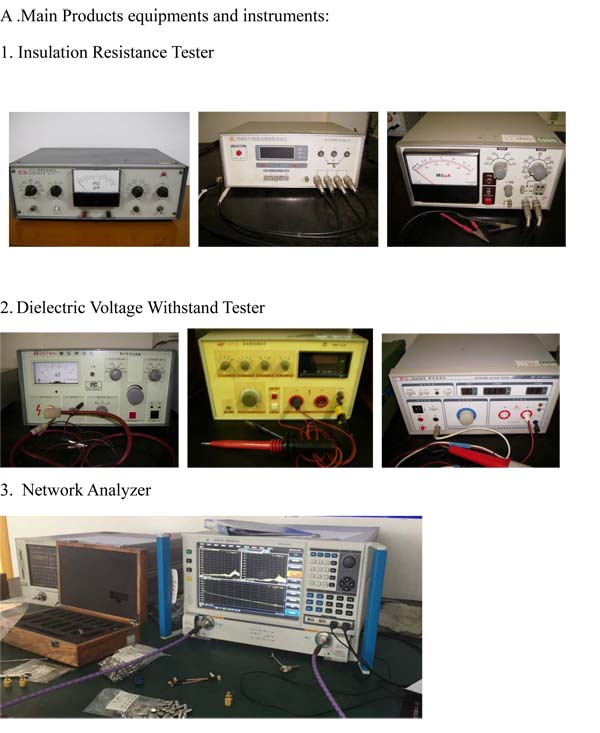

We have strict quality guarantee system and advanced integrated testing equipments which guarantee us to provide excellent products to customers.
Our products range focus on as follows:
1. RF coaxial connectors Series: SMA, SMB, BNC, TNC, N, 7/16 DIN, 1.0/2.3, 1.6/5.6, SMZ (BT43, HDC), UHF (PL259), MCX, MMCX, 4.3/10 Mini DIN, EIA flange etc.
2. RF coaxial cable Jumper (Cable assembly): RG Series coaxial cable Jumper; LMR Series coaxial cable Jumper; Corrugated foam coaxial cable Jumper; JS (FB) Series coaxial cable Jumper; 75ohm Series coaxial cable Jumper; Mini-coaxial cable Jumper etc.
3. Micro-wave Components: Dummy Load(Terminator); Attenuator; Surge Arrestor;
4. Other Communication Parts: Power Splitter, Directional Coupler; Grounding Kits; Cable Clamp.
We are able to offer competence of OEM manufacturing and high flexibility to customized demand with punctual delivery and perfect service. We sincerely Look forward to working with you and make better service and support in the future.
