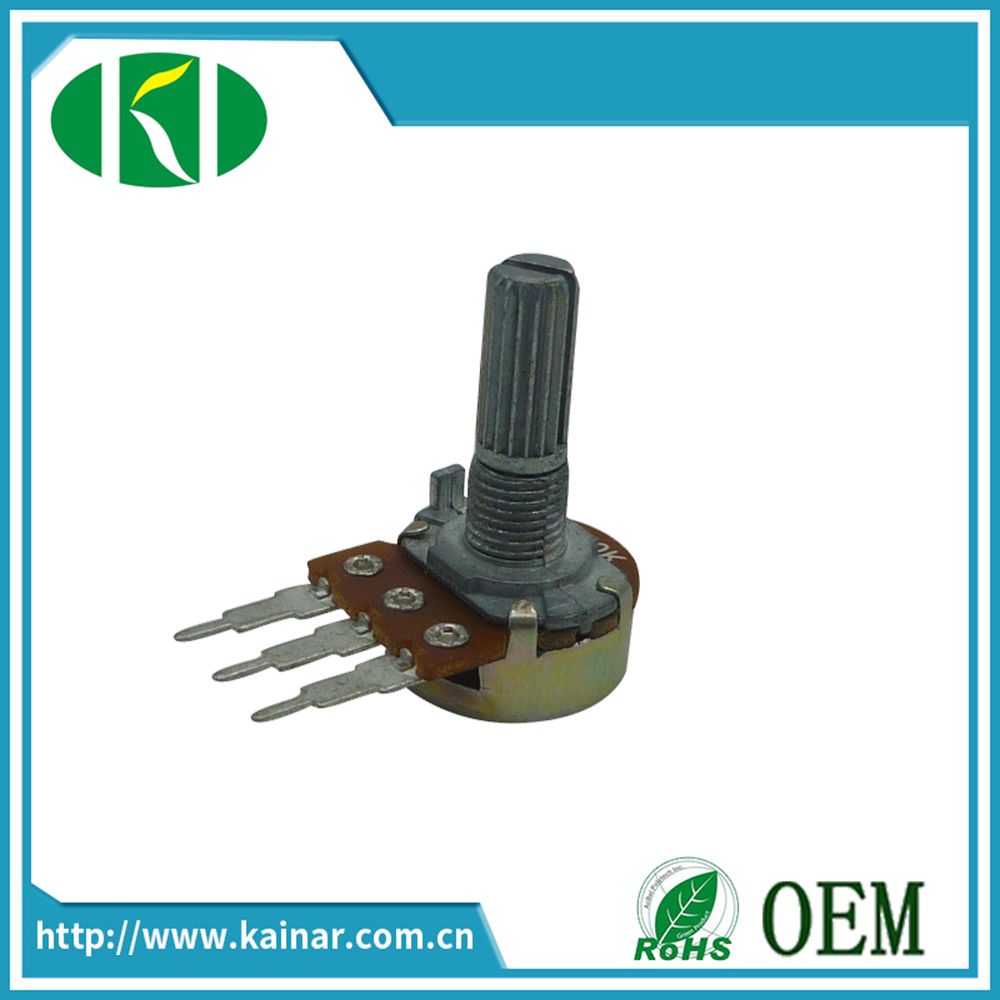

Manufacture Price Precision Potentiometer for Communication

Name: Manufacture Price Precision Potentiometer for Communication
Brand: all-electronics-online.com
SKU: 815567635
Availability: InStock
Rating: 4.7 (139 reviews)

Price:	US $ 0.12/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	WH148-1A-3
Power Rating:	0.125W 0.06W
Rated Voltage:	250V 150V
Tolerance Of Resistance:	±20%
Rotational Noise:	≤47mv
Insulation Resistance:	DC500V 100mohm Min
Withstand Voltage:	AC500V 1minute
Total Rotational Angle:	300±5º
Operating Force:	20-200GF.Cm
Mechanical Endurance:	10000turns Min
Resistance:	Variable Resistor
Installation:	SMD Resistor
Material:	Carbon Film Resistor
Type:	Rotary Potentiometer
Function For Resistance:	Variable Resistor
Package Type:	Carton
Quantity:	Customized
Shape:	Picture
Brand:	Carton

Product Description

ELECTRICAL CHARACTERISTICS

Item	Item	Specification
1.1	Resistance value and tolerance of resistance	K±20%
1.2	Load power	0.1 W
1.3	Rotational noise	47mV max
1.4	Insulation Resistance	>100MΩ At 200V DC
1.5	Withstanding Voltage	>1Minute At 250V AC
1.6	Max rated voltage	50V AC
1.7	Tracking error
1.8	Residual resistance	R1,2<10Ω; R2,3<10Ω

MECHANICAL CHARACTERISTICS

2.1	Dimensions	Refer to the separate product drawing
2.2	Total rotation angle	300±5°
2.3	Effective electrical angle
2.4	Rotational torque	10~50gf.cm
2.5	Shaft Push pull Strength	≥8kgf
2.6	Click slip-out force
2.7	Shaft wobble (mm p-p)	≤0.3mm
2.8	Shaft stop Strength	>5kg.cm
2.9	Shaft wobble (mm p-p)	≤0.3mm
2.10	Rotating life	10,000 cycles

DURABILITY CHARACTERISTICS

3.1	Storage Temperature Range	-30ºC~+80ºC
3.2	Operation Temperature Range	-20ºC~+70ºC
3.3	Soldering Heat Characteristic	260°C/2.5±0.5S

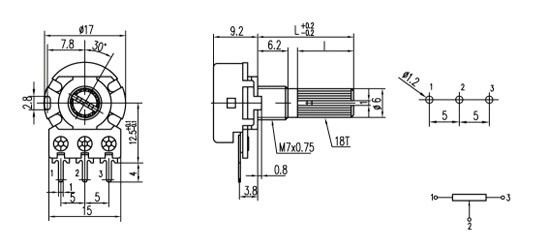

Outline Drawing

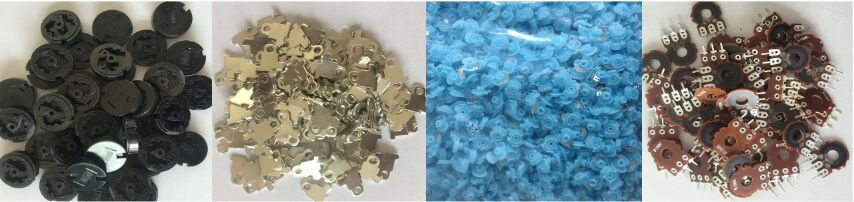

Raw Material

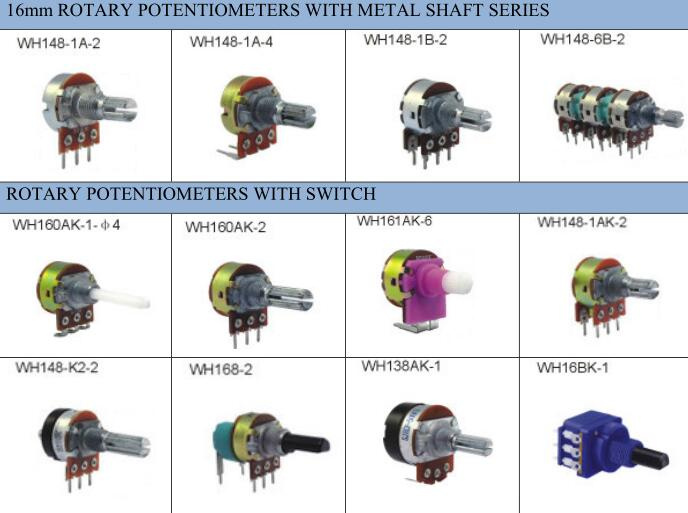

Related Products

Changzhou Kainar Electronic Co., Ltd is an export-typed enterprise in China, Specializing in manufacturing various kinds of potentiometers. Since 1992 our factory was established, it has been well managed and developed continuously. Now we own the advanced production equipments and the excellent production teams.

Our main products are potentiometers, encoders, switch and knobs. We apply automated production, now we hold nearly 80 employees. Our products are more than 20 series, 300 different specifications, the annual output is more than 35 million pieces.

Our products measure up the RoHS environment requirement. We manage the quality adopted ISO9001: 2000 standard.

Our products are mainly exported to Korea, Pakistan, Poland, Switzerland, Italy, Germany, Russia etc. We enjoy the high reputation in abroad.

Continuously innovation is the motive for the development of an enterprise, so we are looking forward to your all kinds of co-operation.

Our products can be used for home appliance, communication, lampls and lanterns, medical equipment, automobile, toys, stage audio, instrument.
