Manufacturer Since 1992 RG6 with Cu/CCS/CCA Conductor CCTV/CATV/Coaxial Cable

Name: Manufacturer Since 1992 RG6 with Cu/CCS/CCA Conductor CCTV/CATV/Coaxial Cable
Brand: all-electronics-online.com
SKU: 763119215
Availability: InStock
Rating: 5 (133 reviews)

Price:	US $ 19-25/Roll
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Roll
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG6 With CU/CCS/CCA CCTV/CATV/Coaxial Cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Jacket:	PVC,PE
Jacket Color:	White, Gray, Black, Yellow, Brown, Red
Conductor Size:	28AWG, 26AWG, 24AWG, 23AWG, 22AWG
Delivery Detail:	2 Weeks for One Container
Spec:	Available on Request
Application:	Coaxial Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	UL
Type:	Coaxial Cable
Brand:	DSC

Product Description

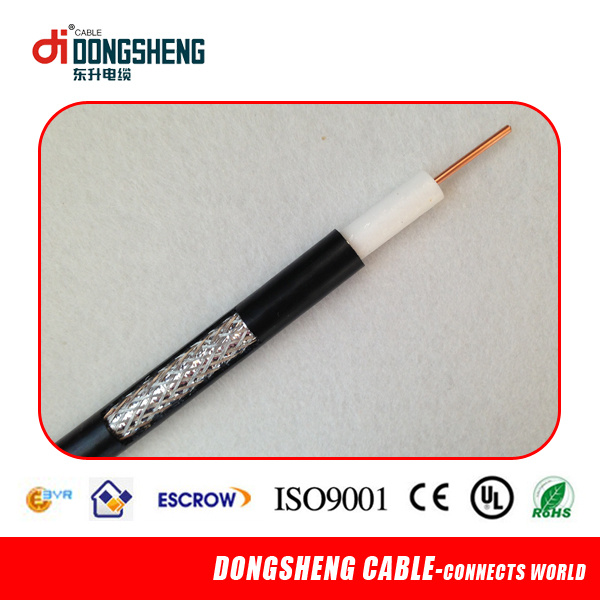

Manufacturer Since 1992 RG6 with Cu/CCS/CCA Conductor CCTV/CATV/Coaxial Cable
RG6 Coaxial Cable,RG6, RG6 Triple Cabo Coaxial,RG6 Quad Kabel, RG6 Steel Messenger Cable

Specification:

RG6 Tri Coaxial Cable-CATV/MATV/CCTV		TYPE:	RG6TSVM-35% or 95%
Construction
Item	Material			Diameter(mm)
Center Conductor	Copper Clad Steel/BC			1.02
Dielectric	Foam PE			4.57
1st Shield	Bonded Aluminum Foil Copper Foil			4.75
2nd Shield	Aluminum Wire Braid CCA Wire Braid BC Wire Braid TC Wire Braid			3×16×0.12 40% 4×16×0.16 60% 6×16×0.12 75% 7×16×0.16 95% 10×16×0.12 95%
3rd Shield	Aluminum Foil or			AL Foil
Jacket	PVC			7.06 ROHS,UV,UL,LSZH
Messenger	Galvanized Steel			1.30
Electrical Charateristics
Impedance(Ω)				75±3
Capacitance(pF/m)				52±2
Velocity of Propagation(%)				85.0
Shielding Effectiveness
5-1000MHZ(dB)				≥90%
Return Loss
5-1000MHZ(dB)				≥22
1000-2000MHZ(dB)				≥20Factory Picture:

1) Packing Lengths:100/roll,200m/roll,300m/roll,305m/roll, 500m woden reel, 1000m wooden reel
2) Inner Packing:Wooden reel,plastic reel,and paper reel
3) Outer Packing:Carton box,pull out box,pallet available
4) Other packing available according to clients' request
