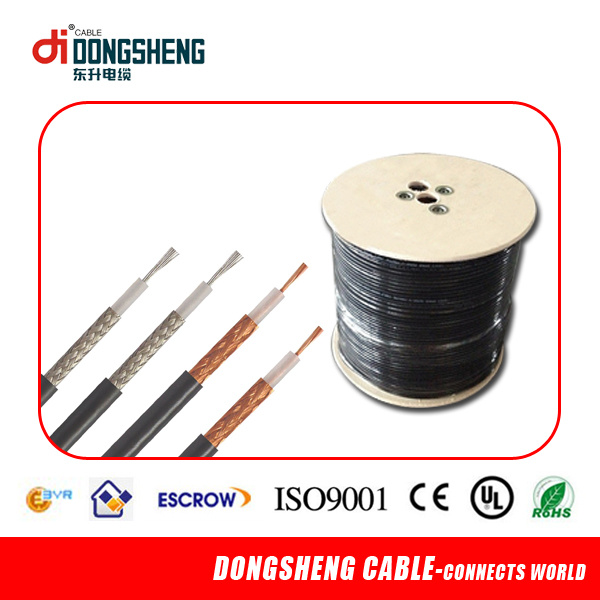

Rg11/Rg59/RG6 Coaxial Cable (CE RoHS UL ISO9001)

Name: Rg11/Rg59/RG6 Coaxial Cable (CE RoHS UL ISO9001)
Brand: all-electronics-online.com
SKU: 763014715
Availability: InStock
Rating: 4.4 (139 reviews)

Price:	US $ 0.05-1/Meter
Trade Terms:	FOB,CIF,EXW
Min Order:	10000/Meter
Pay Type:	T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Rg11/Rg59/RG6 Coaxial Cable (CE RoHS UL ISO9001)

BC: Bare Copper CCS: Copper Clad Steel

TC: Tinned Copper CCA: Copper Clad Aluminum

1.Specifications:

1) RG6 Coaxial Cable 75ohm Double shield(standard)

1.02mm BC/CCS Conductor + 4.57mm PE Foam + Al Foil + CCA/BC/Alloy Braiding + 6.9mm PVC Jacket

2) RG6 Coaxial Cable 75ohm Tri-shield

1.02mm BC/CCS Conductor + 4.57mm PE Foam + Bonded Al Foil + CCA/BC/Alloy Braiding + Al Foil + 6.9mm PVC Jacket

3) RG6 Coaxial Cable 75ohm Quad shielded

1.02mm BC Conductor + 4.57mm PE Foam + Bonded-Al Foil + CCA/BC/Alloy Braiding + A Foil + CCA/BC/Alloy Braiding + 7.3mm PVC Jacket

4) Customers'specifications are welcomed

2. Product Description:

1) Center conductor:BC,TC,CCA,CCS

2) Al-foil:Non-bonded Al-foil, bonded Al-foil,double bonded Al-foil,and double

non-bonded Al-foil are available

3) Braiding wire:Al,BC,,TC,CCA,CCS Available

4) Braiding wire diameter:0.10,0.11,0.12,0.13,0.14,0.15,0.16mm available

5) Braiding net:32,48,64,72,80,96,120,128,144 and more available

6) Braiding coverage:Between 30-97%

7) PVC jacket of flame retardant,UL Available

3.Electrical characteristics

@ Frequency MHz	dB/100 ft. (MAX.)	dB/100 meters (MAX.)
5 MHz	0.58 dB	2.65 dB
55 MHz	1.60 dB	5.25 dB
83 MHz	1.95 dB	6.40 dB
187 MHz	2.85 dB	9.35 dB
211 MHz	3.05 dB	10.00 dB
250 MHz	3.30 dB	10.82 dB
300 MHz	3.55 dB	11.64 dB
350 MHz	3.85 dB	12.63 dB
400 MHz	4.15 dB	13.61 dB
450 MHz	4.40 dB	14.43 dB
500 MHz	4.66 dB	15.29 dB
550 MHz	4.90 dB	16.08 dB
600 MHz	5.10 dB	16.73 dB
750 MHz	5.65 dB	18.54 dB
865 MHz	6.10 dB	20.01 dB
1000 MHz	6.55 dB	21.49 dB

4. Application:

Used as a distribution cable for indoor CATV,CCTV systems and as a connection cable for satellite systems where lower attenuation required.

5. Packing:

1) Packing Lengths:100/roll,200m/roll,300m/roll.305m/roll

2) Inner Packing:Wooden reel,plastic reel,and paper reel

3) Outer Packing:Carton box,pull out box,pallet available

4) Other packing available according to clients'request

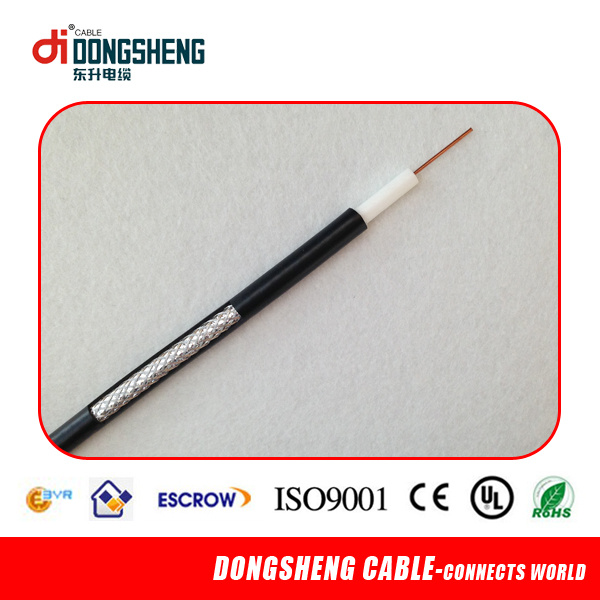

RG6:

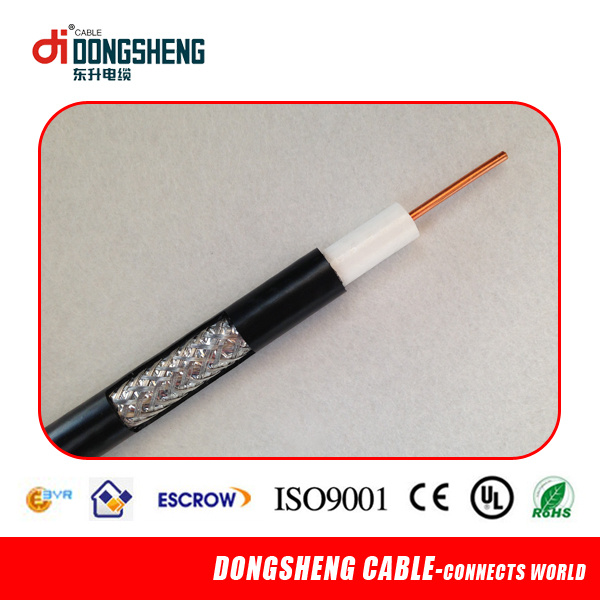

RG59:

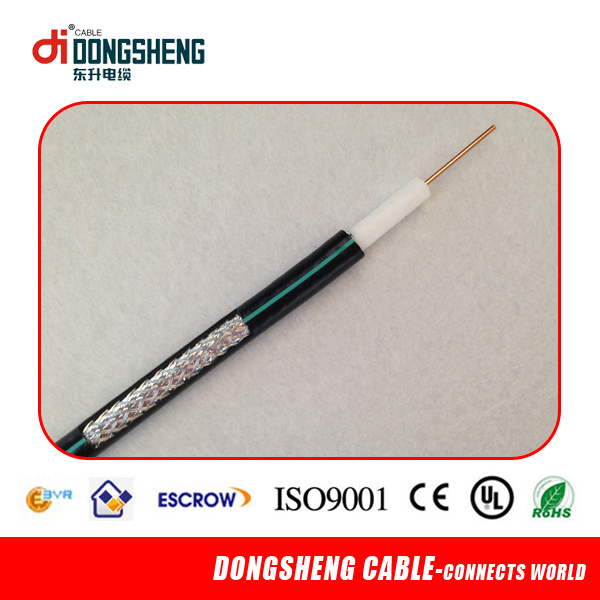

RG11:

24 Hours Available
Name:Wendy Lee
Mobile (waht's app):+86 15958030333
Phone:+86-571-61070066
Fax:+86-571-63763198

Web address:www.dongsheng.com

Prod Model:	RG6
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Jacket Color:	Gray/Blue/White/Black/Yellow/Red
Application:	Coaxial Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	UL
Type:	RG6
Model:	CATV/CCTV
Brand:	Dongsheng
