Many Design Wall USB Socket/Double USB soket 2.1A/2.2A/multi socket with usb socket with switch
Model No | USB Wall Socket for iPhone Charge iPad |
Construction | double USB charging ports and multi-region socket |
Material for faceplate | flame-retardant polycarbonate |
Material for back frame | stainless steel |
Material for contact | Strong conductive bronze |
Allowed maximum current for AC electric outlet | 10Amp--13Amp(or customized) |
Allowed maximum voltage for AC electric outlet | 250V |
Allowed maximum current for USB charging ports | 2100mA(or 1000mA for option) |
Allowed maximum voltage for USB charging ports | 5V |
Ultra low standby power consumption | <50mW |
Dimensions | 86(L)x86(H)x16mm(D) |
Life | 100,000 times |
Color | any color as per customer's preference |
Wall mount | yes |
Minimum order quantity | 100PCS |
Compatible products | Smart phones,Iphone,Ipad,digital camera etc,all digital products |
Compatible plugs | Plugs in countries all over the world, please kindly check the picture below |
Application | Residential/general purpose |
Product photos:
Product description:
1. Shell is made of high quality PC Material, Improve the flame retardancy
2. Inside Material is made of Tin phosphorous bronze, High strength, with good electrical conductivity, not easily deformed
3. 10A/110-250VAC Compliant AC Outlet
4. 2100mA -5V USB Power Ports
5. Built-in automatic recovery fuse
6. Auto adjust charging Wattage
7. The USB protection door can be opened, both to protect the interface, but it is also a power switch,open the USB protection door will be connected to USB charging power, Close the protection door will be disconnected to USB charging power, Save power consumptionl
8. The socket protection door, designed double protect door,Prevent unipolar insert to protect the safety of family
9. LED indicator, Indicating that the USB charging status
10. The multipurpose plug hole design, may meet inserts Any country standard plugs.
11. Compatibility: iPod, iPhone, iPad, Tablets, Mobile Phones, Smartphones, Nintendo DS,
Sony PSP, Bluetooth Headsets, Digital Cameras,MP3, Kindle, GPS & more!
Specifications:
1). Passed FCC,RoHS,certificates.
2). LG Brand Flame Retardant PC Plastic, UL94V0 Fire Protection Rating.
3). Metal shrapnel adopt Phosphor Bronze ( Thickness :0.6-
0.7mm,Wildth 6.3mm).Over 40,000 Times Plug And Unplug Testing, 12 Years no any looseness..
4). Based on Surge design, Lightning strike, Over-Voltage And Over Current Protection.
5). Built-In high Proformance intelligent IC charging module ,which has Over
Current / Voltage and short circuit Protection. Two USB Ports can auto identify the Loading . So as to
ensure the charging quality & Extend the Battery life.
6). Over 8 Hrs Burning Testing And USB Passed 3000V Safety Testing to Ensure the product quality.
Product Features:
1.Shell is made of high quality PC Material, Improve the flame retardancy.
2.Inside Material is made of Tin phosphorous bronze, High strength, with good
electrical conductivity, not easily deformed.
3.Built-in automatic recovery fuse.
4.Auto adjust charging Wattage
5.Double USB charging interface, support more USB devices to charging at the
same time.
6.Compatibility: iPod, iPhone, iPad, Tablets, Mobile Phones, MP3 Bluetooth
Headsets, GPS & more.

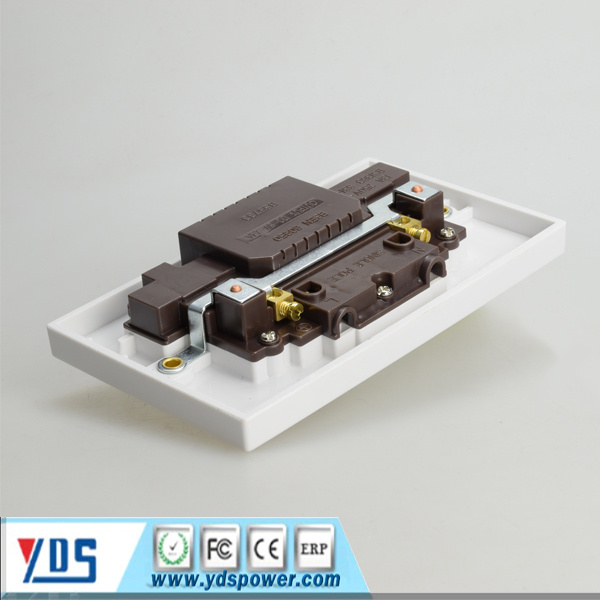

Detail Pictures
(1) Unscrew the shell screw, take off the shell
(2) Unscrew the null line, live line, ground wire three connection screw;
(3) Connected corresponding line to the terminal
(4) Tighten the mounting screws
(5) Assemble the shell according picture, tighten screw
Package
After-sales Service Letter of Commitment:
1) Product Warranty: 12 months
2) We can provide with the good after-service of return or exchange the goods for free including the freight cost during the warranty times, but expect the damage or loss due to human errors.
3) We can also provide you with the repair service even though beyond the warranty, but kindly noted your side should respinse to the charge fees of the repair and the double freight cost.
