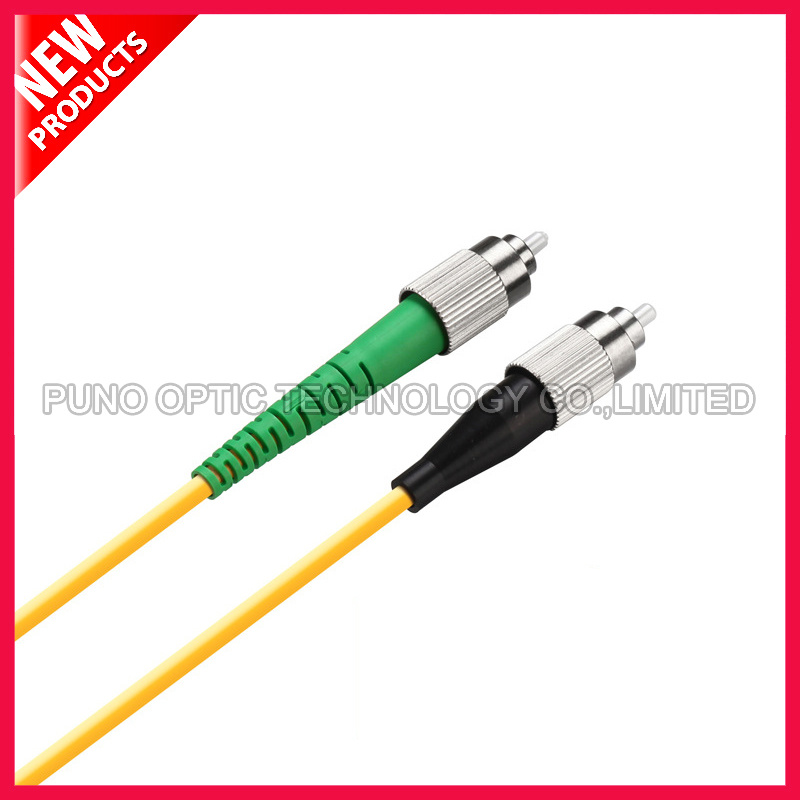

Master Fiber Optic Patch Cord Test Lead

Master Fiber Optic Patch Cord Test Lead

PUNO's master patch cord,reference to the most advanced foreign grinding equipment and technology to ensure that the optical fiber center grinding offset, light bump, fiber surface without scratches, high standard geometric design parameters, in line with the standard requirements, so that you use the process of peace of mind and rest assured.

Features:

√ Master Patchcords in low insertion loss and high return loss by the selected high quality ferrules;
√ Designed for reliable measurement in telecommunication networks and optical component;
√ Comes with interferometry qualtiy report and unique identification number for each patchcord;
√ Exceeds to IEC 61300-3-4 testing procedure standard and GR-326-CORE specification.

Applications:

√ Optical patch panel
√ Various fiber optic devices
√ Optical
√ Equipment with high density and high capacity requirements

Specification:


	PC	APC
Optical Performance Specification
Insertion Loss SM, MM (dB)	<= 0.10	<= 0.10
Return Loss SM (dB)	>= 55	>= 65
Return Loss MM (dB)	>= 40	---
Geometric Specification of a Finished End-face
Radius of Curvature (mm)	10 ~ 20	8 ~ 12
Apex Offset (um)	<= 20	<= 30
Fiber Height (um)	± 20	± 20
Anglar Offset	---	8°± 0.2°

Our Services:

√ We are the one of biggest manufacture of fiber optic cable in China and has more than 10 years manufacturing and selling experience;
√ We accept OEM. The product size and material are customized.Ur own logo and  own design are welcome.  We will produce according to you requirment and description;
√ Please send us inquiry for more products info and we will give you feedback in 12 hours.
