| Prod Model: |
FD-PCB-01 |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
HB |
| Dielectric: |
FR-4 |
| Material: |
Aluminum |
Product Description
Product Description FOUND's aim
Customer Satisfaction is Always Our First Priority!
*Quality Policy
*Pursue high quality & Stress technology
*Improve continuously
*Achieve customer's satisfaction
Technical Capabilities| Items | Speci. | Remark |
| Max panel size | 32" x 20.5"(800mm x 520mm) | |
| Min trace width/ space (inner layer) | 4mil/4mil(0.1mm/0.1mm) | |
| Min PAD (inner layer) | 5 mil(0.13mm) | hole ring width |
| Min thickness(inner layer) | 4 mil(0.1mm) | without copper |
| Inner copper thickness | 1~4 oz | |
| Outer copper thickness | 0.5~6 oz | |
| Finished board thickness | 0.4-3.2 mm | |
Board thickness tolerance control | ±0.10 mm | ±0.10 mm | 1~4 L |
| ±10% | ±10% | 6~8 L |
| ±10% | ±10% | ≥10 L |
| Inner layer treatment | brown oxidation | |
| Layer count Capability | 1-30 LAYER | |
| alignment between ML | ±2mil | |
| Min drilling | 0.15 mm | |
| Min finished hole | 0.1 mm | |
| Hole precision | ±2 mil(±50 um) | |
| tolerance for Slot | ±3 mil(±75 um) | |
| tolerance for PTH | ±3 mil(±75um) | |
| tolerance for NPTH | ±2mil(±50um) | |
| Max Aspect Ratio for PTH | 8:1 | |
| Hole wall copper thickness | 15-50um | |
| Alignment of outer layers | 4mil/4mil | |
| Min trace width/space for outer layer | 4mil/4mil | |
| Tolerance of Etching | +/-10% | |
| Thickness of solder mask | on trace | 0.4-1.2mil(10-30um) | |
| at trace corner | ≥0.2mil(5um) | |
| On base material | ≤+1.2mil
Finished thickness | |
| Hardness of solder mask | 6H | |
| Alignment of solder mask film | ±2mil(+/-50um) | |
| Min width of solder mask bridge | 4mil(100um) | |
| Max hole with solder plug | 0.5mm | |
| Surface finish | HAL (Lead or Lead free), immersion Gold, Immersion Nickel, Electric Gold finger, Electric Gold, OSP, Immersion Silver. | |
| Max Nickel thickness for Gold finger | 280u"(7um) | |
| Max gold thickness for Gold finger | 30u"(0.75um) | |
| Nickel thickness in Immersion Gold | 120u"/240u"(3um/6um) | |
| Gold thickness in Immersion Gold | 2u"/6u"(0.05um/0.15um) | |
| Impedance control and its tolerance | 50±10%,75±10%,100±10% 110±10% | |
| Trace Anti-stripped strength | ≥61B/in(≥107g/mm) | |
bow and twist
| 0.75% |
Delivery Time for PCB board:1) PCB production time: sample: 3-4 days / mass production: within 7 days
2) Component purchase: 2 days if all components is available in our domestic market.
3) PCB Assembly: samples: whthin 2 days / mass production: within 5 days
Shipping Method and Payment terms:1. By DHL, UPS, FedEx, TNT using clients account.
2. We suggest you using our DHL, UPS, FedEx, TNT forwarder.
3. By EMS (Usually for Russia Clients), price is high.
4. By sea for mass quantity according to customer's requirement.
5. By customer's Forwarder
6.By Paypal,T/T,West Union,etc.
We sincerely hope to establish longtime and friendly business relationship with you. If you have interest in our product, please don't hesitate to contact us !
Found PCB, established in 2005, Shenzhen Found Printed Circuit Board Co., Ltd. is part of Found group. Found PCB dedicated to provide one-stop service, to meet highest technology, quality and quick turn over challenges with lowest cost.

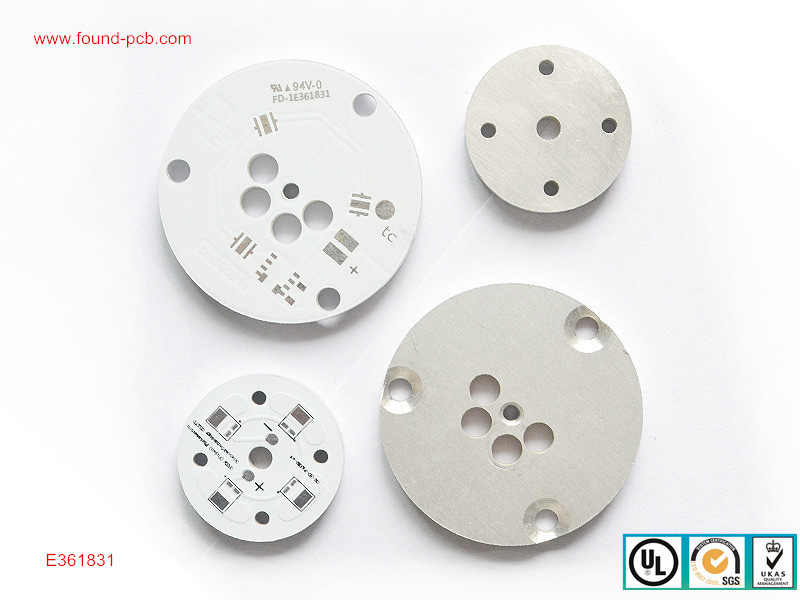

Shenzhen Found Circuit Board Co., Ltd supply all kinds of PCBs more than 10 years. Products including Rigid PCB (1-20 layers), flex PCB(1-4 layer), metal core PCB, Rigid-Flex PCB, especially in the metal core PCB, they use widly in the LED lighting.
A lot of comepays from Europe and North American buy from Found, cause we are the source, we can offer very good price, we think we can save a lot of your purchasing cost.
We also offer PCB solution. Such as Rigid-flex PCB, a lot of factories in China can not made this kind of the rigid-flex PCB. But Found is good at this...

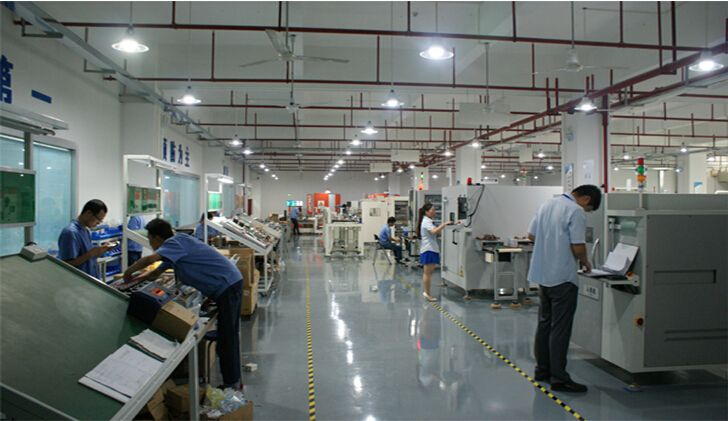

With several year's rapid development, the production capability of our factory reachs 25, 000 square meters with over 500 employees and 180, 000 sq. M production area. Found PCB has been certified by International Quality System IS09001, ISO14001, TS16949 and UL (E361831).
We welcome the every opportunity to working for you. We have the good name in the PCB market.
