Prod Model: |
PT-M006, |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Pressure: |
0-3.5MPa^ 0-150MPa(0-500psi^0-20000psi) |
Over Pressure: |
1.5 X Fso |
Combined Error: |
±1.0% Fso, ± 1.5% |
Output: |
3.33 Mv/V, 2mv/V |
Repeatability: |
+/- 0.2%Fso |
Product Description
Introduction

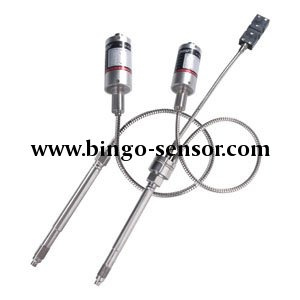

PT-M006, PT-M006T Series Melt Pressure Transmitter ( Steel stem & Sanitary) can achieve
The pressure and temperature measuring and has the wide application in Medicine & Food
Process equipment, drinking water environmental monitoring. The model PT-M006T is with
Temperature-measuring transducer. It has the wide application in China, with the advantage
Of precision and reliable pressure measuring and high-standard quality.
Technical Parameter
Pressure range | 0-3.5MPa^ 0-150MPa(0-500psi^0-20000psi) |
Over Pressure | 1.5 X FSO |
Combined Error | ±1.0% FSO, ± 1.5% (Including Linearity, Repeatability & Hysteresis) |
Output | 3.33 mV/V, 2mV/V |
Input Voltage | 10VDC |
Repeatability | +/- 0.2%FSO |
Bridge Resistance | Input: 345 Ohms minimum Output: 350 Ohms +/- 10% |
Internal Shunt Calibration (R-Cal) | 80% FSO +/- 1% |
Insulation Resistance | 200 megohms @ 100 Vdc |
Max Diaphragm Temperature | 260ºC |
Mounting Torque | 500 inch/lbs. maximum |
Standard Wetted Parts | Diaphragm coated 15-5 PH SST |
Process connector | 1/2″-20UNF, M14×1.5, M18×1.5 Optional |
Our service:
1). Delivery in time,delivery time is 7 days for sample and 15 working days for bulk order;
2). Strong production capacity and strict quality control system;
3). Your inquiry and problems related to our products or prices will be replied in 24 hours;
4). Well-trained and experienced staffs to answer all your inquires;
5). After-sale tracking service for all of our clients;
6). OEM is available; small quantities, mixed bulk orders are also welcome;
7). Payment: L/C, D/A, D/P, T/T, Paypal , Western Union, MoneyGram;
8). Delivery way: UPS, DHL, TNT, FEDEX, EMS, CHINA POST.
Guarantee:
1).12 months warranty for most of our products;
2). We will arrange delivery of the goods on time;
3). Within the warranty period, we will bear all the quality problem of our products;
4). Beyond the warranty period, we will despatch the replacement parts to help fix the products, but the parts will be charged;
5). Without any problem, we will gain the feedbacks of our products to help improve better products.
If you need more information about the product, click here: www.bingo-sensor.com
Bingo Industrial and Trading Company started to run businiess since 2006, which is located in Wenzhou Yueqing ---- The world-famous city for low-voltage electric apparatus.
We owns followed two subsidiary corporations:
Bingo sensor Technology Co., Ltd. ----- concentrates on pressure, level and flow control product.
Yueqing tongfa electronic Co., Ltd. ----- is engaged in electronic&electrical product, security product.
After several years development, Bingo now becomes a professional supplier for
* Pressure, level and flow control product applied to:
Water supply system
HVAC
Household appliances (refrigerator, Furnace, heater, dish-washing machine,
Water dispenser, food waste disposer and so on)
Steam control system
Vehicle
Oil transporting system
Medical equipment
* Security product
Warning light
Roadway safety
Mining safety
Alarm sire
* Electronic&Electrical product
Tact switch
Micro switch
Toggle switch
Foot switch
Earphone jacket
Industrial plug&socket
With many years' business accumulation and good cooperation with more than 150 companies, we are capable to offer our clients products with the competitive prices, satisfied quality and excellent services. Part of our products own CE, UL, TUV certificate.
At present, Bingo Industrial and Trading Company has 50-60 employees. We have set up business relationships with customers from more than 50 countries and regions. Through running business honestly, we earned the reputation from both local government and oversea clients.
We strongly insist on the principle of "quick response, the best service, satisfactory quality, and competitive price", and sincerely hope that every customer around the world would have the feeling of "Bingo" after the first business cooperation with us.
Looking forward to a win-win relationship with you!
