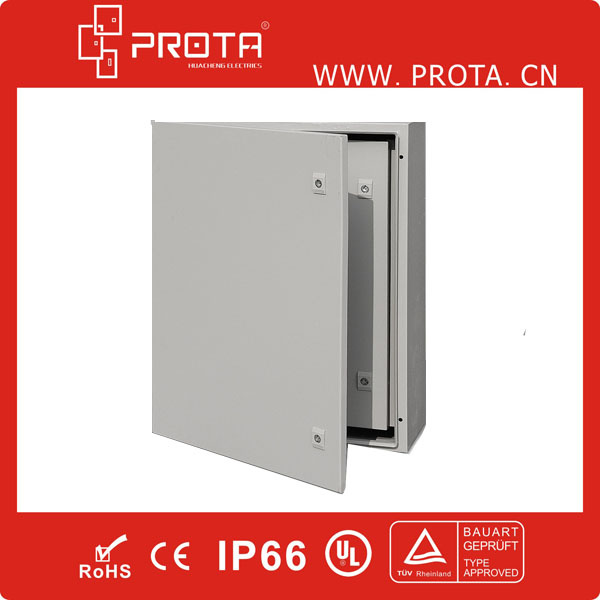

Metal Distribution Box Wall Mounting Enclosures with Inner Door
| Price: |
US $ 10-180/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Western Union |

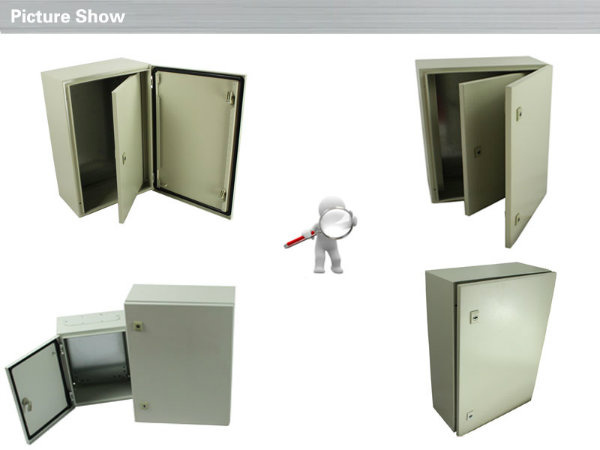

Metal Distribution Box Wall Mounting Enclosures with inner door
Standard Configuration
1, Standard configuration: Mounting plate, locking system, gland plate, sealing gasket and fixing accessories.
2, Material and thickness: Cold-rolled sheet steel
Door: 1.2mm & 1.5mm
Body: 1.2mm & 1.5mm
Mounting plate: 1.5mm & 2.0mm
When the enclosure is less than 800mm high, body and door is 1.2mm THK, mounting plate is 1.5mm THK; If over 800mm high, body and door is 1.5mm THK, mounting plate is 2.0mm THK.
3, Surface: Epoxy thermosetting powder coating, textured finish
4, Color: RAL 7032 RAL 7035
5, Protection degree: IP 66
Craftsmanship Feature
1, There are strengthening strips with pilot holes is welded to both sides of the door by using the self-tapping M4 screws for the convenient installation (If the enclosure higher than 600mm)
2, The PU foam sealing gasket inside the door.
3, The door can be opened 130° By the plugging hinges
4, The slots design of the enclosure prevents dust and water entering into the enclosures plus the good coordination with foam sealing gasket, which supply a good protection of the enclosure.
5, There are 4 hanging holes in the back of the enclosure, which is very convenient for installation by the wall mounting brackets.
6, There's a sealing gasket at the bottom gland plate, ensures the IP protection level

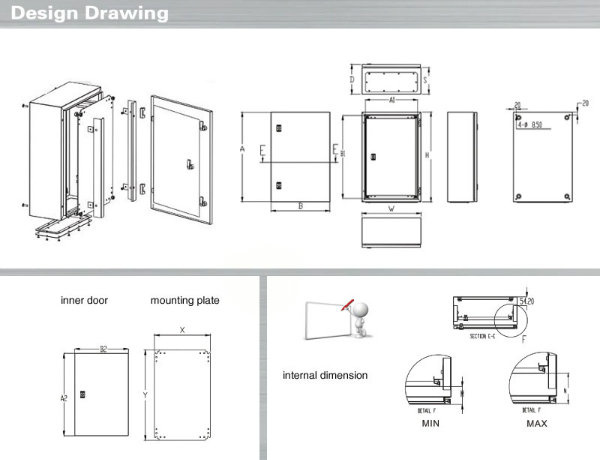

Selection Tabel
| Model No. | H(mm) | W(mm) | D(mm) | Model No. | H(mm) | W(mm) | D(mm) |
| PTI2 215 | 200 | 200 | 150 | PTI6 425 | 600 | 400 | 250 |
| PTI3 215 | 300 | 200 | 150 | PTI7 525 | 700 | 500 | 250 |
| PTI3 315 | 300 | 300 | 150 | PTI4 330. | 400 | 300 | 300 |
| PTI4 315 | 400 | 300 | 150 | PTI5 530 | 500 | 500 | 300 |
| PTI5 315 | 500 | 300 | 150 | PTI6 430 | 600 | 400 | 300 |
| PTI3 2520 | 300 | 250 | 200 | PTI7 630 | 700 | 600 | 300 |
| PTI3 320 | 300 | 300 | 200 | PTI8 630 | 800 | 600 | 300 |
| PTI4 420 | 400 | 400 | 200 | PTI9 630 | 900 | 600 | 300 |
| PTI5 520 | 500 | 500 | 200 | PTI4 400 | 400 | 400 | 400 |
| PTI6 620 | 600 | 600 | 200 | PTI5 540 | 500 | 500 | 400 |
| PTI7 620 | 700 | 600 | 200 | PTI6 640 | 600 | 600 | 400 |
| PTI3 2525 | 300 | 250 | 250 | PTI6 540 | 600 | 500 | 400 |
| PTI4 325 | 400 | 300 | 250 | PTI7 640 | 700 | 600 | 400 |
| PTI5 325 | 500 | 200 | 250 | PTI8 640 | 800 | 600 | 400 |
| PTI5 425 | 500 | 400 | 250 | PTI8 840 | 800 | 800 | 400 |
Other sizes avaliable onrequest .Cut-outs and drilled holes to your specifications. Should you have any questions or problems, ple4se contact with us.
Packing and Shipping
-- Ordinary paper carton for electric enclosure.
-- Paper cover , PP strap, protective film is avaliable for big electric cabinet
-- Plastic bag is avaliable for stainless steel electric box
-- Bubble bag or protective film for inner protection to avoid scratches.
-- Plywood pallet is available when sheet metal products are in large amount.
--Shipping mark according to customer's request.
-- Samples can be send by courier(UPS, FEDEX, EMS,TNT, DHL),bulk production will be deliveried by sea and air.
Our Service
-- We have our own factory, professional sheet metal parts manufacturer
-- We can send you samples within one week.
-- We do OEM & ODM services .
-- We control quality strictly, quality problem: 100% compensation or change

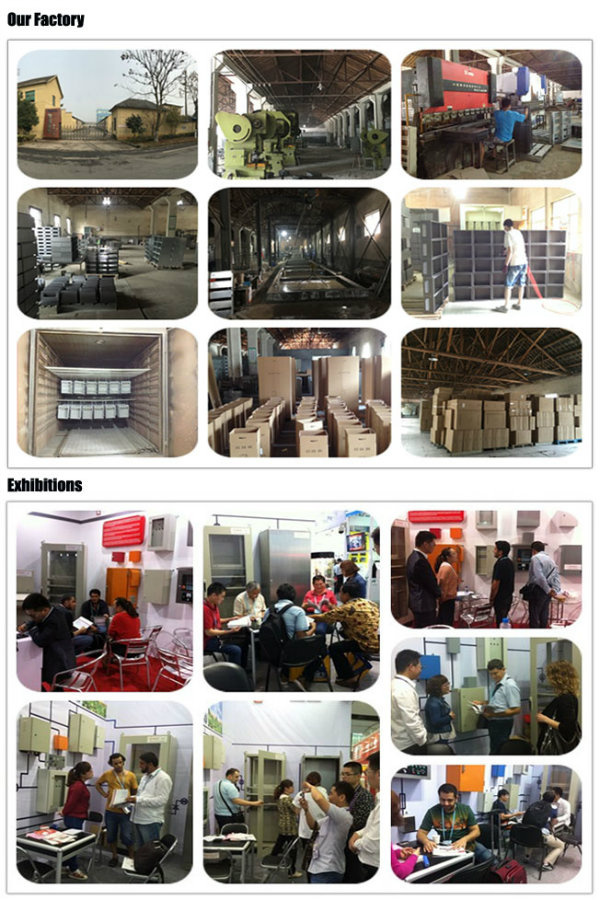

Welcome to visit our factory. Welcome customer or your agent to inspect before order and before loading.
Company Information
PROTA is a professional manufacturer, well-known of all kinds of distribution boxes in China, our products range includes: metal wall mounting enclosures, stainless steel enclosures, floor standing electric cabinets, knock-down cabinets, terminal boxes, junction boxes, gland boxes, telephone boxes and so on.
As an ISO 9001 certified factory, Prota has produced enclosures IP rated enclosures from 55 up to 66, Our enclosures go through stringent quality control during in production and are picked by random for testing by our professional QC dept. All selected enclosures have passed ROHS test, got CE approval complying with EN62208 standard as well, furthermore, both the IP & ROHS certificates were issued by TUV lab in Shanghai China.
Our products sell well in international markets such as the U.S., Canada, South America, Southeast Asia, the Mid East, India, Africa, etc.
we are devoting ourselves to achieve high quality products, competitive prices and on time delivery, We are working hard to give more to our customers.
| Prod Model: |
PTI |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Cold-Rolled Sheet Steel |
| Surface Finish: |
Powder Coating,Textured Finished |
| Color: |
Ral 7032/Ral7035/Customize |
| Thickness: |
1.2mm&1.5mm |
| Lock: |
Plastic Lock / Metal Lock |
| Type: |
Distribution Metering Box |
| Structure: |
Protection |
| Size: |
250X200X200~1400X1200X400 |
| Application Range: |
Electrical Distribution |
| Shell Material: |
Cold-Rolled Sheet Steel |
| Shell Protection Grade: |
IP66 |
| Brand: |
Porta |
PROTA is a professional manufacturer, well-known of all kinds of distribution boxes in China, our products range includes: Metal wall mounting enclosures, top stainless steel enclosures, floor standing cabinets, knock-down cabinets, network cabinets, terminal boxes, MCB boxes, gland boxes, telephone boxes and so on.
As an ISO 9001 certified factory, Prota has produced enclosures IP rated enclosures from 55 up to 66, Our enclosures go through stringent quality control during in production and are picked by random for testing by our professional QC dept. All selected enclosures have passed RoHS test, got CE approval complying with EN62208 standard as well, furthermore, both the IP & RoHS certificates were issued by TUV lab in Shanghai China.
We have always insisted on follow the clients' needs, complied with the convenient, practical, safe and beautiful perspective of development and production since the establishment, so far we've well received favorable comments at home and abroad. We also undertake OEM, ODM production, welcome letter Call Advisory.
