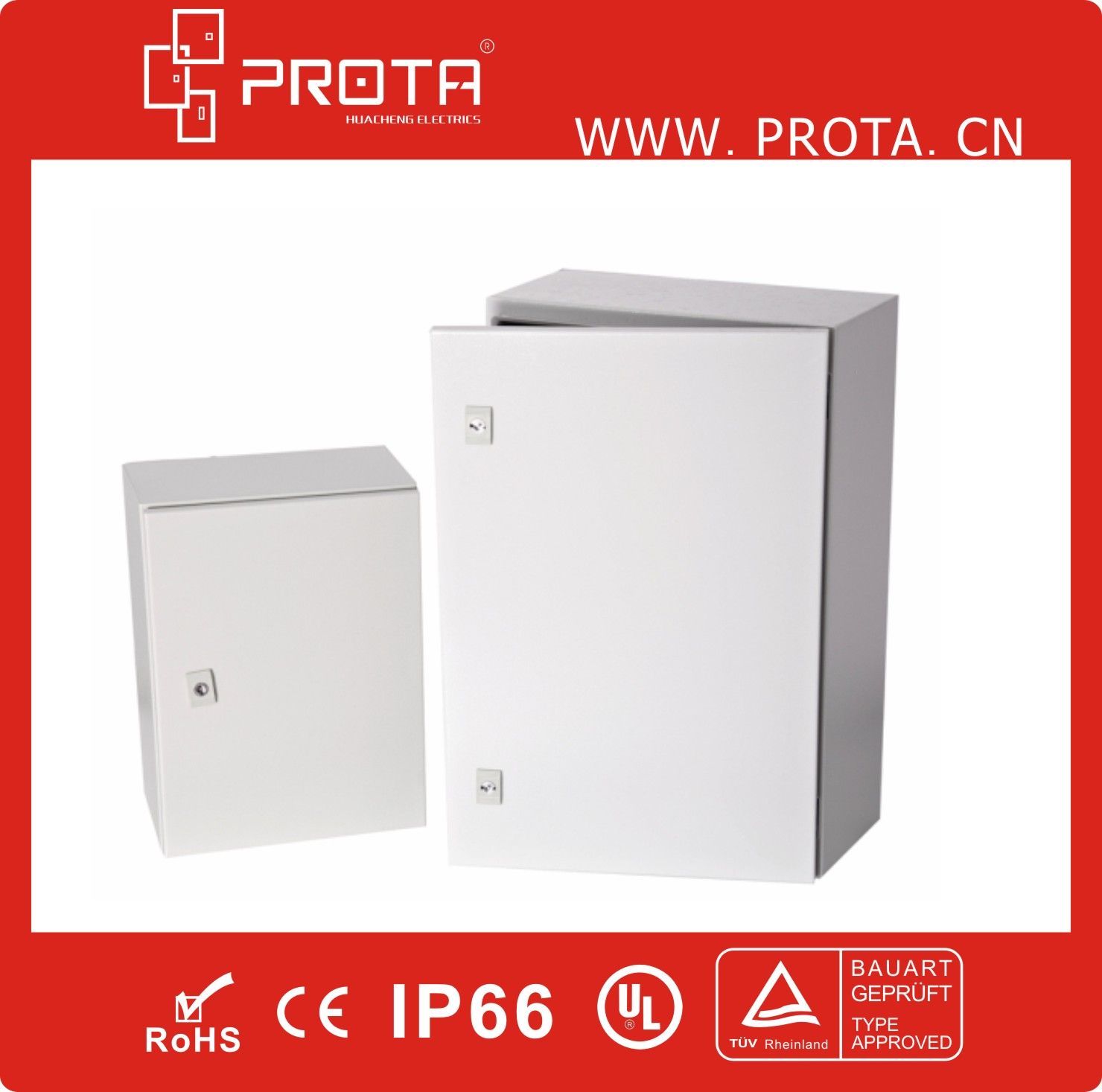

Metal Wall Mounting Enclosure
| Price: |
US $ 10-200/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Western Union |
Standard Configuration

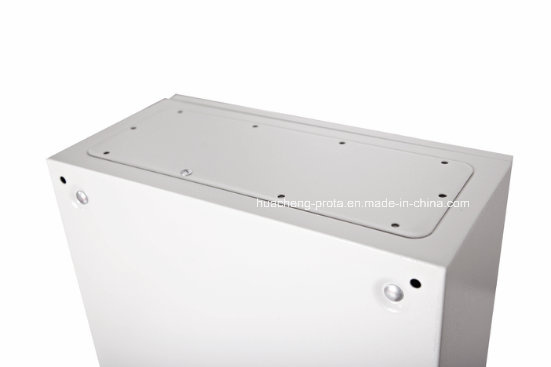

1. Standard configuration: Galvanized or orange painted mounting plate, locking system, gland plate, sealing gasket and fixing accessories.
2. Material and thickness: Cold-rolled sheet steel
Door: 1.2mm (up to H=800mm) or 1.5mm (H≥ 800mm)
Body: 1.2mm (up to H=800mm) or 1.5mm (H≥ 800mm)
Mounting plate: 1.5mm (up to H=800mm) or 2.0mm (H≥ 800mm)
3. Surface: Thermosetting epoxy powder coating, textured finish
4. Color: RAL 7032 RAL 7035 or any other colors on your request
5. Protection degree: IP 66
Craftsmanship Feature1. There are strengthening strips with pilot holes welded to both sides of the door by using the self-tapping M4 screws for the convenient installation (If the enclosure higher than 600mm)
2. There's one foam PU sealing gasket inside the door for the water and dust proof.

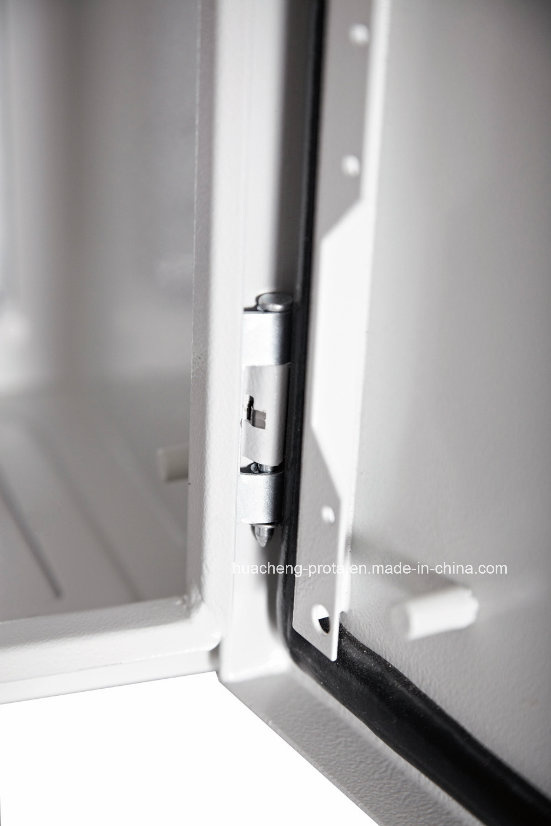

3. The door can be opened 130° By the plugging hinges
4. The slots design of the enclosure prevents dust and water from entering into the enclosures plus the good coordination with sealing ring, which supply a good protection of the enclosures.
5. There're 4 hanging holes in the back of the enclosures, which is very convenient for the installation by the wall mounting brackets, that's going to be Ordered separately.
6. The door can be switched by both left and right side.Selection Table| Model No. | Height (mm) | Width (mm) | Depth (mm) |
| PT2 215 | 200 | 200 | 150 |
| PT25 215 | 250 | 200 | 150 |
| PT3 215 | 300 | 200 | 150 |
| PT3 2515 | 300 | 250 | 150 |
| PT4 315 | 400 | 300 | 150 |
| PT5 415 | 500 | 400 | 150 |
| PT6 415 | 600 | 400 | 150 |
| PT6 515 | 600 | 500 | 150 |
| PT3 2520 | 300 | 250 | 200 |
| PT3 320 | 300 | 300 | 200 |
| PT4 320 | 400 | 300 | 200 |
| PT4 420 | 400 | 400 | 200 |
| PT5 420 | 500 | 400 | 200 |
| PT5 520 | 500 | 500 | 200 |
| PT6 420 | 600 | 400 | 200 |
| PT6 520 | 600 | 500 | 200 |
| PT6 620 | 600 | 600 | 200 |
| PT7 520 | 700 | 500 | 200 |
| PT8 620 | 800 | 600 | 200 |
| PT8 820 | 800 | 800 | 200 |
| PT10 620 | 1000 | 600 | 200 |
| PT10 820 | 1000 | 800 | 200 |
| PT12 820 | 1200 | 800 | 200 |
| PT4 325 | 400 | 300 | 250 |
| PT4 425 | 400 | 400 | 250 |
| PT5 425 | 500 | 400 | 250 |
| PT6 425 | 600 | 400 | 250 |
| PT6 525 | 600 | 500 | 250 |
| PT7 525 | 700 | 500 | 250 |
| PT8 625 | 800 | 600 | 250 |
| PT8 825 | 800 | 800 | 250 |
| PT10 625 | 1000 | 600 | 250 |
| PT10 825 | 1000 | 800 | 250 |
| PT12 825 | 1200 | 800 | 250 |
| PT5 430 | 500 | 400 | 300 |
| PT5 530 | 500 | 500 | 300 |
| PT6 530 | 600 | 500 | 300 |
| PT6 630 | 600 | 600 | 300 |
| PT7 530 | 700 | 500 | 300 |
| PT8 630 | 800 | 600 | 300 |
| PT8 830 | 800 | 800 | 300 |
| PT10 830 | 1000 | 800 | 300 |
| PT10 1030 | 1000 | 1000 | 300 |
| PT12 830 | 1200 | 800 | 300 |
| PT12 1030 | 1200 | 1000 | 300 |
| PT14 830 | 1400 | 800 | 300 |
| PT14 1030 | 1400 | 1000 | 300 |
| PT8 640 | 800 | 600 | 400 |
| PT8 840 | 800 | 800 | 400 |
| PT10 840 | 1000 | 800 | 400 |
| PT12 840 | 1200 | 800 | 400 |
| PT12 1040 | 1200 | 1000 | 400 |
| PT14 840 | 1400 | 800 | 400 |
| PT14 1040 | 1400 | 1000 | 400 |
| Prod Model: |
PT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Surface Finish: |
Epoxy Thermosetting Powder Coating |
| Color: |
Ral 7032/Ral 7035/Customize |
| Type: |
Distribution Metering Box |
| Structure: |
Protection |
| Size: |
200(H)X200(W)X150(D)mm to 1400(H)X1000(W)X400(D)mm |
| Application Range: |
Electrical Distribution |
| Shell Protection Grade: |
RoHS,IP66 |
| Brand: |
Porta |
PROTA is a professional manufacturer, well-known of all kinds of distribution boxes in China, our products range includes: Metal wall mounting enclosures, top stainless steel enclosures, floor standing cabinets, knock-down cabinets, network cabinets, terminal boxes, MCB boxes, gland boxes, telephone boxes and so on.
As an ISO 9001 certified factory, Prota has produced enclosures IP rated enclosures from 55 up to 66, Our enclosures go through stringent quality control during in production and are picked by random for testing by our professional QC dept. All selected enclosures have passed RoHS test, got CE approval complying with EN62208 standard as well, furthermore, both the IP & RoHS certificates were issued by TUV lab in Shanghai China.
We have always insisted on follow the clients' needs, complied with the convenient, practical, safe and beautiful perspective of development and production since the establishment, so far we've well received favorable comments at home and abroad. We also undertake OEM, ODM production, welcome letter Call Advisory.
