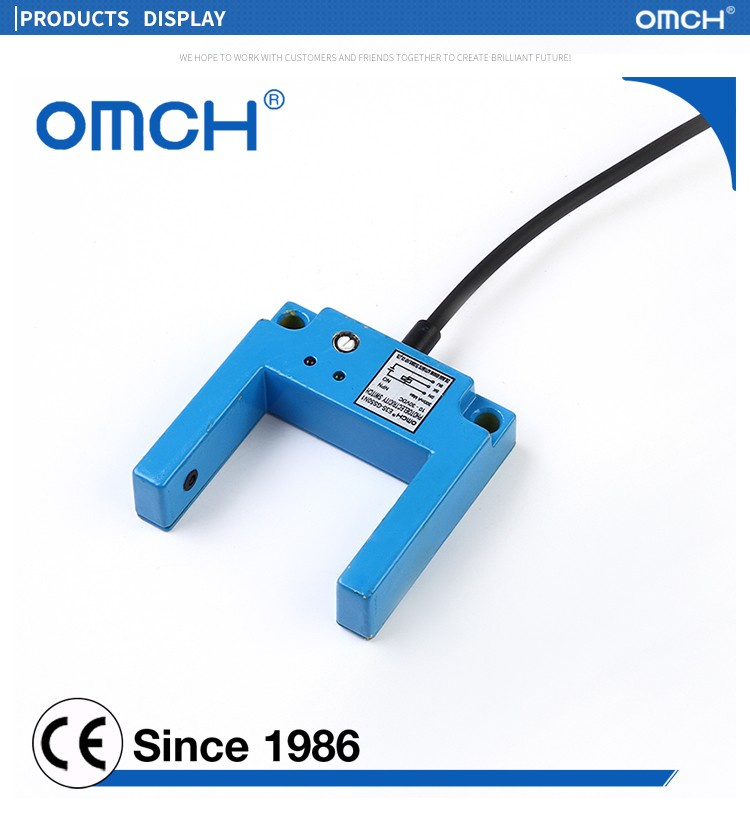

Metal Slot Optical Photoelectric Switch Sensor 50mm Detection

Dimension

20x52x72

Mounting way

Slot type

 Type

DC type

NPN

NO

E3S-GS50E4

NC

E3S-GS50E2

NO+NC

E3S-GS50E42

PNP

NO

E3S-GS50F4

NC

E3S-GS50F2

NO+NC

E3S-GS50F42

AC type

Two wire

NO

NC

Detection distance

50mm

Set distance

Opaque Object

Standard detection object

sensitivity adjuster

Response time

1ms

Connection delay

1.5ms

Light Source

Infrared light 660nm

Supply voltage

DC type: DC12-24V(6-36V) Impulse(p-p) 10% below

Ac type: AC110-220V (36-250V) 50/60Hz

Consumption current

N.P type:20mA below    A type:1.7mA below

Control output

N.P type:300mA below   A type:400mA below  J type: A below contact service life: 0.1 million times

Loop protection

N.P.D type: reversal connection protection, surge absorption, load short-circuit protection

A type: surge absorption

Ambient temperature humidity

During operation,storage: individually-30~+65(No freeze,no drew),

During operation,storage: Individually35~95%RH

Insulation resistance

50 MΩ about(DC500 megameter) between charging and housing

Withstand voltage

AC1000V50/60Hz 1 min between charging and housing

Temperature influence

Temperature range-30~+65,at+23,+/-15% detection distance

Temperature range-25~+60,at+23,+/-10% detection distance

Voltage influence

Inside+/-15%rated supply voltage range, at rated supply voltage value;

Inside +/-10% detection distance

Protection sturcture

IP65 ICE specification

material

Nickel plated brass(ABS); Detection surface(lens)PMMA
