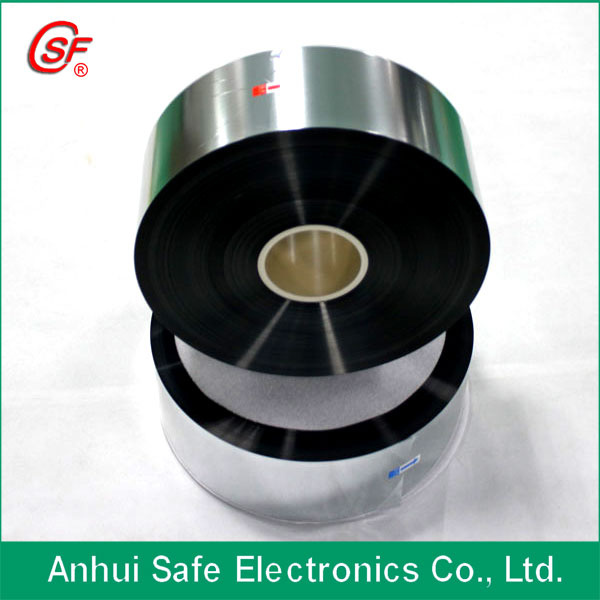

Metallized Polyester Film
| Price: |
US $ 6KG |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1KG |
| Pay Type: |
L/C,T/T,Western Union |
Capacitor film, metallized film , metallized polypropylene film ,
metallized polypropylene film for capacitor , capacitor grade metallized film ,
metallized film for capacitor use, MPP film , metallized polyester film ,
metallized capacitor film , metallised capacitor films.
Capacitor Polyester film for type
M-pet: 4, 5, 6, 7, 8, 9, 10, 12, 14micron
Aluminum/Zinc film with reinforced edge and Al/Zn Metallized film: 4, 5, 6, 7, 8, 9, 10, 12, 14 micron, all width, margin value: 2.5, 2.0, 1.5mm
Detailed Description Item: Metallized Film
Description:
1. Type
Al/Zn Metallized film
Al Metallized film
Safety Anti-explosion Film
2. Application
Applied to capacitors for power system, refrigerators and air conditioners
Construction
3. Aluminum/Zinc film with reinforced edge
4. Specification
Item unit nominal value
Roll mm roll diameter inner diameter 76
Outer diameter 150, 300 (The specific diameters can be customized. )
Thickness μ M 4, 5, 6, 7, 8, 9, 10, 12
Width mm 30, 35, 37.5, 40, 45, 50, 55, 60, 65, 70, 75,
80, 85, 90, 95, 100, 115, 120, 125, 130,
14, 17.5, 21, 26
Margin value mm 2.5, 2.0, 1.5
For more information,you can contact and view our website:
www.capacitorfilm.com
| Prod Model: |
MPET film |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Metallized: |
Alunimin |
| Thickness: |
4mic,5mic,6mic,7mic,8mic,9mic |
| Width: |
9mm-620mm |
| Film: |
Aluminum Film |
| Model Number: |
MPET |
| Margin: |
2.5mm,2.0mm,1.5mm |
| Md: |
2.7% |
| Td: |
0.1% |
| Type: |
Polyester Film Capacitor |
| Application: |
General Purpose |
| Capacitance: |
1-50uf |
| Package Type: |
Cartons |
Anhui Safe Electronics Co., Ltd. is a member of Green International Group. We mainly deal with AC motor capacitors, DC link capacitors, BOPP film (polypropylene film), MPP film (metalized film), inkjet PVC ID cards, polyester heat transfer film, PET film and other related products.

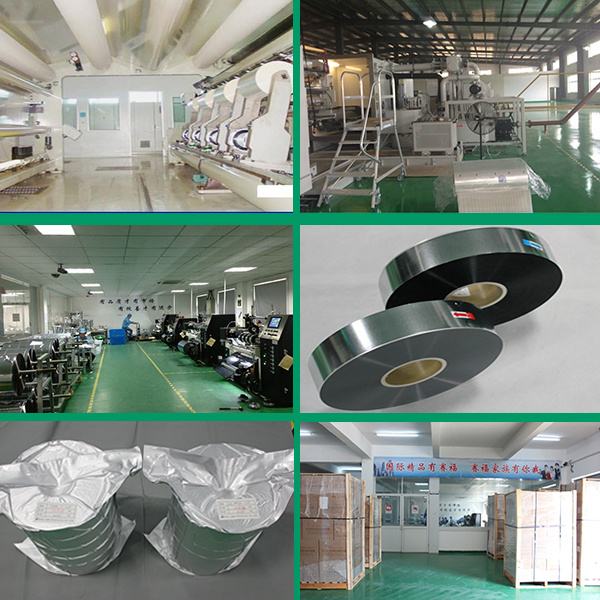

Our company has arranged the production of AC Motor Capacitors since 1999. Since the foundation of our company, the high-end slitters, the large-scale high-velocity winding machines, metal-spraying machines, automatic lines, automatic test lines and other advanced lines have been imported successively from Japan, Italy and Switzerland.
The production lines are state-of-the-art with internationally first-class quality. The annual output of all types of AC Motor Capacitors is 18 million pieces. We take the lead in this industry in China. There is a standard capacitor lab and calibration rooms for weight-and-measure gauges and test instruments in our company. We have got ISO9000 Quality System Certification and are endowed with considerable strong capability of technological development and quality control.
With one decade of experience accumulation and constant renovation, our company makes three key essential technological breakthroughs in the aspects of safety, endurance and temperature resistance. The products have all kinds of quality approvals to enter international markets such as CQC, UL, cUL, TUV and VDE. The products are suitable in diversified kinds of domestic and overseas prestigious-branded air-conditioners, refrigerators, compressors, washers, illuminators and other industries.
Our company is located in Tongling city-- ecological city of China. Our company adjoins to Shanghai, Nanjing and Ningbo and is close to traveling scenic spots of famous Huangshan Mountain and Jiuhuashan Mountain.
"good faith, serving the whole world" is our principle.
