Micro GPS Transmitter Tracker with High Pixel Camera
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
OCT600-CAM |
| Type: |
GPS Tracker |
| Use: |
Automotive&Hand Held |
| Operating Principle: |
Interferometric Type |
| Port Number: |
Multichannel |
| Model: |
Geodesic Type |
| Carrier Frequency: |
Dual-Frequency |
| Chip: |
SiRF |
| Screen Size: |
No Screen |
| Brand: |
Oner |
| Certification: |
Ce, FCC, RoHS |
Product Description

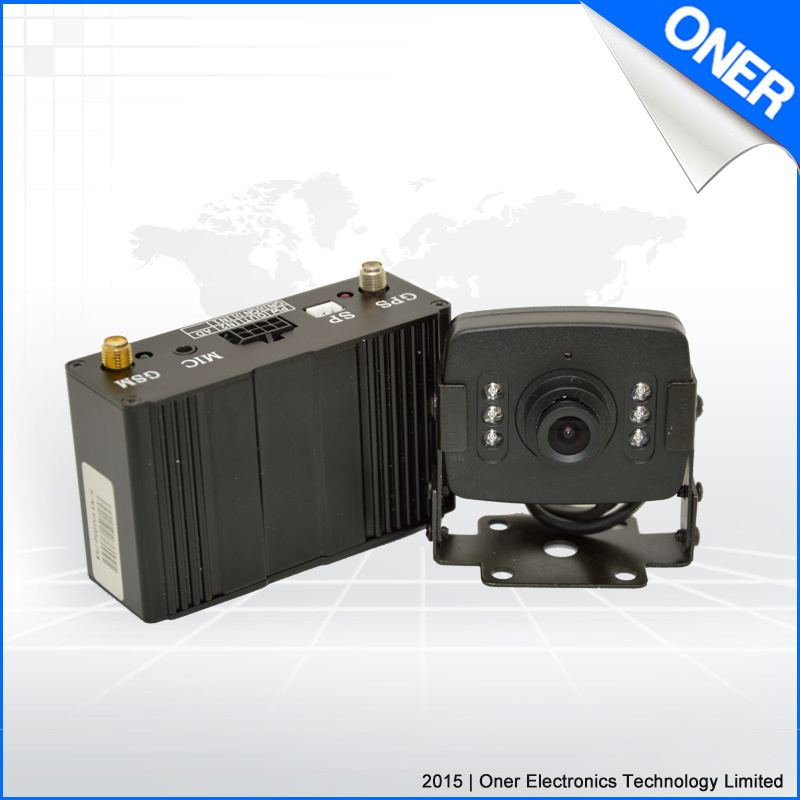

Micro gps transmitter tracker with high pixel camera
people use different alarm systems in order to protect the car and the one they care from bad things, and it brings not very good result, for example, device can send alarm message with time and location when the car is stolen, If device was removed, obviously, it is difficult for police to get back your car according to the last location and time, but at least it
will be better if you can see anything in the car. Now oner bring new solution for these cases---GPS MMS tracking solution, it will let you know what happen in your car in real time.Specification:Power supply +9V - +35V / 1.5A
Backup Battery 550mAh
Dimension 60mm x 85mm x30mm
Weight 145g
Temperature -20° to 55° C
GPS Chipset latest GPS SIRF-Star III chipset
GPS Sensitivity -159DbFeaturesReal time tracking
LBS Tracking
MMS tracking
Track by interval
Detail address inquiry
Google map link inquiry
Engine cut remotely
SOS emergency alert
Geo-fence alert
Movement alert
Over speed alert
External power cut alert
Voice monitoring(option)
Speed limitation
Arm/Disarm
Power saving mode
Working time setting
Engine detecting and report
SIM balance inquiry
Fuel monitoring (option)
Mileage calculation & setting
Firmware update OTA
Take photo
Take photo by interval (option)
Take photo when alarm active
2 ways communicationImprove protection to your car
Be able to know who stole your car, it will be very helpful for police to catch theft and get back your car.
Improve effeciency of catching theft
Police can take action immediately once getting photo of theft while car started illegally.
Improve fleet management
Be able to know situation of car, you can see what happen in the car in real time while deliverying or transfering.
Reduce unsafe driving behavior
Show who drive the car in such unsafe way, help fleet company to manage driver and reduce such driving befhavior.
Reduce management cost
Force drvier to drive the car sately, no over speed,reduce cost.

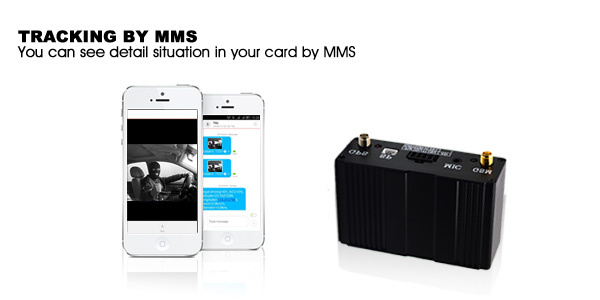

Taking photo
Control camera to take a photo in your car by comand
GPS tracking in real time
Online command controls to cars Details and historical report
Car immobile and recovery
Contorl car engine or fuel supply once it is stolen
LIVE TRACKING
For companies, location of their vehicles, asset, employees is what they want to know, and live tracking will tell you all in simple way.
SMS Live tracking report
Show the location (coordinate, speed, odometer, time) of your vehicles by SMS, you can get by command or call, click the map link, you also can find the car on map.
Online tracking report
Just need a click, you can see the location of any vehicle or all via your computer, as well as detail historical reports. demo:(http://www.24h-tracking.com ID: onertest, PSW: 123) (http://onergps.com ID: oner, PSW: 123 )
Mobile tracking service
It is the third way to track your vehicles, after login, you can see all info of your vehicles, no need to configure anything, you also can check history tracking via your phone.
Tracking by APP
Free APP for vehicles tracking, allow you to check the location of all vehicles in case of no GPRS network, it is suitable for companies owner to manage the vehhicles any place.
OCT600 supports multiple alarms setting and notification, you can get alert when things happen in time. SOS emergency alarm
Press the button in the device, your family, friends will get notification and offer help immediatelywhen
troubles happens like rob, accident, etc.
Crash alarm (option)
Take action at once for rescue after getting notification from the crashed vehicle. Immediate action will be grate help for people.
Tip: OCT600 built in high precision sensor, it can detect crashing all around.
Geofence alarm
Set arriving or leaving area, if any vehicle enters or leaves such area, you can get notification, that is helpful for fleet companies, to avoid vehicle entering dangerours place or going to another place rather than destination.
Over speed alarm
Sending alarm notification when the vehicle is speeding, fleet manager can call the drvier to slow down before getting speeding ticket.
Online Tracking System
OCT600 works with oneline tracking system ( http://onergps.com login: oner, password:123).
In this system, user can control all the vehicles in real time, include real time tracking, history play
back, route setting, driver management, POI, details reports, alarm setting, etc.
Real time tracking
User can do the live tracking via the platform,and know the exact location any where. See the vehicle in real time on Google earth satelite view, find your vehicle quickly and accurately.
History play
History records can be played back in the map. user can see each location of vehicle,and history records will be shown in the form at the same time while playing back.
Route setting
User can set the route on the map directly and asign to the vehicle, the vehicle should move according to the preset route, or else, the platform send out the divert alarm, it is helpful for fleet management.
FUEL MONITORING
Fleet managers may meet fuel problems many times, and they doubt why such things always happen; Why fuel run out so fast, what if the driver check fuel before the trip, that would not happen. In fact, there will be something unexpected, so it is important to do real time fuel monitoring. Now OCT600 supports analog input, you can connect with capacitance fuel sensor to get accurate fuel data, and the platform will show the fuel graph, you can see the daily fuel consumption, and know how to reduce cost accordingly.
Daily fuel consumption monitor
Current fuel level can be shown in the main interface of tracking system, you can know fuel of any vehicle, and all vehicle fuel consumption can also be shown in the graph report.
Fuel stolen alarm (option)
If fuel is stolen or lost, and then meet the preset value, a notification will be sent to you.
FLEET MANAGEMENT
OCT600 with tracking platform make fleet management be easy, for example, engine detection and mileage calculation will let you know the vehicle performance, and work time setting will help to manage driver and vehicles effectively.
Vehicle performance monitoring
Engine detection
Each time engine on and off, you can get notification, and the duration of engine working also can be recorded as a reference report, fleet company can make the arrangement of maintenance according to the engine working duration.
Mileage calculate & journey report
Calculate mileage of vehicles each journey and save in the report, fleet company is able to calculate the cost, fuel consumption, vehicle depreciation, etc during the journey, it is helpful in regular vehicle performance testing.
Idle warning
Driver will leave without turning off engine for a moment only, and this moment is the timing for theft to steal the car, fleet owner can get warning in the control room once it happens. A report will collect info of idle car, includes date & time, duration, driver, etc, fleet owner can make adjustment to vehicle and driver accordingly.
Additon Info
Base mileage setting
You can set base mileage to match with odometer in the car.
Idle fliter
When car is waiting for traffic light, it is normal that car stop but engine on, you can set a fliter to ignore case like this
FLEET MANAGEMENT
Fleet owner faces some problems for daily mangement of vehicles & drivers:
1) Overuse of vehicle
2) Over time complaint from drivers
3) Choas schedule of each vehicle
4) No way to avoid vehicle private use
Even if fleet owner have wrriten schedule for daily task, but is not able to monitor at each phase, and can not know if any other thing happen (like driving to another place for private purpuse).
Working time setting feature of tracker will offer
new solutions
Working time setting
Fleet owner can working time for the vehicle, and it is possible to set 3 working times for each vehicle in order to use in different situation.
Authorized driving notfiication
During the working peroid, each time driver start the vehicle, fleet owner will get notification one time and know which vehicle is on duty, as well as the driver, all drivers should work accordingly, reduce over time complaint.
Illegal driving alarm
If driver starts vehicle at non-working time, alarm will be sent to fleet owner continusly. onwer can stop it remotely, no worry about vehicle private use at night, and reduce overuse of vehicle and cost.
FLEET MANAGEMENT
Route setting, POI, navigation are another solution in fleet management, fleet can know if the vehicle is working according to the requirement.
Route setting and divert alert
Before daily task start, fleet onwer can set route for each vehicle according to the schedule in the system, driver should drive it at this route, or else, divert alert active and fleet owner can take action and warn the driver.
POI management
Generaly, fleet companies have their own warehouses or transit centers all the country, which can be set as POI in the platform, when the vehicle arrives any place, platform will active alarm, fleet owner can know if the vehicle move as the schedule.
Navigation
Driver has to go to unfamiliar place for delievery sometimes, fleet onwer can use it to guide the driver how to go, save time.
Addition Information
Another way to manage drivers and vehicle
Voice monitoring
Connect with MIC,fleet owner can hear the coversation in the vehicle, to monitor driver behavior.
2 ways communication
Talk with driver directly for task assignments.Connect with hand-free speaker, auto answer call from control room, no danager.
Daily
After using OCT600 to manage the vehicles and drivers, the cost of tracker is another thing that fleet owner care, there are some tips to save cost.
Power saving mode
device will enter power saving mode while vehicle is parking for a while. In this mode, device close GPRS connection and GPS chip, that mean device will go to sleep, no cost of GPRS, it can save power as well as cost.
SIM card balance inquiry
Check SIM card balance in the trackers, you can decide to use different way to track your vehicle ( power saving mode, longer tracking interval, etc) with reasonable cost.
Additional Info
Another way to save cost
Track by distance, No gprs cost if vehicle do not move over the preset distance.
Appendix
Specification
Physical specication Hardware GSM/GPS specfication
Power: +6V - +35V / 1.5A
Dimension: 60 x 80 x 30mm
Weight : 145g
Working Temp: -20° to 55° C
Humidity: 5% to 95%
Hot start: <1 sec., average
Warm start: <36 sec., average
Cold start: <36 sec., average
Hardware:
GPS tracker
Accessories:
GPS antenna
GSM antenna
Relay
I/O cable
MIC (option)
Speaker (option)
GSM/GPS specfication:
Quad-band operate GSM
(850/900/1800/190Mhz)
GPS SIRF-Star III chipset
(Sensitity: -159Db)Oner Electronics Technology Limited
