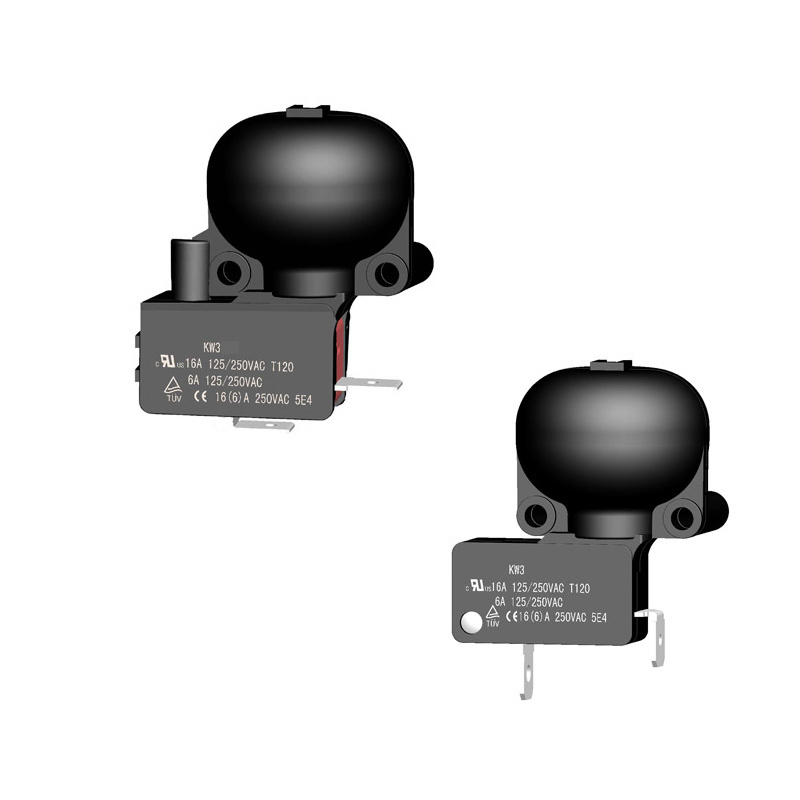

Micro Switch of Warmer Heater

Micro Switch of Warmer Heater
Price: Negotiable/Piece
Min Order: 100/Piece
Pay Type: T/T
Prod Model: kw3a
Wire Length: 98mm
Color: Black
Pressing Type: Push-Button
Protection: Waterproof
Size: Normal Size
Environment: ﹤250℃
Breaking Capacity: General Type
Breaking Form: Single Type

Product Description

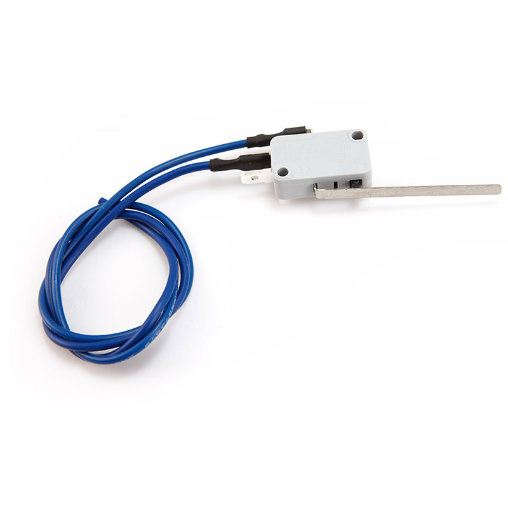

toneluck Micro switch with wire
toneluck Micro switch with wire
toneluck Micro switch with wire
toneluck Micro switch with wire

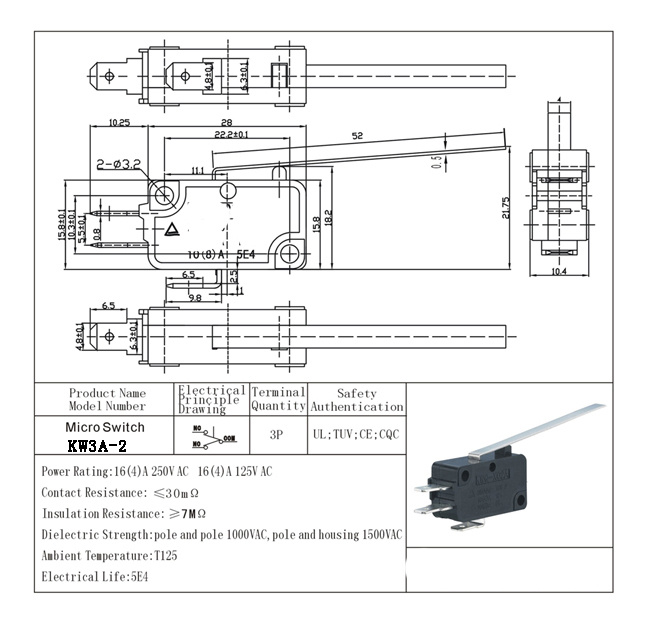

power rating:16(4)A 250VAC  16(4)A 125VAC
contact resistance:≤30mΩ
insulat resistance:≥7MΩ
Dielectric strength:pole and pole 1000VAC,pole and housing 1500VAC
ambient temperature:T125
Electrical life:5E4




power rating:3A 250VAC 5A 125VAC  5A 250VAC
contact resistance:≤30mΩ
insulat resistance:≥7MΩ
Dielectric strength:pole and pole 1000VAC,pole and housing 1500VAC
ambient temperature:T125
Electrical life:4E5



. Dongguan Avoa Electric Co., Limited located on the China guangdong, is specialized in producing electronics components, power switch, plugs & sockets, connectors applied to Household appliances, vacuum cleaners, sound sets. In addition, the company produces plastic-pressing (big, MID or small) and metallic-pressing parts, and may design all kinds of plastic die sets for our numerous customers also.

With a plant area of 5000 square meters and a building area of 5500 square meters, our company owns fully reinforced strength, complete test equipment inspecting methods and perfect quality system. Our products have passed the, CQC certificates of China Quality Certification center. Some products also passed UL Approbation of U. S. A or TUV Approbation of German Rheinland Technical Co., Ltd.

Our products are on sales everywhere domestically and are exported to Hong Kong, Taiwan, Europe and U. S. A For instance, the power switch of KBQ02B, KAG01A series of vacuum cleaner gain the UL certificate for the first time in the manufactory of China. So, the power switches were preferred by broad customers.

Our companys' essential principle is "Quality First and Reputation First", we will meet our customers' needs by the best quality and after-sales service. We cordially welcome the clients home and abroad to correspond and discuss with us and create the splendid enterprise hand by hand.
