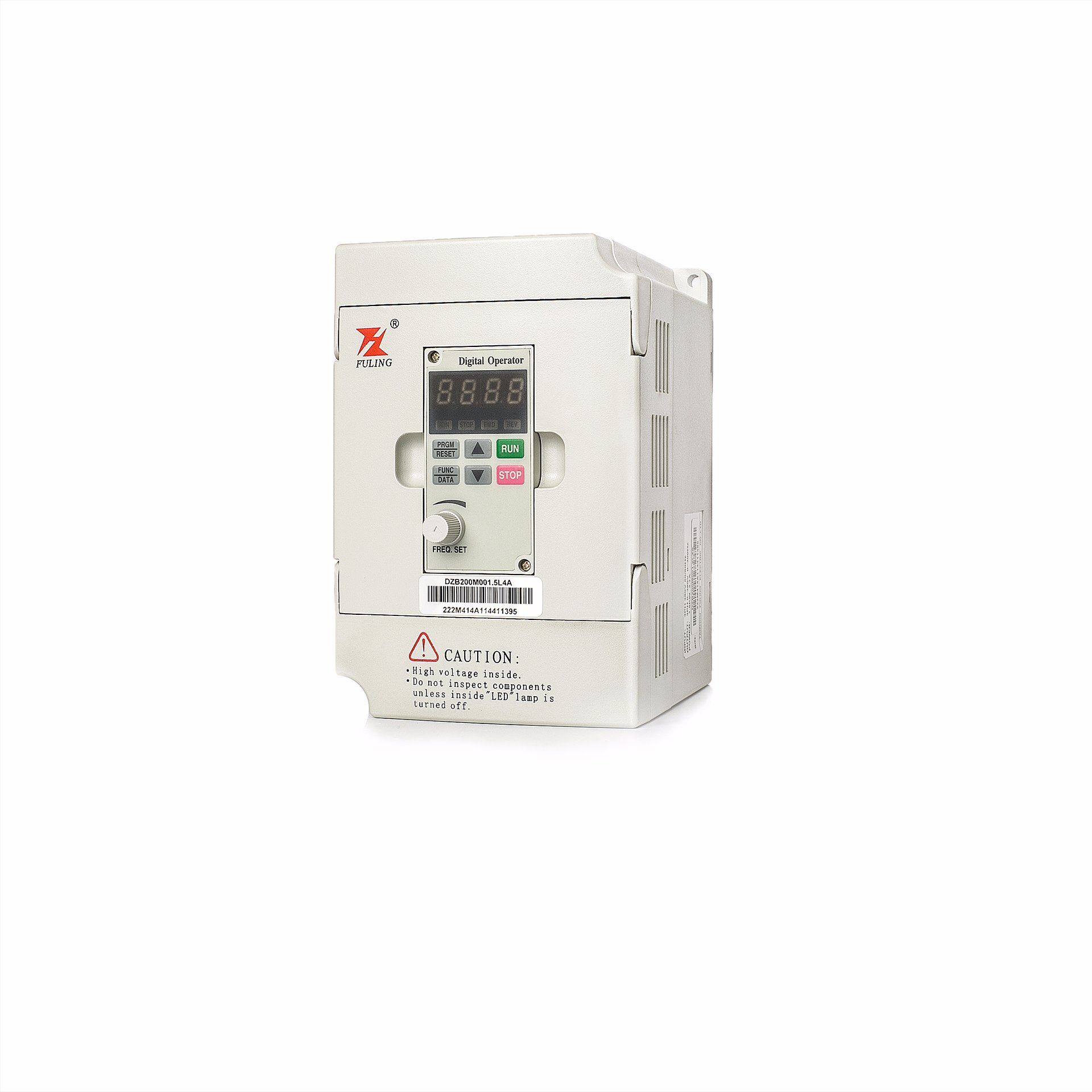

Mini Economy Frequency Inverter VFD Variable Frequency Drive AC Drive

Name: Mini Economy Frequency Inverter VFD Variable Frequency Drive AC Drive
Brand: all-electronics-online.com
SKU: 833201595
Availability: InStock
Rating: 4.4 (147 reviews)

Price:	US $ 68/Set
Min Order:	1/Set
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Quick Details

Model Number	DZB200M
Output Power	1 - 200KW
Output Type	Triple
Size	0~100000000
Weight	0~100000000
Input Voltage	110v/120v/220v/230v
Output Voltage	0~rated voltage
Type	DC/AC Inverters
Output Frequency	0~600Hz
Output Current	3.2A~1430A
Inverter control mode	Vector / VF
Inverter adopter motor	0.75kw /1.5kw
Color	white
Certificate	ISO9001/2008 / CE / TUV / SGS
Link of Transformation	AC-DC-AC
Main Circuit Type	Voltage
Switch Mode	PWM Control
Communications	RS485

Packaging & Delivery
Packaging Details: 0.75kw-18.5kw with carton box and 18.5kw-350kw with wooden case
Delivery Time: In 1~7 days for samples; 7~15 days after payment for order

Product overview

The mini inverter DZB200M is a sort of minitype inverter specially designed for light industry, and si widely popular among users due to its small volume, strong function and convenient installation. Its widely applied in textile, printing and dyeing, carving and food processing, etc.

Product features

1.Small and exquisite structure, and convenient installation.
2. Over-entering and down-out design is used, which is convenient to wire in the small control cabinet. The layout is regular and gorgeous.
3.Independent air flue is used , which is suitable for occasions with more dust.
4.Internally installed standard 485 communication functions.
5. Humanized design. The wire is convenient and durable.

Technical parameters
6. Input voltage:1AC220V±15% 3AC220V±15% 3AC380V±15%
7. Output power range: 220V:0.75kW~1.5kW,380V:0.75kW~2.2kW
8. Output frequency: 0~300Hz; user-defined is available if the frequency is above 600Hz.
9. Input frequency:47~63Hz,power factor≥95%
10. Source of operation instruction: given by panel, terminal and RS485 communication
11. Source of given frequency:given by panel figure, analog quantity, RS485 serial communications, multi-speed simple PLC and PID etc.
12.Overload capacity: 150% rated current 60s, 180% rated current 3s.

13. Carrier frequency:1.0kHz~15.0kHz,and can be automatically adjusted according to temperature and load characteristic.
14.Frequency resolution:the given digital value is 0.01Hz,and the analog quantity is given as the highest frequency plus 0.1%.
15.Torque elevation:manual torque can elevate 0~30%.
16.Inching operation:frequency range:0.0Hz~ maximum frequency of output,time of inching acceleration and deceleration:0~3600.0s
17.Simple PLC and multi-speed operation:as many as 8 speeds operation can be realized.
18.Automatic voltage regulation:automatically keep the output voltage stable during voltage fluctuations.

Applications

Spinning, food, small size machining center
Bearing processing industry; super meticulous machine, etc.

Prod Model:	DZB200M
Application:	High Frequency Converter Transducer
Output Type:	Triple
Principle Of Work:	Vector Control Transducer
Switch Mode:	PWM Control
Main Circuit Type:	Voltage
Brand:	Folinn
