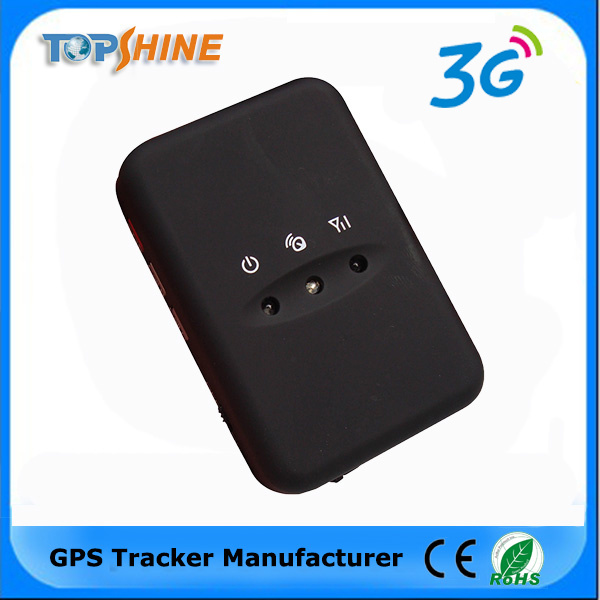

Mini Two-Way Communication SOS Person 3G GPS Tracker PT30 Products Overview PT30 is a personal remote position device, small size, build-in battery, easy to use. PT30 can be used as an emergency cellular phone and locator. It allows speed dialing of 3 numbers for 2-way voice conversation. PT30 sends alert and call the pre-defined number for immediate assistance. It is suitable for the care & protection & rescue of the elderly, children, patients, wild area explorer, tourists or pets etc. PT30 has good sensitivity and stable performance, tracking by web-based platform or by SMS commands. Application
* For person/pets/assets positioning and safety
* Two way locator
* Two way communication
* SOS emergency button
* History play back
Specification
Items | Specifications |
Dimension | 75*51*25mm |
Weight | 96g |
Input voltage | DC 4.5V~5.5V/400mA (mini USB port) |
Back-up Battery | 1900mAh/3.7V |
Power Consumption | 65mA standby current |
Operating Temperature | -20°C~75°C |
| |
Humidity | 5%~95% |
Work Time | working hours up to 41 hours consistently by set interval time 1 minute to send data to platform. |
LED | 2 LED lights to show GPS, GSM status |

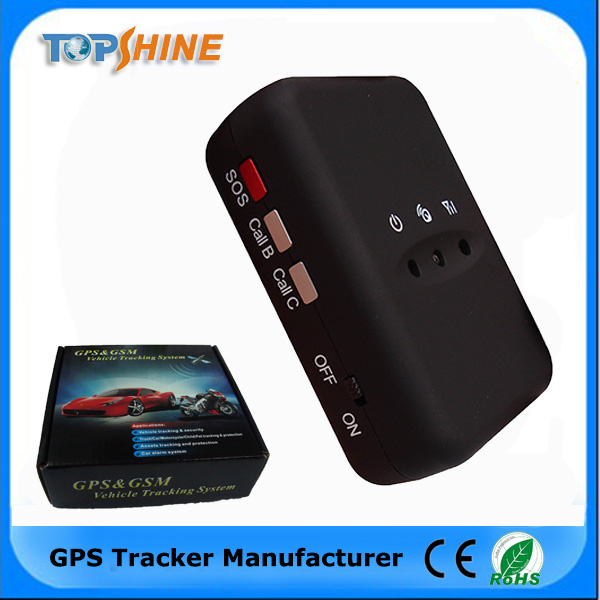

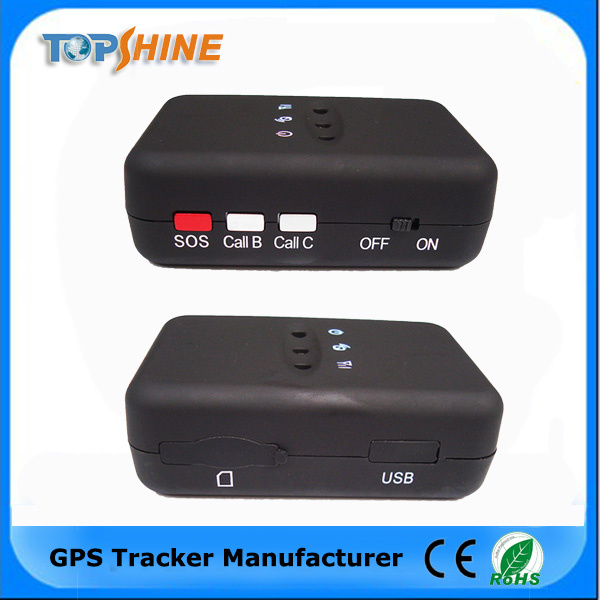

Button | 1 SOS, 2 Call and 1 power on/off |
Microphone | Default |
Memory | 2M Byte |
Sensor | Motion sensor |
GSM Frequency | GSM 850/900/1800/1900MHz |
GPS Chip | Latest GPS SIRF-Star III Chipset |
GPS Sensitivity | -159dB |
Positioning Accuracy | 10meters, 2D RMS |
Neutral | Dimension (mm) | Weight (KG) | Capacity |
Box | 145*140*45 | 0.25 | 1 set |
Carton | 470x340x310 | 9 | 30 sets |
Feature & Function
* No installation, mini size, easy taken
* Track by SMS/GPRS (TCP/UDP)
* Track on Demand
* Real Time tracking via the web-platform
* Track by time Interval
* Two-way conversation
* SOS panic button
* Built-in backup 1900mAh battery, working hours up to 41 hours consistently by set interval time 1 minute to send data to platform.
* Geo-fence Alarm
* Built-in sensor for power saving & GPRS flow saving mode (sleep mode)
* Speeding Alarm
* GOOGLE map URL for location via SMS, which shows you location on map via mobile phone.
* Built-in 2MB memory & position logging capacity up to 10,000+waypoints even no GPRS signal
* Get the physical address name via SMS.
* Three buttons for making phone call and/ or sending message

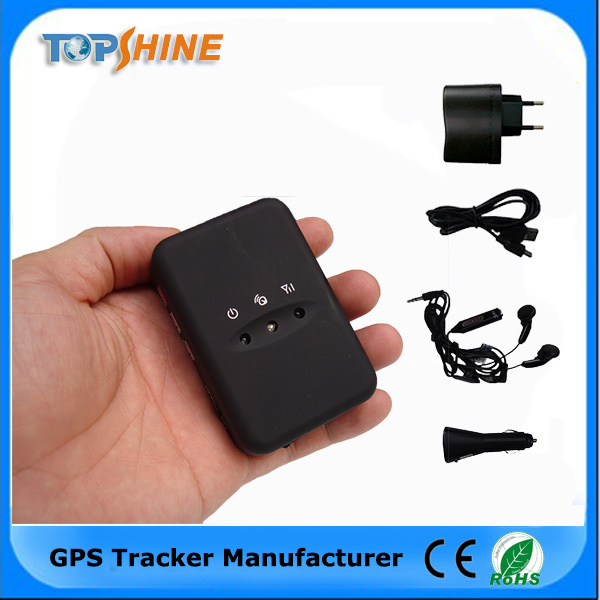

Package and Accessories PT30 unit: 1 unit
Earpiece & Microphone : 1 piece
Car Charger : 1 piece
Wall Charger : 1 piece
Welcome to test our free tracking software
PC: www.track-car.com
Mobile Phone: http://www.track-car.com/M
User name: hongkong
Password: 123
Our advantage
* Provide 2 free Tracking Platfrom (PC base & Android APP) lifelong. No charge.
* 2 years warranty
* All of our products have CE & RoHS & SGS certification
* Supply OEM&ODM service.
* Our engineer team could customize your personality tracking platform
* Professioal R&D team provide Customization and after-sale service lifelong .
* 100% made of industrial-grade component,GSM module have certified(CE2200)and with legal IMEI code.
Payment & Shipment:
Payment Term: PayPal /western union /TT
Shipping Term: DHL /Fedex /TNT /ARAMEX/EMX
Lead time: Samples within 1 days of delivery.bulk production within 5-7days of delivery.

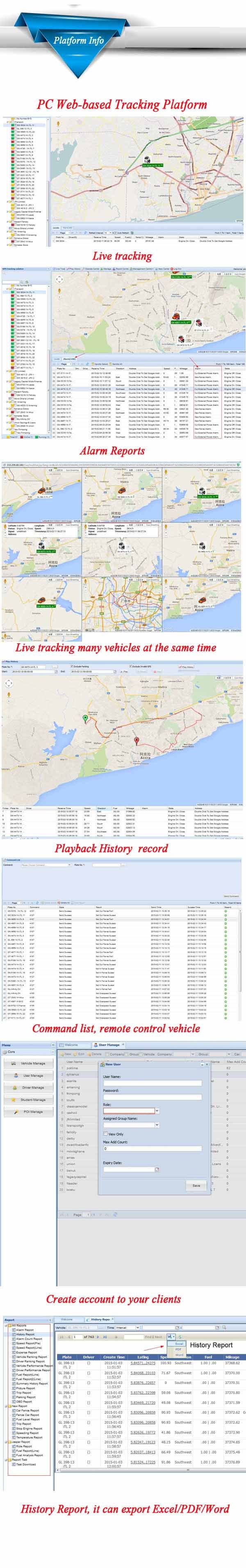

GPS tracking platform information
