1.Description

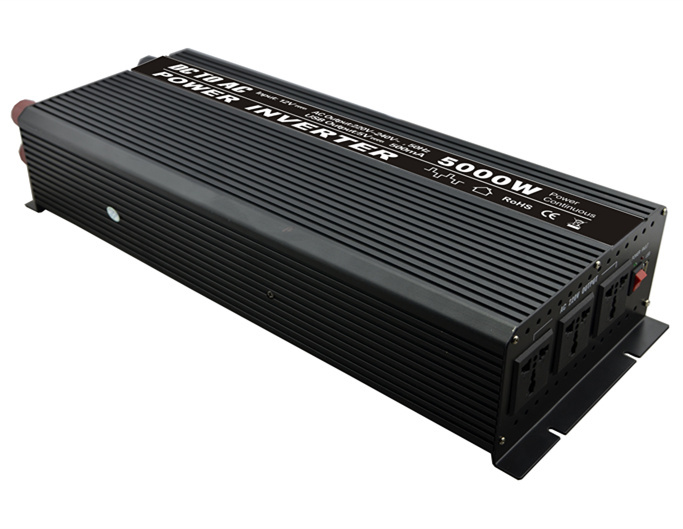

This power inverter is modified sine wave inverter which converts DC power to AC power. Full power inverter with strong protections. Its output voltage is always within 10% of rated voltage until it shutdown for overload or other reasons.
2.Features
1. Protections: low-voltage, over voltage, over load, over temperature.
2. Isolated circuit, strong impact resistance, constant voltage and stable output, low-interference.
3. Advanced automatic constant circuit, prolong battery life.
4. Perfect protection against battery under voltage, overload, short-circuit.
5. Microprocessor control guarantees high reliability.
6 .Can work with inductive load such as air conditioner, motor door and so on.
7. The special design of circuit and tough components protect the power inverter from being easily damaged, even when the starting power of that equipment is more than 3 times of that of the inverter.
8. Having grounding devices to improve safety and excellent component to lower interference; inner fan is intelligent and will not work until the wattage reaches 1/3 of inverter.
9. With 100% full power, efficiency reaching up to 85%.
10. Isolated output.
11. Soft start.
12 .USB charging port +5VDC, 500mA.
3.Parameters
| Model | XA-500012 | XA-500024 |
| Input Voltage | DC 12V | DC 24V |
| Working Voltage | DC 9.5V-15.5V | DC 20-30V |
| Input Current | 416A | 208A |
| Conversion Efficiency | >85% |
| Continuous Power | 5000W |
| Peak Power | 10000W |
| Output Voltage | AC 100V-120V/210-240V |
| Output Current | 45A/22A |
| Output Frequency | 50Hz-60Hz |
| Wave Form | Modified Sine Wave |
| USB Output Voltage | DC 5V(800mA) |
| Thermal Protection | ≥70ºC |
| Operating Temperature | 0ºC~40ºC |
| Cooling | By Intelligent Fan |
| Under Voltage | 10±1V | 20±1 |
| Over Voltage | 15±1V | 30±1 |
| Protections | Undervoltage: LED red light, buzzer alarm, restart recovery |
| Overvoltage: LED red light, restart recovery |
| Overload,high temperature: LED red light, restart recovery |
| Reverse connect: Blown fuse |
| Net Weight | 7500g |
| Gross Weight | 8000g |
| Size | 480*200*100mm |
| Carton | 610*545*335mm 4Pieces/Carton |
4. Payment
We accept T/T, Paypal, Western Union,and others. You can choose the one you like. If you want other payment terms please let us know before your order.
5.Services
1.All of our products have proceeded aging test before shipment and we guarantee to use our products safety
2.Support imprint your logo on products and let your logo shine anywhere
3.OEM orders are warmly welcome!
6.About Our Company
We are specializing in manufacturing power inverter. Since our establishment, we have persisted in traditional production technology and attracted elites from foreign sanitary ware market. We are always in the leading position of the domestic market in this field. With rapid development, we have improved and stabilized the quality of our products. Simultaneously, our staff members have emphasized on the quality, design and development of products.
Yueqing Yongmao Power Co., Ltd. is an innovative scientific and technological enterprise, specialized in integrating the R&D, manufacturing, selling and serving for power inverter ( solar, wind and home system), we can provide the wide power from 150W to 6000W, the products of our company are widely used in various fields as new energy generation, electricity supply, telecommunication, aerospace, national defense, transportation and scientific research institutions etc.
With rich experience in technique researching, designing, manufacturing process, quality control, before-after sale service for power supply products, the company becomes an important base for power supply products at home and abroad, enjoying a high reputation and good popularity.
Good quality, best price and better technical support and service, make Yueqing Yongmao Power Co., Ltd. As your most valuable cooperator in China.
Our enterprise purpose: Trusted partner of customers, home for growth of employees, excellent member of industry.
Enterprise mission: High-quality suppliers in the electronics industry.
Enterprise core values: Forge ahead, solidarity and farsighted, l earning continuously.
Management philosophy: To inspire individual potential, Progress together with staff; Improve product quality and achieve win-win with customers; Unmoved in development goals, go on with the world.
Create value for customers, help growth of employees, hold on social responsibility. Yongmao advocate for employees to create a harmonious and pleasant working and living environment, fully stimulate the creativity and sense of being masters. Yongmao actively give financial aid to students, make donations to earthquake disaster area, and involved in all kinds of charitable activities and public utilities, such as poverty alleviation. We actively contribute to the community, truly live up to our belief "change oneself with its growth and to return society with achievement"
