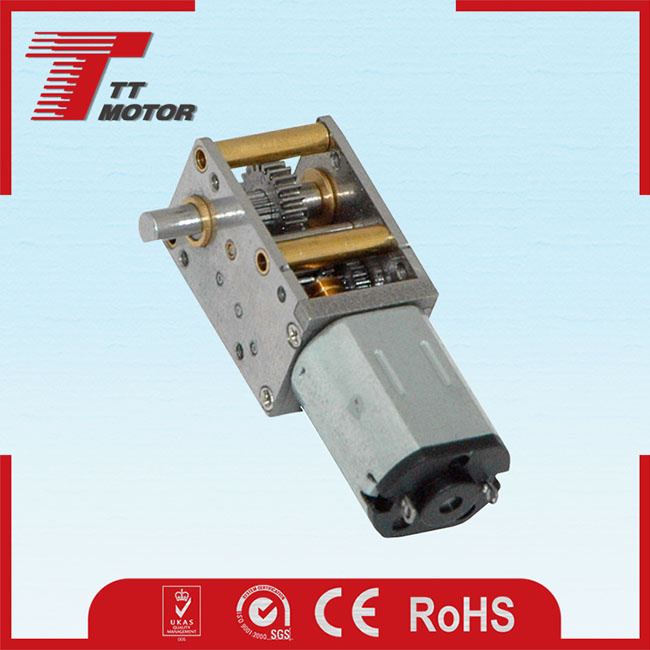

More reliable Smart Metering low speed DC worm gear motor

More reliable Smart Metering low speed dc worm gear motor

Main Features
1.OEM/ODM 12*20mm worm gearbox plus N30VA permanent magnet DC motor
2.Small size dc gear motor with low speed and big torque
3.12*20mm gear motor provide 0.1Nm torque and more reliable
4.Suitable to small diameter, low noise and big torque application
5.DC Gear motors can match encoder, 3ppr
6.Reduction ratio:41,82,95,190,219,438,504,1007


Model:Motor TWG1220-N30VA
TFF-N30VA-09210	Rated voltage:2.5V DC	Rated speed:4050r/min	Output power:0.1W
	No-load speed:5200r/min	Rated torque:2.0g.cm	Stall torque:8.5g/cm
	No-load current:20mA	Rated current:60mA	Stall current:0.25A
TFF-N30VA-09190	Rated voltage:6.0V DC	Rated speed:10700r/min	Output power:0.35W
	No-load speed:12500r/min	Rated torque:3.0g.cm	Stall torque:18g/cm
	No-load current:25mA	Rated current:95mA	Stall current:0.5A
TFF-N30VA-06350	Rated voltage:12V DC	Rated speed:10700r/min	Output power:0.35W
	No-load speed:12500r/min	Rated torque:3.0g.cm	Stall torque:18g/cm
	No-load current:12mA	Rated current:45mA	Stall current:0.25A

Gear motor technical data :TWG1220-N30VA-09210-XXX

Reduction ratio	41	82	95	190	219	438	504	1007
Length mm	20	20	20	20	20	20	20	20
No-load speed rpm	120	60	53	26	23	11	10	5
Rated speed rpm	100	50	43	21	19	9	8	4
Rated torque kg.cm	0.05	0.1	0.11	0.22	0.24	0.48	0.5	1.0
Max.momentary tolerance torque kg.cm	0.21	0.4	0.5	1.0	1.1	2.0	3.0	3.0

Gear motor technical data :TWG1220-N30VA-09190-XXX

Reduction ratio	41	82	95	190	219	438	504	1007
Length mm	20	20	20	20	20	20	20	20
No-load speed rpm	300	150	130	65	56	28	25	12
Rated speed rpm	260	130	110	55	49	24	21	11
Rated torque kg.cm	0.07	0.14	0.17	0.34	0.36	0.7	0.8	1.0
Max.momentary tolerance torque kg.cm	0.5	1.0	1.0	2.1	2.2	3.0	3.0	3.

Gear motor technical data :TWG1220-N30VA-06350-XXX

Reduction ratio	41	82	95	190	219	438	504	1007
Length mm	20	20	20	20	20	20	20	20.0
No-load speed rpm	300	150	130	65	56	28	25	12
Rated speed rpm	260	130	110	55	49	24	21	11
Rated torque kg.cm	0.07	0.14	0.17	0.34	0.36	0.7	0.8	1.0
Max.momentary tolerance torque kg.cm	0.5	1.0	1.0	2.1	2.2	3.0	3.0	3.0


Product Application
Windows or doors electric locks, micro hoist, Garbage disposal, water IC CARDS, toys and gifts, figer - electronic locks, optical devices,
Card machine, robot, towel machine, office equipment, household appliances, automatic actuator,etc.


Other Applications:
Business Machines:	ATM, Copiers and Scanners, Currency Handling, Point of Sale, Printers, Vending Machines.
Food and Beverage:	Beverage Dispensing, Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Home Entertainment and Gaming:	Gaming Machines, Video Games, Optical Disk Drives, RC and Power Toys.
Home Technologies:	Home Ventilation, Air Purifiers and Dehumidifiers, Range Hoods, Washers and Dryers, Refrigerators, Dishwashers, Floor Care, Whirlpool and Spa, Showers, Smart Metering, Coffee Machines.
Lawn and Garden:	Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers.
Personal Care:	Hair Cutting, Hair Care, Massagers.
Power Tools:	Drills and Drivers, Sanders, Grinders, Polishers, Saws.
Camera and Optical:	Video, Cameras, Projectors.

Packing & Delivery
Packaging: single carton packing, 100 pieces per box.
Shipping time:
DHL: 3-5 working days ;
UPS: 5-7 working days;
TNT: 5-7 working days;
FedEx: 7-9 working days;
EMS: 12-15 working days;
By Sea: Depends on which country

Our Company
TT Motor (HK) Industrial Co., Ltd has been specializing in micro motors, gear motors and their respective parts since 2000.
Our products are widely used in entertainment systems, automobiles, home and industrial appliances and tools and many others. Our products are dependable and long-lasting, and backed by years of experience. We export 98% of our output worldwide.
By leveraging our hard-won reputation for honesty, dependability and quality, TT Motor aims to continue as a pioneer in the sales overseas by seeking global partners. If your company is an end-user of micro-motors, a distributor or an agent, please contact us. We look forward to being able to work together with you in the near future.

FAQ
Q: How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production → cargo ready → balance/delivery → further cooperation.
Q: How about Sample order?
A: Sample is available for you. please contact us for details. Contact us
Q: Which shipping way is avaliable?
A: DHL, UPS, FedEx, TNT, EMS, China Post,Sea are available.The other shipping ways are also available, please contact us if you need ship by the other shipping way.
Q: How long is the deliver?
A: Devliver time depends on the quantity you order. usually it takes 15-25 working days.
Q: My package has missing products. What can I do?
A: Please contact our support team and we will confirm your order with the package contents.We apologize for any inconveniences.
Q: How to confirm the payment?
A: We accept payment by T/T, PayPal, the other payment ways also could be accepted,Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.
