MPO/MTP/FC/Sc/LC/St/MTRJ/E2000/MPO/DIN/D4/SMA Types Fiber Optic Adapters

Prod Model:	ROP-FC/ST/SC/LC Types Adapters
Jacket Color:	Yellow,Orange,Red,Black,Blue,White,Brown...12color
Cable Diameter:	0.9mm, 1.6mm, 1.8mm, 2.0mm, 2.4mm or 3.0mm
Out Jacket:	PVC, LSZH, Om3, Ofnr or Ofnp or Plenum
Fiber Type:	Chinese Corning Fiber or U.S. Corning Fiber or Yof
Certificate:	Ce/RoHS/ISO9001
Cable Length:	0.3m,0.5m,1m,3m,5m,10m,15m,25m or Customized
Fiber Sort:	Multimode G.651; Singlemode G.652abcd,G653,G654.
Connections Insertion Loss:	0.2dB
Testing Control Standard:	100% Il/Rl Testing Before Every Shipment Loading.
Applications:	Fiber Distribution Frame; Network Equipment; Fiber
Transmission Medium:	Single-Mode
Number Of Cores:	Single-Core
Ferrule Endface:	APC
Structure:	MPO/MTP/FC/Sc/LC/St/MTRJ/E2000/MPO/DIN/D4/SMA
Application:	Fiber Optic Communication
Light Source TYPE:	1310/1550nm
Connector Type:	MPO/MTP/FC/Sc/LC/St/MTRJ/E2000/MPO/DIN/D4/SMA

Product Description

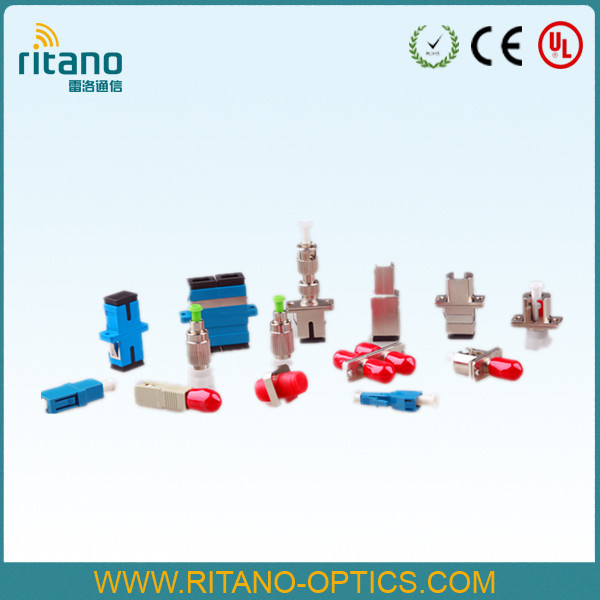

MPO/MTP/FC/SC/LC/ST/MTRJ/E2000/MPO/DIN/D4/SMA Types Fiber Optic Adapters

Application:
* Local area network;
* CATV system;
* Telecommunication networks;
* Active device termination;
* Local Area Networks (LANs);
* Data processing networks;
* Test equipment;
* Premise installations;
* Wide Area Networks (WANs).
Features:
 IEC61754-7 & GR-1435-CORE compliant.
 Modular design, plug-locking structure,easy for test,Install,remove and adjust.
 Usually,single MTP / MPO connectors typically can accommodate 12 or more fiber,
 1U height wiring space can accommodate up to 96 LC optical interface, Section.
 Saving Cabinet and rack space, easy cable management
 Kinds of fiber,cable available,to meet different customer needs.
 Can choice of male,female.Achieve precise positioning with the adapter connected via
 Pin-pin positioning function,high stability.
 Multi-core ferrule, small size, high speed and high capacity to meet the needs of optical
 fiber communication systems and high-efficiency high-density interconnect wiring.
 For future network infrastructure, highly scalable, supports Ethernet and Fiber Channel
 requirements 10/100-1Gbps.
Specifications:

	Male(with Pin),Female(without Pin)
Ferrule type	Standard SM,Low loss SM;Standard MM,Low loss MM
Fiber core	4core,8core,12core,24core
Housing color	Green(SM),Beige(MM),Yellow(SM Low loss),Blue( OM3 50/125 )
Polishing way	PC,APC
Cable type	Ribbon cable,Ribbon fiber,3.0mm Mini cable(250um12F,24F),0.9mm cable

Test requests:
a.Endface request:

400 X	Defect description		Allow quantity
Fiber(9um,50um,62.5um)	White scratches	≤3um	No limited
	Spot	≤2um	5 PCS
	Defect	/	No allowed
Cladding (62.5-125um)	White scratches	≤3um	No limited
		≤5um	1 PCS
	Black scratches	≤3um	2 PCS
	Black spot	≤2um	No limited
		≤5um	3 PCS
	Defect	≤2um	Around no limited
		≤15um	Total length is less than the side length 1/4
	Plastic ring	/	No limited

b.Performance:

MPO/MTP		SM standard ferrule	SM low loss ferrule	MM standard ferrule	MM low loss ferrule
IL Loss	Typical	0.35dB	0.20dB	0.35dB	0.20dB
	Max	0.75dB	0.35dB	0.65dB	0.35dB
RL Loss		APC≥50dB		≥ 25dB	≥ 35dB
		PC≥40dB
Repeatability		≤0.30dB(Plug more than 500 times)		0.30dB(Plug more than 1000 times)
Interchangeability		≤0.30dB(With either a matching connector)
Tensile strength		≤0.30dB(Maximum tension 66N)
Shock		≤0.30dB(10~55Hz)
Temperature Range		-40°C ~ +75°C

c.Interference indicators:

MPO/MTP Connector	Dimension 3D Test
Radius of Curvature	X ≥2000mm,Y ≥50mm
Fiber Height	1000~4000 nm
Endface Angle	X ±0.3°,Y ±0.3°
Core Dip	±300nm

d.Length Tolerance:

Length(M)	Tolerance
≤10	+ 10CM
10	+ 15CM
>30	+ 10%

What Ritano can offer:
* Quality always comes first;
* Standard quality tests check of all types of products before shipment;
* Responsible for after-sales service;
* Aiming to get repeat orders from 90% customer after the trial orders;
* Making progress with customers together.

Specifications subject to update without notice.


Our advantages:











FAQ:
1.What is our Promise?
RITANO is committed to providing the world's high quality Fiber Optic Communications Products at a competitive price while maintaining world-class service to all our customers.
2.What is our Service?
Every RITANO employee is dedicated to providing service that goes beyond the norm.
From doing special searches of hard to find items to the everyday tasks like answering the phones;we do it better,nicer,faster,all for your convenience and confidence in RITANO.

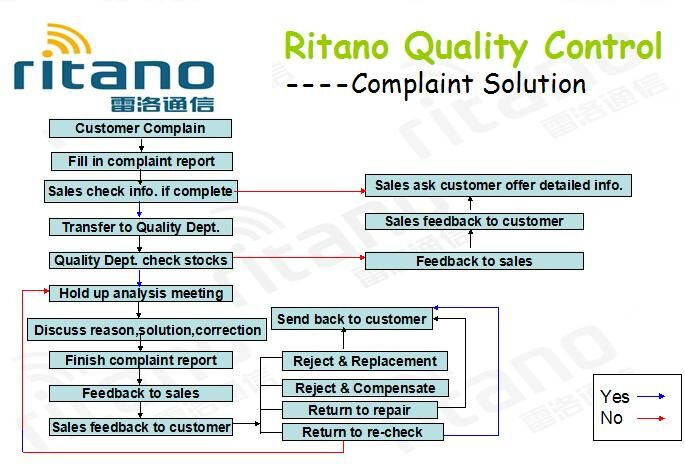

3.What is Ritano's Quality Control?
At RITANO,our standards are high,and this is reflected in the products material we carry from the most respected manufacturers in the world.

Marks: 1.APC with green boot; RITANO OPTICS's standard as follows(we can also make by customer's requests).

Connector  Type	SM/MM	Diameter	Simplex	Duplex	Marks
FC connector	SM	0.9mm	Blue boot	\	N/A
		2.0mm	Blue boot	Blue & Yellow boot
		3.0mm	Blue boot	Blue & Yellow boot
	MM	0.9mm	Black boot	\
		2.0mm	Black boot	Red & Black boot
		3.0mm	Black boot	Red & Black boot
SC connector	SM	0.9mm	Blue boot	\	Duplex with clips
		2.0mm	Blue boot	Blue & Yellow boot
		3.0mm	Blue boot	Blue & Yellow boot
	MM	0.9mm	Beige boot	\
		2.0mm	Beige boot	Red & Black boot
		3.0mm	Beige boot	Red & Black boot
LC connector	SM	0.9mm	White boot	\	Duplex with clips
		2.0mm	White boot	White boot
		3.0mm	White boot	White boot
	MM	0.9mm	Beige boot	\
		2.0mm	Beige boot	Beige boot
		3.0mm	Beige boot	Beige boot
ST connector	SM	0.9mm	Blue boot	\	N/A
		2.0mm	Blue boot	Blue & Yellow boot
		3.0mm	Blue boot	Blue & Yellow boot
	MM	0.9mm	Black boot	\
		2.0mm	Black boot	Red & Black boot
		3.0mm	Black boot	Red & Black boot

4.What is Ritano's Package & Shipping,Trade Terms?
Shipping:
1. FedEx/DHL/UPS/TNT/EMS express Door-Door service;
2. By Air or by Sea for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods;
4. Delivery Time:within1~2 days for samples;within3~5 days for Official order.
Payment Terms:
We require prepaid authorization to PayPal,Western Union(For Small Amount) L/C or T/T.To expedite your initial order you may wish to send payment by T/T or use a Paypal,after done,send us the bank copy for finance.
Package Information:
With Customized Neutral Stable Carton
(Size:54*39*34cm,42*37*42cm,51*15*15cm,39*20*26cm,34*23*17cm for Choose)
5.What is the Ritano's Returns and Repairs?
Any discrepancy or claims for damage must be made within 7 days after you received the goods.If shipment was via FedEx agent or a common carrier,properly note the damage on the shipping receipt,and immediately request an inspection. If your parcel appears to be lost,call and we will trace the shipment or re-ship as soon as possible.
All returns must be pre-authorized and clearly marked "returned goods" and returned within 10 days (customer is responsible for all return shipping costs).
All repairs or returns must be pre-arranged through RITANO's Customer Service Manager. Please do not return any goods without prior authorization,thanks in advance.
6.Can we get support if we have our own market position?
Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
7.What is Ritano can offer?
Quality always comes first;
Standard quality tests check of all types of products before shipment;
Responsible for after-sales service;
Aiming to get repeat orders from 90% customer after the trial orders;
Making progress with customers together.
Our Vision:
To be dedicated to service customers excellently in response to their needs and expectations.We are passionate about the customers and are working meet to their needs and expectation in providing telecommunication solution effectively and efficiently.
Our Strategy:
We wish to build long-term relationships with our valuable customers.With their support,we aim to maximize the potential of our business,through a combination of enhanced quality of service,creative marketing,innovative pricing and cost efficiency.
8.Why choose Ritano?
1.We are Alibaba Assessed 5 years Gold Supplier;
2.We are a ODM/OEM manufacturer,we can provide better production capability,better quality control,Faster delivery time,Better After-sales Service;
3.R&D Workshop: we are specialized in new products study,engineering drawings make,samples prepared and the small quantities working,there's around 32people,3engineers, working area around 1200square meters;
4.Powerful technical support;
5.100% QC inspection before shipment.
