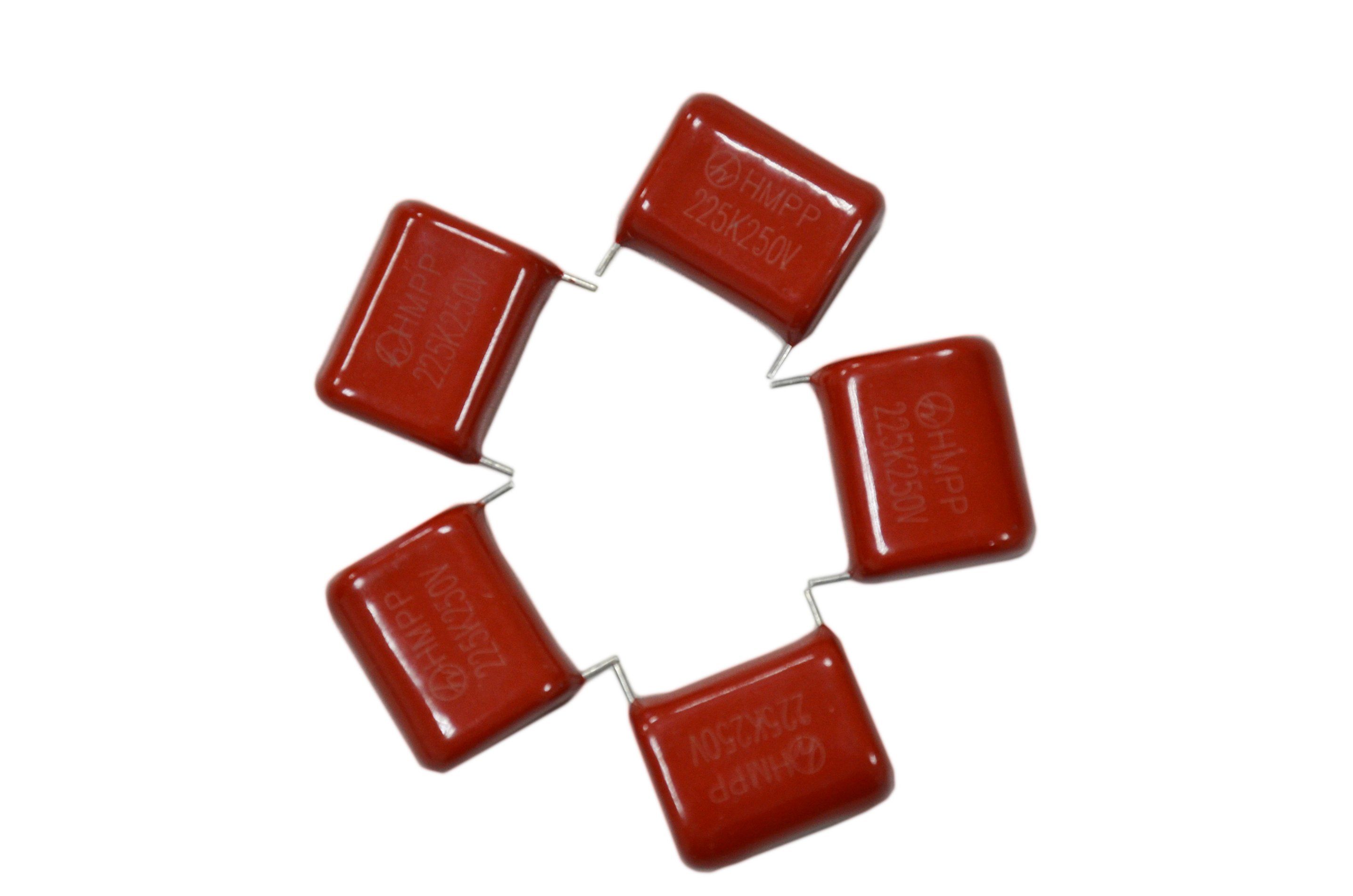

Mpp Metallized Polypropylene Film Capacitor with Powder Coating

Name: Mpp Metallized Polypropylene Film Capacitor with Powder Coating
Brand: all-electronics-online.com
SKU: 806539935
Availability: InStock
Rating: 5 (24 reviews)

Price:	US $ 0.0151-0.0175/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MPP CBB21
Reference Standard:	GB/T 14579(IEC 60384-17)
Climatic Category:	40/105/21
Rated Temperature:	85c
Rated Voltage:	100V 250V 400V 630V 1000V 1250V
Capacitance Tollerance:	+-5% +-10% +-20%
Type:	Polypropylene Capacitor
Application:	General Purpose
Package Type:	Through Hole
Capacitance:	0.001UF~3.3UF

Product Description

Product Descrption

Product Description

Super Quality Metallized polypropylene film capacitor cbb21 125j 400v MPP

Features

1. Metallized polypropylene structure
2. Low loss at high frequency
3. Small inherent temperature rise
4. Flame retardant epoxy resin powder coating (UL94 V-0)

Typical Application

1.Widely used in high frequency , DC,AC and pulse circuits
2.Providing optimum performance with small size in S-correction circuits for colour TV set
3.Specially designed for S-correction circuits of large screen monitor and colour TV
4.Suitable for the situation where applies high frequency and high current pulse

Specifications

Reference Standard GB/T 10190 (IEC 60384-16)

Climatic Category 40/085/21

Rated Temperature 85ºC

Rated Voltage 100V,160V, 200V,250V,400V,630V,1000V,

Capacitance Range 0.001uf~3.3uf

Capacitance Tolerance ±5%(J) , ±10%(K) , ±20%(M)

Voltage Proof 1.6Ur(5s)

Dissipation Factor ≤0.1%(20ºC,1KHz)

Insulation Resistance ≥30 000MΩ, Cr≤0.33uf ≥10 000s Cr>0.33uf (20ºC,100V,1 min)

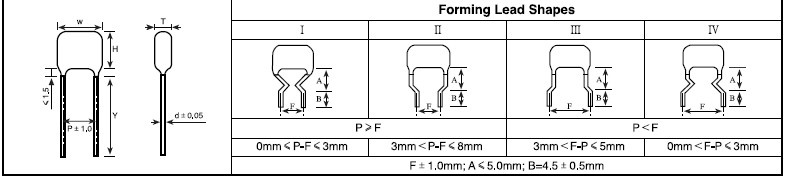

Outline Drawing

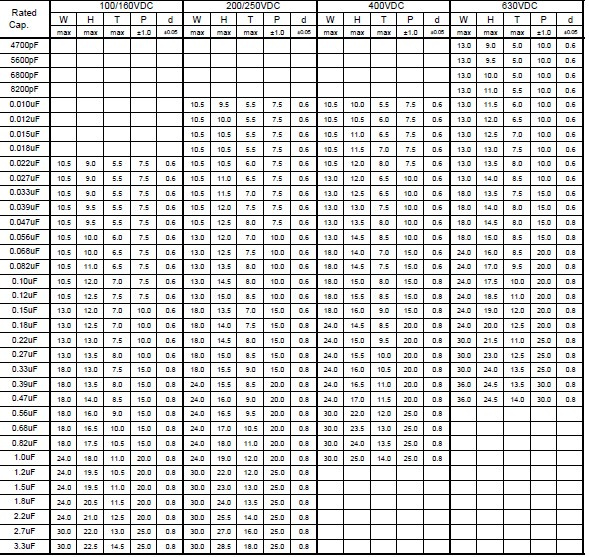

Dimensions(mm)

Why do you choose Hongfarad capacitor?

High quality commitment

Competitive prices

Professional factory with more than 10 years experience

Fast lead time and best after service

Strong research center & strong sales

Quick response from sales representatives

One stop solution for all kind of customers

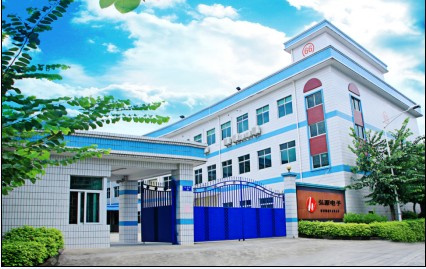

Company Information

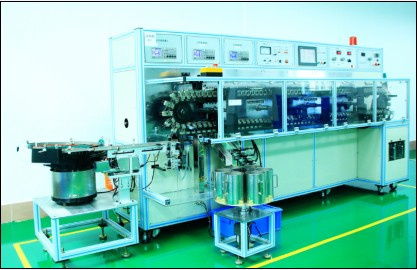

Welcome to visit our factory!

Our laboratory

Certifications

Product Certifications

Every type of our company products has been test by authority, and up to the international standands.

FAQ

FAQ

Question 1 : Are you a manufacturer or a trading company ?

Answer : We are a manufactuer specialized in metalized film capacitor with over 10 years experience.

Question 2 : How can I get some samples ?

Answer : We are honored to offer you samples for free, but the new clients are expected to pay the express cost, and the charge will be deducted from the payment for formal order.

Question 3 : Can your factory print my logo on the goods ?

Answer : Yes, we can print your own logo on the goods or the packing box.

Question 4 : What's your MOQ of this product?
Answer : MOQ is 3000 pcs, if less, please check with us firstly.

Question 5 : What's your delivery time?
Answer : It is about 2-3 weeks, if your goods required urgently, please contact us firstly.

Our Capacitors can take 110C Heat

Hongfarad' capacitors can safely reach operating temperatures of up to 110C, which is 30C higher than the industry average. We ensure this durability by incorporating top-notch components from Germany, Japan and South Korea. These factors have attracted the repeat business of multinationals like Samsung, LG, GE, etc.

Offering Halogen-free and RoHS-compliant Products

All of our products are both halogen-free and compliant with the RoHS Directive, giving them added value in the eyes of environmentally conscious consumers. Our 30 QC staff members, each with over seven years of experience, ensure our defect rate remains close to zero percent. Our R&D team develops one to three new products every quarter to keep you up to speed with the latest industry innovations.

We Keep 2 Million Units In-stock

We deliver your finished orders in less than two weeks, ensuring you meet your time-to-market objectives. This speed is assured by the fact that we keep two million units in-stock at all times. It also results in sample delivery lead times as short as 24 hours. Contact us today.
