Quick Details
Place of Origin | Guangdong, China (Mainland) | Brand Name: | Singway |
Model Number | XWM | Application | Remote Control |
Keypad Button Material | PET | Custom Service | Available |
Overlay Material | F200 | Thickness | Flexible |

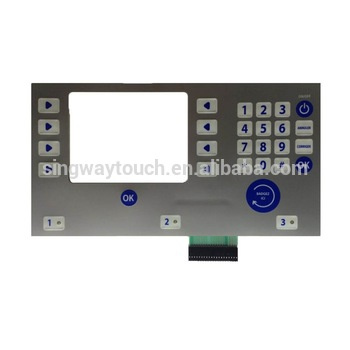

Rear Adhesive | 3m467/468 | Product name | Singway Customized Membrane Keyboard Switch |
Type | Flexible | Structure | Overlay+Metal Dome+Circuitry+Rear Adhesive |
Number of Switch | Multi Control Switch | Customize | For customer's requirements |
Technical Parameters
1.Electrical
Maximun Circuit Rating: | 35V(DC),100mA,1W |
Contavt Resistance: | 10Ω~ 500Ω |
Insulation Resistance: | 100MΩ 100V |
Dielectric: | 250VRms(50~60Hz 1min) |
Contact Bounce: | < 5ms |
Life Expectancy: | Flat: ≥ 5million times |
Tactile: ≥ 1 million times |
Dura switch: ≥ 10million times |
2.Mechanical
Actuation Force: | Flat:57~284g(2~10oz) Tactile: 170~397g(6~14oz) |
Switch Strok: | Flat: 0.1~0.5mm Tactile: 0.6~1.5mm |
3.Environment
Operation Temperature: | -40~+80ºC |
Storage Temperature: | -40~+80ºC |
Humidity: | 40,90%~95%,240hours |
Vibration: | 20G,max.(10~200Hz,Mil-SLD-202,M204.Condition B) |
Our Company
Dongguan SINGWAY Electronic Technology Co., Ltd was found in Sep,2011,it is the professional manufacturer and specialized in designing and
producing electronic products,such as Touch Screen,Touch Panel,Membrane Switch,Rubber Matte ,Flexible Printed Board and so on.We are much
experienced and professional in this line and we have 2 factories in China ,one is in Touch Panel,Another is Membrane KeyBoard.Our highly
quality products have been widely used in Home Appliances,Instruments,Medical Equipment,Industrial Control etc.At the same time,Our products
are sold successfully to China,USA,Britain,France,Germany,Sweden,India and so on.
We are looking forward to serving you and establishing a long-term,
mutually-beneficial partnership with you.Warmly welcome your kindly inquiry!
Dongguan Singway Electronic Technology Co., Ltd. Was established in September 2011, a set of research and development, manufacturing, sales and service as one of the high-tech enterprises, adjacent to the beautiful scenery of the Dongguan Songshan Lake Science and Technology Industrial Park, plant construction area of about 7000 square meters, the company has a high-quality professional management and R & D team, management and engineering and technical personnel account for 40%, with advanced and system, the value of the touch screen technology and solutions provider.
Dongguan Singway Electronic Technology Co., Ltd. is a professional R & D, manufacturing Touch Panel ITO (touch screen) manufacturers. Has the introduction of the United States, Japan, Taiwan and the domestic production, testing, laboratory equipment. Mainly to provide pre installed and post navigation, security, industrial control, smart home, medical equipment and other special touch screen. The monthly output is 400K/PCS, and has gradually become the outstanding supplier of many large enterprises. Dongguan Xing Electronic Technology Co., Ltd. Adhering to the "product quality first, market-oriented, customer value maximization" for the business philosophy; "thinking, conservation, implementation of the" management philosophy; "quality of service first, to maximize meet customers all reasonable demand" for the service concept. Relying on excellent technology and sophisticated equipment, and continued to establish a perfect quality, environment, safety and health management system, to promote the company's overall management of continuous improvement and continuous improvement. Has passed ISO9001/TS16949 quality management system, ISO14001 environmental management system, OHSAS18001 occupational health and safety management system, QC080000 hazardous substance process management system certification.
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
