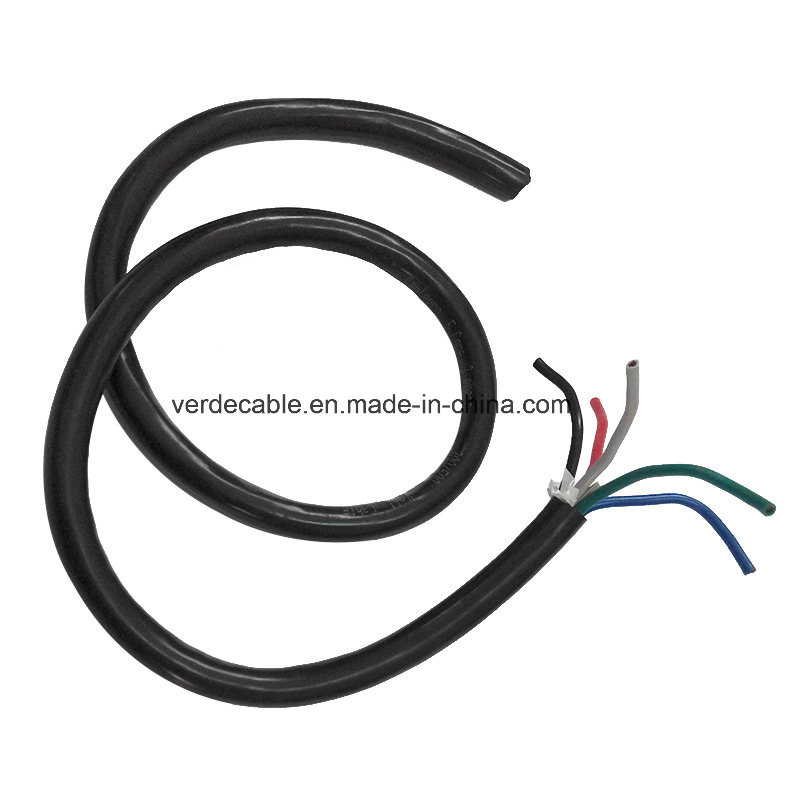

Multicore Cables PVC Insulated Flexible Electric Wire Cable

Name: Multicore Cables PVC Insulated Flexible Electric Wire Cable
Brand: all-electronics-online.com
SKU: 698685942
Availability: InStock
Rating: 4.8 (87 reviews)

Price:	US $ 0.25-2.5/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

H05VV-F Multicore PVC Insulated and PVC sheathed Flexible Cable

Rated voltage 300/500V,450/750V Flexible cable
Conductor class: class5
Conductor material:Stranded Copper or Stranded Tinned Copper
Insulation:PVC
Sheathing:PVC

Specification:
Core Nos.: 1core, 2core, 3core, 4core,5core
Nominal Section Area:0.5mm2,0.75mm2,1.0mm2,1.5mm2, 2.5mm2, 4.0mm2, 6.0mm2........240mm2
More size and specification can be customized

Insulation Color:
Red,Black, White,Green,Blue,Yellow,Orange Or customize as per the customer's request

Packing:
1.100meter per roll then put into plastic bags or carton
2. at least 500meter per drum

Technical data

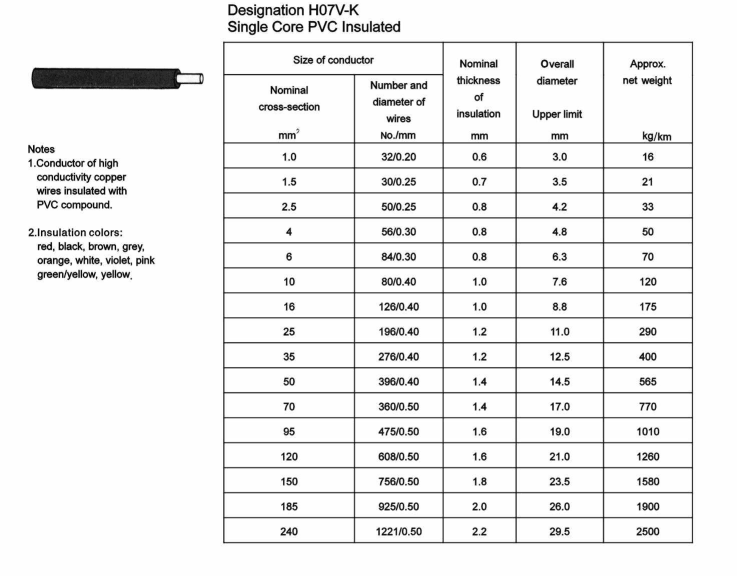

1).Single core Flexible cable (H07V-K Cable)

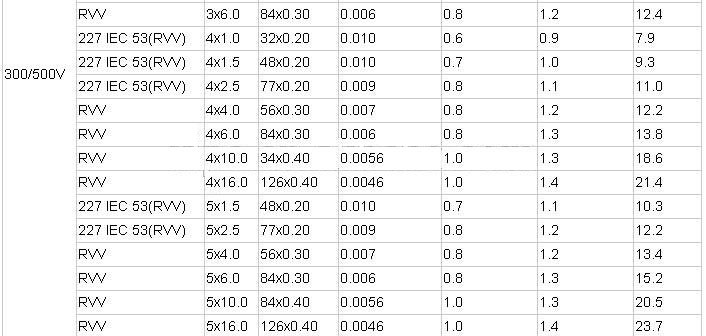

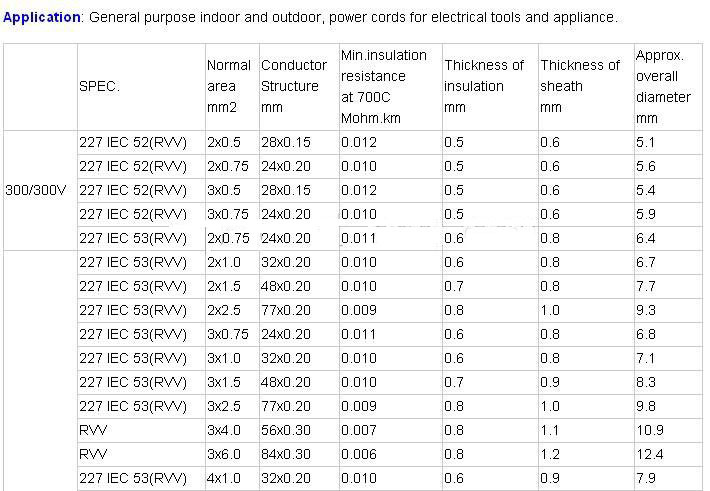

2) Technical data for 2core,3core,4core as follows

If you want to know more about us and our products,pls contact us.

Telephon us: 0086-13938400126

Linda Lee
Vice General Manager
VERDE XLPE CABLE LIMITED
Tel:0086-371-55611184
Mob:0086-13938400126
Focus on Wires and Cables
Be Your Most Reliable Supplier

Prod Model:	RVV
Markets:	South America,Southeast Asia,Africa,Oceania,Mid East
Produceing Experience:	15 Years
Size:	Customized According to Your Request
OEM:	Yes
Export To 1:	Malaysia, Philippines, Indonesia, Australia
Export To 2:	South Africa, Kenya, Oman, Somalia, Russia
Customzied:	Yes
Type:	Insulated
Conductor Type:	Stranded
Application:	Underground
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	RoHS
Sheath Material:	PVC, Lsoh ,LSZH

Our factory was founded in 2000 year, we specialized at manufacture and export of wires and cables. The producuts we supplied as follows:

Overhead Conductor for Power Project including Power transimission and distribution, Power plant and Substation, Conductors include AAC, ACSR, ACAR, AAAC, ABC cable and Stay Wire.

Power Cable and Electrical Wires: Building Wires, PVC Cables, XLPE Cables, Nylon Coated Cable, STA and SWA Armored Cable, Flexible Cable, Earthing Cable. We have professional working team that focus on working on power plant and substation project, and electric power transmission line project.

We can also supply Rubber cable, including Welding cable, Silicone cable, EPR Rubber cable.

New Products Development: From last year our workshop build new productin line that specialize at produceing Special Cable including High Temperature cable, Heating Cable, Teflon wire, PTFE wire, ASTVR Wire, Flexible cable, Nylon Cable THHN, THWN, Data Cable such as CAT5e, Speaker Cable, Telephone Cable, Shielding cable.

We can produce as per the standard of IEC, BS, UL, ASTM, DIN, GB, GJB, and we can also customize the special cable accordin to the different requirements of clients. We have exported to Eastsouth Asia, Middle East, Austrlia, Russia, USA, UK, South America, and most countries of Africa. Building long term cooperatoin and supplying the most professional service is our dealing principle.

Profession and Quality is our Constant Pursuit. We aim to build long term cooperation with the customers.

Sincere and Credit to every Customer No Matter The Order is Small or Big. Waiting for more friends to send inquiry and visit us!
