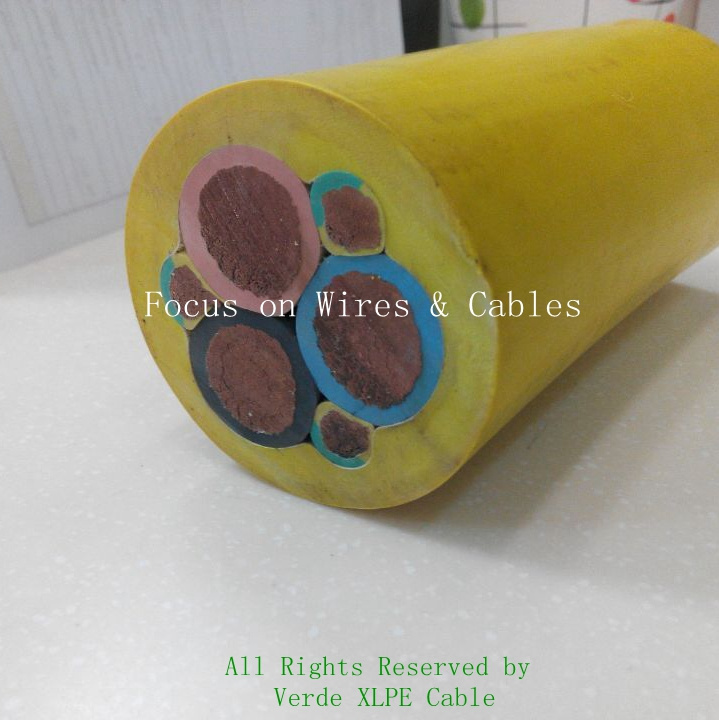

Multicore Oil Resistant Rubber Insulated Electrical Cable
Price: |
US $ 0.1-1.5/Meter |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
500/Meter |
Pay Type: |
L/C,T/T |
HighTemperature Resistant Rubber Cable Welding cableStandard:
IEC60245 and Different standard and specification can be customized.
Application
Flexible copper conductor rubber welding cable is used for connecting the electrode to the welding machine.
Product Description
1) Nominal area: 10~185mm2
2) Conductor: class 5 tinned or plain copper wire
3) No. of cores: 1
4) Insulation: rubber compound, PCP,EPR
5) The products available include:
60245IEC 81: rubber sheathed arc welding electrode cable
60245IEC 82: polychloroprene or other equivalent synthetic elastomer sheathed arc welding electrode cable
Main Technical Type Description &Specification Range we produce
Sectional Area | Max. wire dia. of conductor | Total thickness of sheath | Avg. overall dia. (mm) | Approx. weight (kg/km) | Max. d.c. resistance at 20°c (Ω/km) |
mm2 | mm | mm | Min. | Max. | IEC81 | IEC82 | Plain copper | Tinned coppner |
10 | 0.21 | 1.8 | 7.5 | 9.7 | 146 | 154 | 1.91 | 1.95 |
16 | 0.21 | 2.0 | 8.8 | 11.0 | 219 | 231 | 1.21 | 1.24 |
25 | 0.21 | 2.0 | 10.1 | 12.7 | 317 | 312 | 0.780 | 0.795 |
35 | 0.21 | 2.0 | 11.4 | 14.2 | 426 | 440 | 0.554 | 0.565 |
50 | 0.21 | 2.2 | 13.2 | 16.5 | 593 | 611 | 0.386 | 0.393 |
70 | 0.21 | 2.4 | 15.3 | 19.2 | 790 | 818 | 0.272 | 0.277 |
95 | 0.21 | 2.6 | 17.1 | 21.4 | 1067 | 1103 | 0.206 | 0.210 |
120 | 0.35 | 2.8 | 19.0 | 24.0 | 1349 | 1393 | 0.161 | 0.164 |
150 | 0.35 | 3.0 | 21.0 | 27.0 | 1679 | 1699 | 0.129 | 0.132 |
185 | 0.45 | 3.2 | 22.0 | 29.0 | 1984 | 2021 | 0.106 | 0.108 |
Packing way:
in Coil or Drums
Prod Model: |
rubber cable |
Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
2, 5, 4, 6, 10, 16, ..50...95mm2......240mm2 |
Produceing Experience: |
15 Years |
Export To: |
Indoesia, Australia, New Zealand, Greece, Middeleast |
Export: |
Middle East, Russia, South America |
OEM: |
Yes |
Special Specification: |
Be Customized |
Conductor Type: |
Stranded |
Application: |
Welding, Mine, Industry |
Insulation Material: |
Rubber |
Certification: |
VDE |
Range Of Application: |
Flame Retardant, Mine, Lsoh, Refractory, Oil Resistant |
Brand: |
Verde |
Sheath Material: |
Rubber |
Type: |
Rubber Insulated, Flame Resistant, Fire Retardant |
Conductor Material: |
Annealed Copper, Tinned Copper |
Our factory was founded in 2000 year, we specialized at manufacture and export of wires and cables. The producuts we supplied as follows:
Overhead Conductor for Power Project including Power transimission and distribution, Power plant and Substation, Conductors include AAC, ACSR, ACAR, AAAC, ABC cable and Stay Wire.
Power Cable and Electrical Wires: Building Wires, PVC Cables, XLPE Cables, Nylon Coated Cable, STA and SWA Armored Cable, Flexible Cable, Earthing Cable. We have professional working team that focus on working on power plant and substation project, and electric power transmission line project.
We can also supply Rubber cable, including Welding cable, Silicone cable, EPR Rubber cable.
New Products Development: From last year our workshop build new productin line that specialize at produceing Special Cable including High Temperature cable, Heating Cable, Teflon wire, PTFE wire, ASTVR Wire, Flexible cable, Nylon Cable THHN, THWN, Data Cable such as CAT5e, Speaker Cable, Telephone Cable, Shielding cable.
We can produce as per the standard of IEC, BS, UL, ASTM, DIN, GB, GJB, and we can also customize the special cable accordin to the different requirements of clients. We have exported to Eastsouth Asia, Middle East, Austrlia, Russia, USA, UK, South America, and most countries of Africa. Building long term cooperatoin and supplying the most professional service is our dealing principle.
Profession and Quality is our Constant Pursuit. We aim to build long term cooperation with the customers.
Sincere and Credit to every Customer No Matter The Order is Small or Big. Waiting for more friends to send inquiry and visit us!
