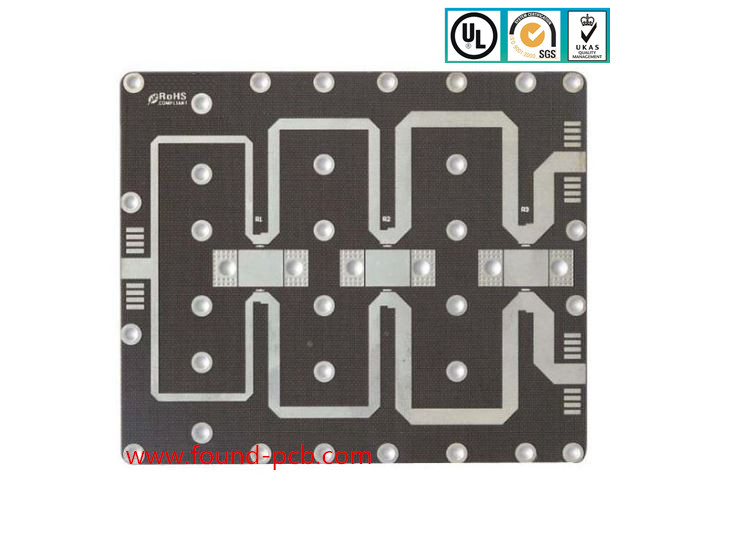

Multilayer Fr4 PCB Circuit Board
Price: |
US $ 0.1-12/Piece |
Min Order: |
1/Piece |
Pay Type: |
T/T,Paypal |
Prod Model: |
FD-08 |
Shipment: |
Air,Sea,Express(DHL TNT FedEx EMS UPS) |
Type: |
Rigid Circuit Board |
Dielectric: |
FR-4 |
Material: |
Fiberglass Epoxy |
Flame Retardant Properties: |
V0 |
Product Description
Welcome to our website!!!Shenzhen Found Printed Circuit Board Company is a professional pcb manufacturer has over 10 years experience,we supply products with FR4 laminate(Aluminum Based and Copper Based) and high frequency board,which are used in Electronic Security,lighting,telecommunication,industrial control,Medical equipment and etc.Our operation and management philosophy is "High Quality,Competitive Price and Mutual benefit",we are trying our best to serve customer and succeed in win-win cooperation! Capabilities |
Number of Layers | Double Side |
Material | FR-4,CEM-3,HighTg, Aluminum, Halogen Free |
PCB Thickness | Min.thickness | 0.2mm(8mil) |
| Max.thickness | 3.2mm(128mil) |
Surface finished | Gold Plating |
| Immersion Gold(Silver) |
| HAL Lead Free |
| Hot Air Solder Leveling(HASL) |
| Entek Coating (OSP) |
Solder Mask | Green,White,Black,Yellow,Red,Blue |
Other printing | Gold Finger |
| Carbon Print, Peelable Mask |
| Solder Mask Plugged Hole |
Copper thickness | 1/ 2 oz (18 um) - 4 oz (140 um) |
Min. Finished Hole Size | 0.3mm(12mil) |
Hole Size Tolerance (PTH) | +/ -0.076mm (3 mil) |
Hole Size Tolerance (NPTH) | +/-0.05mm (2 mil) |
Min. Line Width and Spacing | 0.10mm (4 mil) |
Min. Solder Mask Clearance | 0.076mm (3 mil) |
Min. Annular Ring | 0.1mm (4mil) |
Profile and V-Cut | CNC-Routing, Stamping and Beveling,V-CUT,CNC |
Special Process | Micro-section, Chamfer for Gold Finger |
1 Layer to 20 Layer PCB for Electronic Products:1.Board thickness: 1.6mm2.Material: FR43.Surface treatment: OSP4.Copper Thickness:1oz
Our PCB board manufacture and PCB assembly service:1. No MOQ for PCB and PCBA2. High standard pcb depends on IPC Class ll3. 100% E-tested before shipping4. RoHS, UL, ISO, SGS certificate5. Factory production Capability of 20000 sqm/month Production processes:
Material Receiving → IQC → Stock → Material to SMT → SMT Line Loading → Solder Paste/Glue Printing → Chip Mount → Reflow → 100% Visual Inspection → Automated Optical Inspection (AOI) → SMT QC Sampling → SMT Stock → Material to PTH → PTH Line Loading → Plated Through Hole → Wave Soldering → Touch Up → 100% Visual Inspection → PTH QC Sampling → In-Circuit Test (ICT) → Final Assembly → Functional Test (FCT) → Packing → OQC Sampling → ShippingTesting Procedures For PCB Board:* Visual Inspection* Flying probe* Impedance control* Solder-ability detection* Digital metallograghic microscope* AOI (Automated Optical Inspection)Why Choose Us?
1. Your inquiry related to our products or prices will be replied in 24hrs.
2. Well-trained and experienced staffs to answer all your enquires in fluent English
3. OEM&ODM, we can help you to design and put into product.
4. Distributorship are offered for your unique design and some our current models
5. Protection of your sales area, ideas of design and all your private informationwe care your order even one piece!
Found PCB, established in 2005, Shenzhen Found Printed Circuit Board Co., Ltd. is part of Found group. Found PCB dedicated to provide one-stop service, to meet highest technology, quality and quick turn over challenges with lowest cost.
Shenzhen Found Circuit Board Co., Ltd supply all kinds of PCBs more than 10 years. Products including Rigid PCB (1-20 layers), flex PCB(1-4 layer), metal core PCB, Rigid-Flex PCB, especially in the metal core PCB, they use widly in the LED lighting.
A lot of comepays from Europe and North American buy from Found, cause we are the source, we can offer very good price, we think we can save a lot of your purchasing cost.
We also offer PCB solution. Such as Rigid-flex PCB, a lot of factories in China can not made this kind of the rigid-flex PCB. But Found is good at this...

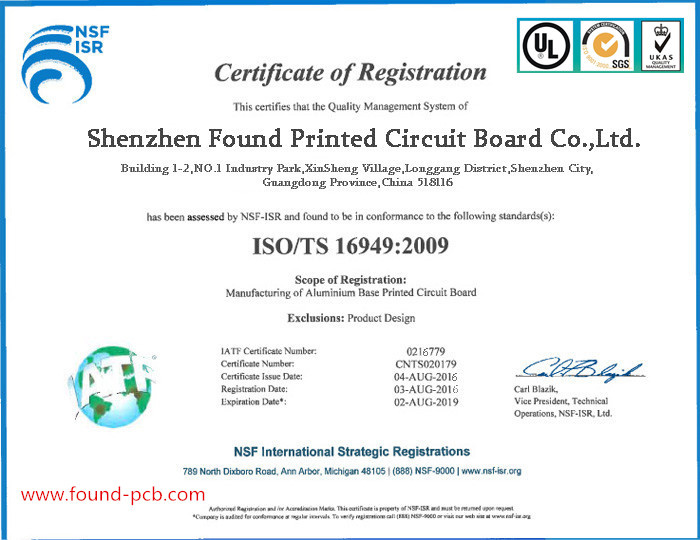

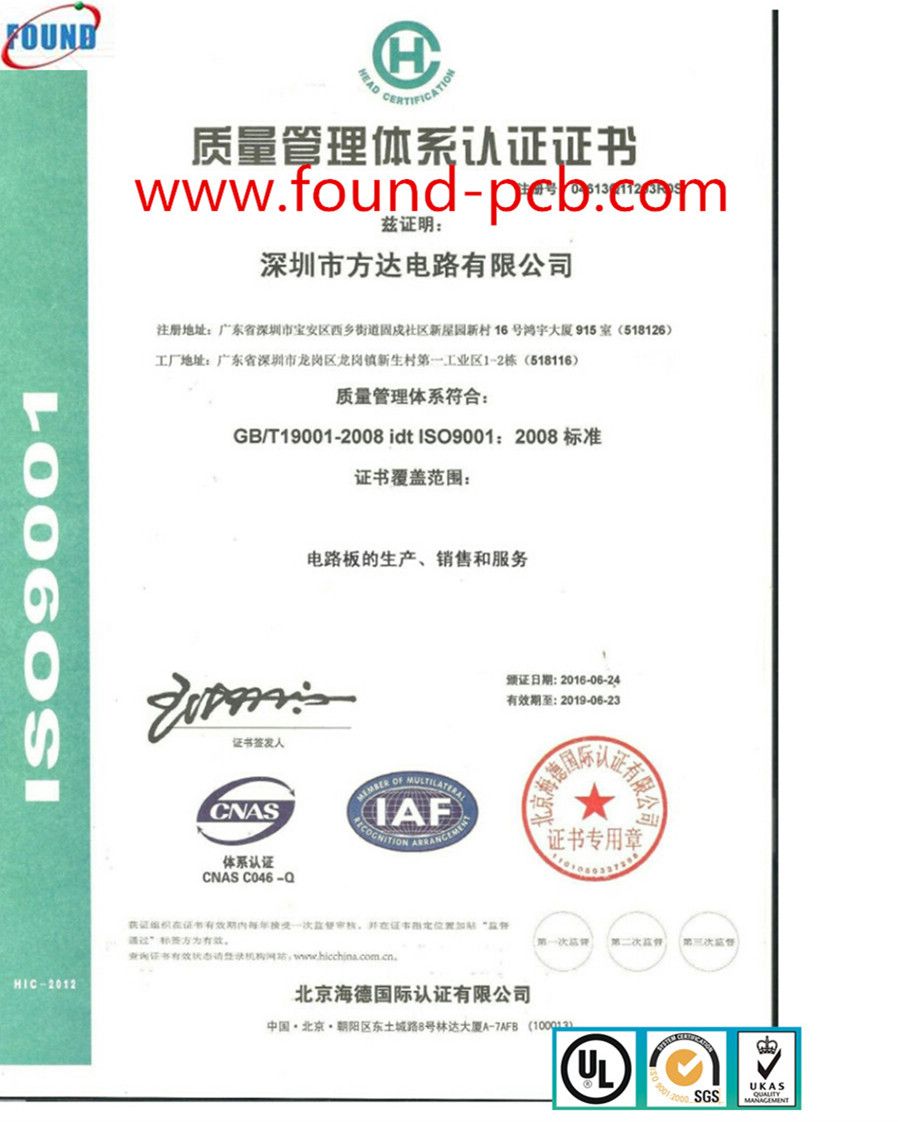

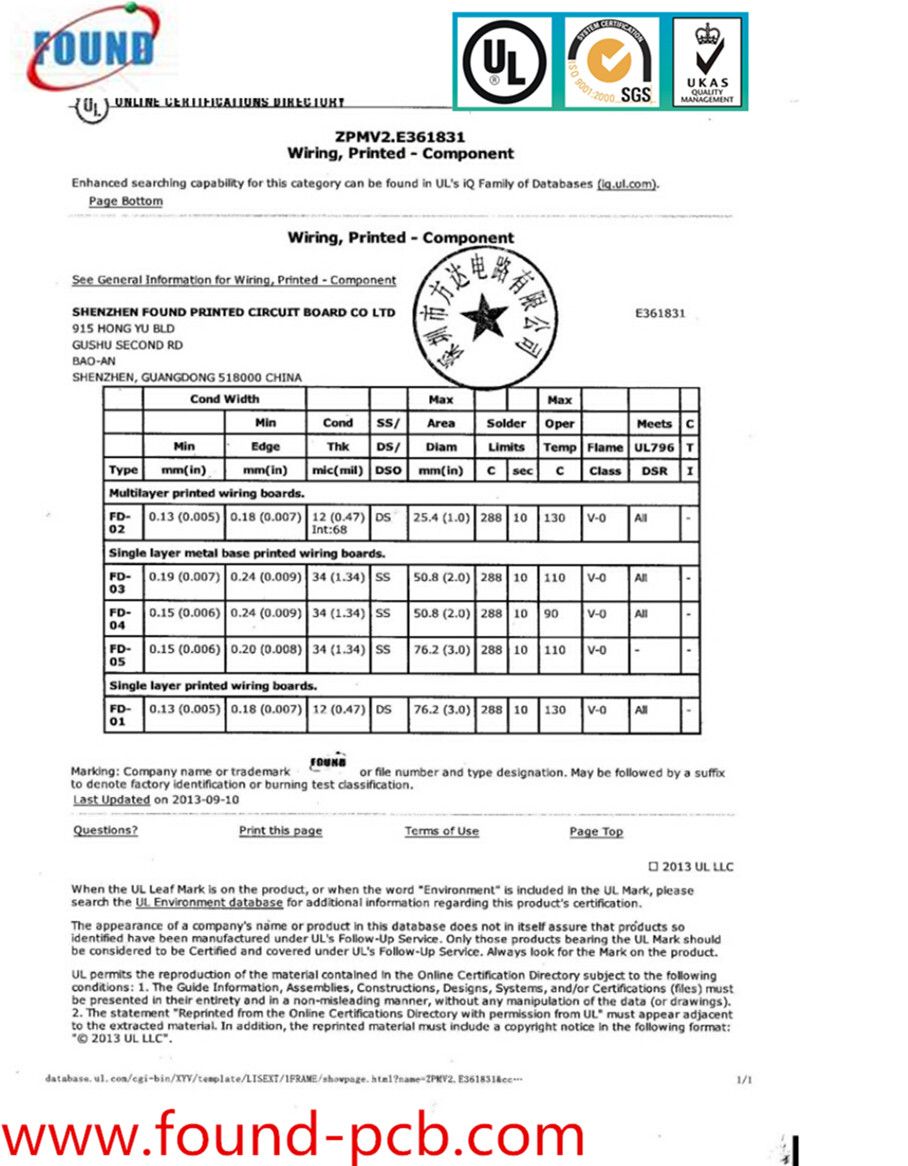

With several year's rapid development, the production capability of our factory reachs 25, 000 square meters with over 500 employees and 180, 000 sq. M production area. Found PCB has been certified by International Quality System IS09001, ISO14001, TS16949 and UL (E361831).
