NEMA17 Hybrid Stepper Motor (42SHD0216-16) , High Precision & Smooth Running Stepping Motor for Packing Machine

Name: NEMA17 Hybrid Stepper Motor (42SHD0216-16) , High Precision & Smooth Running Stepping Motor for Packing Machine
Brand: all-electronics-online.com
SKU: 829266905
Availability: InStock
Rating: 4.5 (108 reviews)

Price:	US $ 4.2-12.3/Piece
Min Order:	5/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

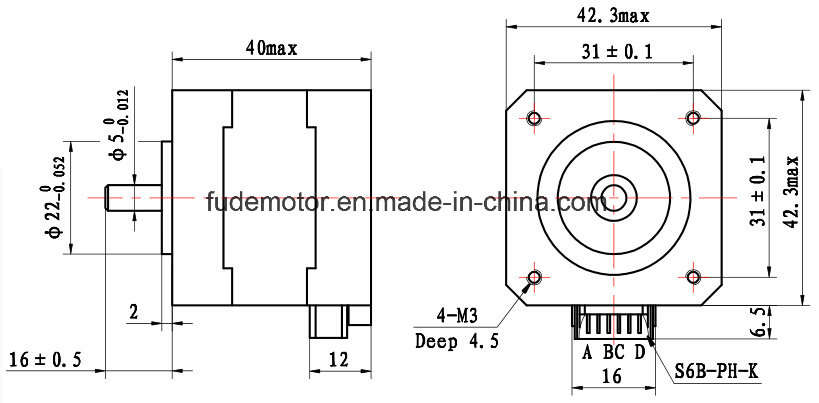

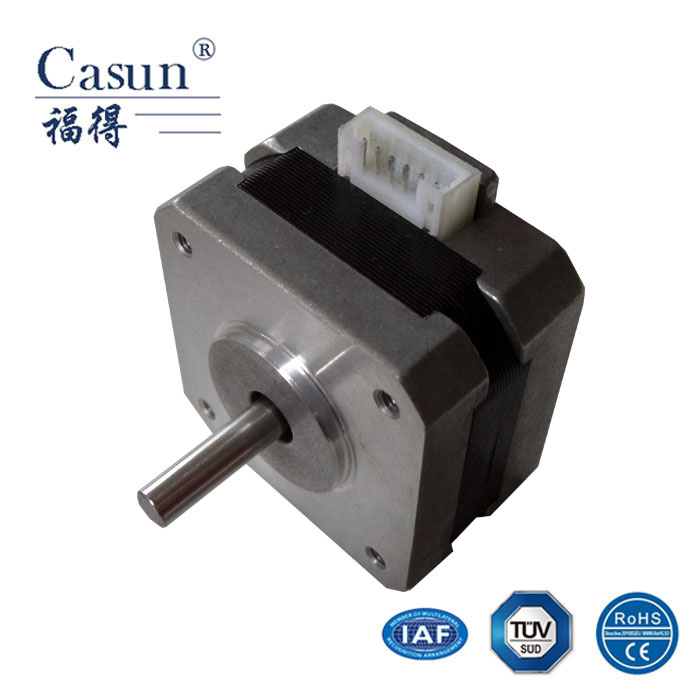

Two phase 1.8 degree NEMA17 (42*42mm) Hybrid Stepper Motor .
Shaft length can be customized. Shaft can be round, threaded, hollow and etc.
We produce stepper motor from nema11 to NEMA 34, and provide suitable drivers for all these motors for you.

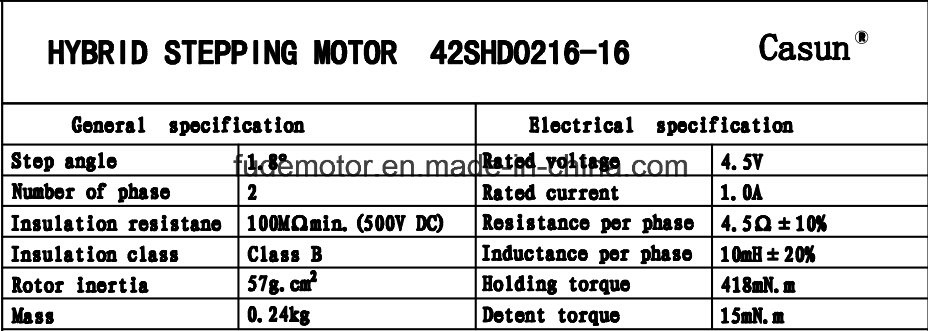

Technical Specification

Application Fields

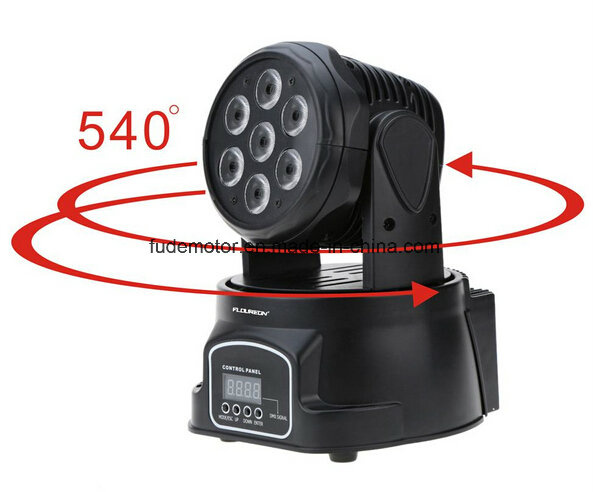

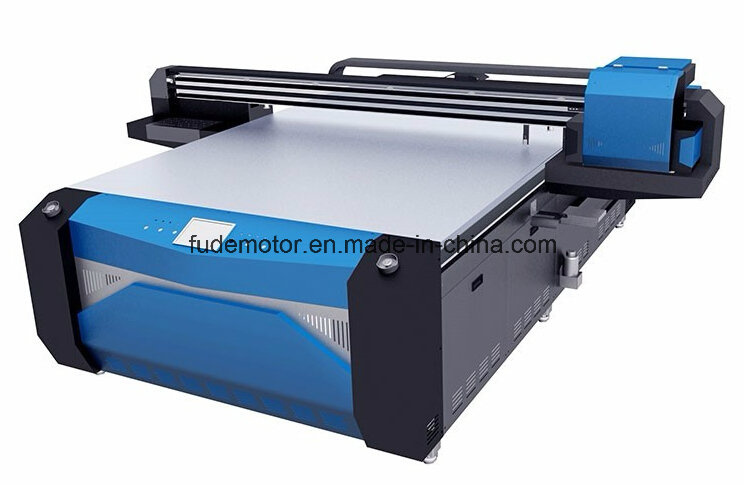

Our products can be applied in printing equipment, advertisement instrument, bank ATM, stage light equipment, CNC machine, automatic assembly equipment, carving machine, cutting machine, electric vehicles, packing machine, industrial temperature controller, textile machine, game machine, robotic machine and so on.

Operating Principle

Our stepper motor is made up of rotor,stator, bearing and housing. A certain electric current goes through the stator winding timely, then produces a rotating magnetic field within the motor. Under the action of magnetic suction, the rotor will follow this and creates a rotating magnetic field. The stator and rotor flux in each chain, and then produce rotary torque output.

Warning

Make sure the motor connect to a constant current or chopper drive controller before you test motor.
Connecting the motor directly to a power supply will destroy the motor.

Packaging & Shipping

1. Inner packing(foam packing) + Outer packing(Carton packing)
2. Export wooden case
3. Other package as you required
4. Shipment port: Guangzhou
5. Delivery terms: EXW, FOB, CIF
6. Delivery lead time: normally about 10 days

Our promise to our Customers

1. Customer's inquiry can be replied within 24 hours.
2. Reply to our customer questions & Concerns within 3 working days.
3. Acknowledge Customer purchase orders within 24 hours.
4. Standard Lead time is within 3 weeks. Respond to special product development within 15 weeks.
5. Flexible delivery methods: By air, by sea, express carrier.
6. Create a win-win business relationship with customers from all over the world.

Prod Model:	42SHD0216-16
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Type:	Electromechanical
Operate Mode:	Two Phase Uni-Polar
Certification:	Ce & RoHS & TUV
Brand:	Casun

Guangzhou Fude Electronic Technology Co., Ltd, has over 10 Years Manufacturing Experiences. It is a manufacture of stepper motors with well-equipped testing equipment and strong technical force.

It is located in Baiyun district, Guangzhou city with more than 7000 square meters.

Quality is our culture. Our manufacture gains a good reputation with good management mechanism, advanced technology, strong force of R&D, excellent quality and perfect after-sales services. There are many departments in our company including R&D Dept., Engineering Dept., Production Dept., Marketing Dept., After-sales services Dept. And Personnel Dept.

To meet market developments and customers' needs, our company will continue to improve the product structure, operational management, as well as comprehensive quality of the staff. With brand-new products, vigorous power and stable paces, we will work hand-in-hand with customers home and abroad to create brilliant future!

Our Core Competencies are Hybrid stepper motor, Reduction Gearbox Stepper Motor, Linear stepper motor, Stepper Motor Driver!

Our value Message is with us your money in safe your business in safe!

Please dont hesitate to contact us to get more details, we are waiting for you!
