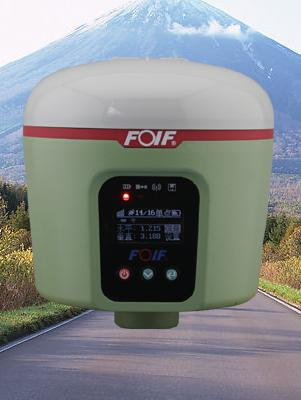

New Foif Rtk GPS A60
| Price: |
Negotiable/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
A60 |
| Name And Model: |
Foif A60 |
| Horizontal: |
2.5mm+0.5ppm RMS |
| Vertical: |
5mm+0.5ppm RMS |
Product Description
Product introduction :A60 is a designed miniature intelligent RTK products, which is based on the operation of Linux system platform and ARM CORTEX-A8 architecture research and development and use the magnesium alloy shell .It can let the users have more advanced, lightweight, fast measurement experiences and can be widely used in Cadastral, Roads, Electricity, Hydrology, Mines, Real Estate and other fields of measurement and layout .
Product Features:More Lighter: Diameter:12.4cm ; Height:13.3Cm and Weight :950 G More Stronger: High-strength lightweight magnesium alloy housings.More Intelligent: To Adopt the Linux operating system and ARM Cortex architecture, to support WiFi, NFC, and to optional 2g/3g/4g Wireless Link system, and support remote Intelligent service.More Easier to use: the visual OLED display + customizable real-life voice prompts, 3 combination keys to support the Chinese, British, Korean, Turkish, Spanish, Portuguese and other languages, to adapt to overseas engineering needs.More Durable: Low power design, Standard 7.4kv2x6800mA when high-capacity smart lithium battery.More Efficient: To support the multi-star system (China Beidou BDS, U.S. GPS, Russian GLONASS, EU Galileo, Satellite Enhanced SBAs ... ). It is more prominent in correcting on the forest, valleys, buildings and the shielding and multi path More Accurate: To support the Trimble Maxwell 6 high-precision algorithm, and built-in tilt measurement correction system. | The Specification of the A60 |
| Tracking Performance | 220 channels
United States GPS Satellite: Simultaneous tracking L1/, L2E, L2C, L5
Russian GLONASS satellite: Simultaneous tracking of L1C/A, l1p, L2/, l2p
China BDS Satellite: B1, B2, B3
Support for the European Union Galileo satellite: Simultaneous tracking of glove-a\b's L1boc (CBOC), e5a/b, E5altboc
SBAS: WASS, MSAS, EGNOS, QZSS |
| GNSS Feature | Initialization: < 3 seconds.
Output frequency: 1hz-50hz
Initialization reliability: > 99.99% |
| Hardware | Size | Dia.12.4x Height 13.3Cm |
| Weight | ≤1KG |
| Material | Magnesium |
Temperature | Work Temperature: -45ºC-80ºC;Storage Temperature: -55ºC-85ºC |
L
Protest Level | IP67 |
| Shock Resistance | Free Drop from 3meter Pole |
| Positional Accuracy | Static (RMS) | H:±2.5mm+0.5ppm |
| | V:±5 mm +0.5ppm |
| RTK(RMS) | H:±8 mm +1ppm |
| | V:±15 mm +1ppm |
| Data Link | UHF Radio | Internal Sending and receiving Radio |
| | External Data Link Radio |
| Network Communication | WCDMA3.5G network communication module, compatible with Gprs/edge (scalable 4G) |
| Bluetooth Wifi NFC | Bluetooth 2.1 + EDR/Bluetooth 4.0 BLE;
|
| Wifi | IEEE 802.11 b/g/n;
|
| NFC | Wireless near-field communication technology |
| Data Storage | Built-in 16G solid-state storage/extensible 128G TF |
| Data Port | rs232x1, USBx1, SIM card slot x1 |
| Data Format | Differential data formats: CMR, cmr+, RTCM2.3, RTCM3.0, RTCM3.1, RTCM3.2 Scmrx |
| Power | Battery: 7.4VX6800MAHX2 Block External power supply: 9-25v DC power supply |
| User interaction Interface | Display | 4 rows 16 OLED highlight display, 4 high-brightness LED Display lights |
| Operating | 3 Operation Keys |
| Voice | Bilingual system, Chinese prompt voice/English prompt voice, can be set to choose |
| Language | Bilingual System Chinese Language interface/English language interface, can be set to choose |
| Inertial sensing | Tilt measurement | 30° Tilt Range ≤3cm |
| Electronic blisters | Tilt Precision 2′ |
| | |
| F56 full keyboard hand book parameter table |
| | Introduction |
| CPU Frequency | 624MH |
| ROM | 512MB |
| RAM | 256MB |
| Operating System | Windows Mobile 6.1 (default)/6.5 (optional) |
| Keyboard | 27 Key number + Control key |
| Microphone | Support |
| Speakers | Support |
| Screen size | 3.7 Inch HD Sunshine Screen |
| Screen resolution | 480 x 640 |
| Camera | 5 Million Pixels |
| Size | 200mm x 96mm x 32mm |
| Weight | 515G (with battery) |
| | |
| | GNSS Performance |
| GPS L1 | Support |
| BDS B1 | Support |
| GLONASS L1 | Support |
| Number of channels | 167 |
| RAW Data | Support |
| NMEA-0183 | Support |
| External Antenna | Support |
| | |
| | Position Accuracy |
| Single Points | 3m |
| SBAS | 2.5m |
| DGPS | 1m |
| DGPS data format | RTCM2.x,RTCM3.x |
| | |
| | First location time |
| Hot start | 1S |
| Warm start | 29s |
| Cold Start | 29s |
| Recapture | 1s |
| | |
| Standard Bluetooth V2.1 | Support |
| Long Distance bluetooth | Optional |
| Data network | GSM,WCDMA |
| WIFI | Support |
| USB interface | Type B USB |
| Serial Port | DB9 Standard serial port |
| Voice call | Support |
| Storage extensions | TF card, maximum support 32GB |
| | |
| | Power characteristics |
| Power input | DC 5V,1A |
| Removable Lithium Battery | 6,500mAh,3.7V |
| | |
| | Environmental indicators |
| Work Temperature | ‐20ºC ~ +60ºC |
| Storage temperature | ‐30ºC ~ +70ºC |
| Dustproof Waterproof | IP54 (customizable IP67) |
| Anti-Drop | 1.2m Free-fall fall |
