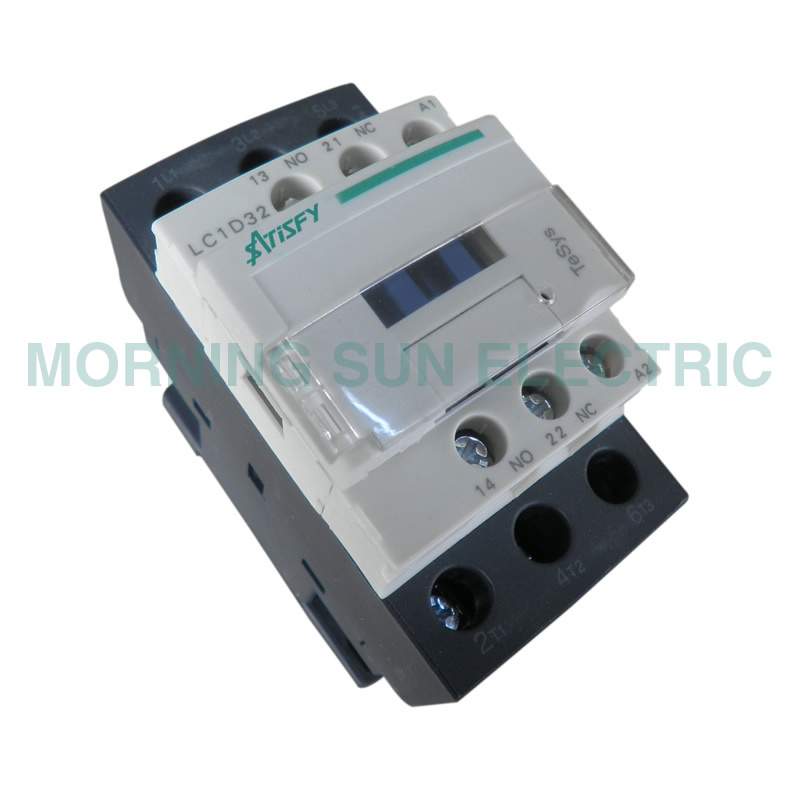

New Model Contactor LC1d32

Name: New Model Contactor LC1d32
Brand: all-electronics-online.com
SKU: 677698425
Availability: InStock
Rating: 4.7 (90 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF
Min Order:	200/Piece
Pay Type:	L/C,T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

This is the new type contactor of LC1-D series AC Contactor, which is suitable for using in the circuits up to the rated voltage 660V AC 50Hz or 60Hz, rated current up to 95A, for making, breaking, frequently starting & controlling the AC motor, Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter, With the thermal relay, it is combined into the electromagnetic starter, The Contactor is produced according to IEC9472, VDE0660 & BS5452.

		LC1-D09	LC1-D12	LC1-D18	LC1-D25	LC1-D32
Rated working	AC3	9	12	18	25	32
current (A)	AC4	3.5	5	7.7	8.5	12
AC3 capacity of phase 3 squirrel-cage motor AC3(KW)	220/230V	2.2	3	4	5.5	7.5
	380/400V	4KW	5.5	7.5	11	15
	415V	4KW	5.5	9	11	15
	500V	5.5KW	7.5	10	15	18.5
	660/690V	5.5KW	7.5	10	15	18.5
Rated heat current (A)		20	20	32	40	50
Compatible manual or auto thermal overload relays	AC3 x 10 4	100	100	100	100	80
Compatible manual or auto thermal overload relays	AC4 x 10 4	20	20	20	20	20
Mechanical life x 10 4		1000	1000	1000	1000	800
Number of the contacts		3P+NO
Number of the contacts		3P+NC


Type		LC1-D40	LC1-D50	LC1-D65	LC1-D80	LC1-D95
Rated working	AC3	40	50	65	80	95
current (A)	AC4	18.5	24	28	37	44
AC3 capacity of phase 3 squirrel-cage motor AC3(KW)	220/230V	11	15	18.5	22	25
	380/400V	18.5	22	30	37	45
	415V	22	25	37	45	45
	500V	22	3	37	55	55
	660/690V	30	33	37	45	55
Rated heat current (A)		60	80	80	125	125
Compatible manual or auto thermal overload relays	AC3 x 10 4	80	60	60	60	60
Compatible manual or auto thermal overload relays	AC4 x 10 4	15	15	15	10	10
Mechanical life x 10 4		800	800	800	600	600
Number of the contacts		3P+NC+NO

Prod Model:	LC1D32
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Theory:	Thermal Relay
Size:	Subminiature

Morning Sun Electrical Co., Ltd. Founded in 1995, located in the Liushi Town - "Electric Capital", mainly producing Micro switch, Contactor, MCB, MCCB, Auto-Air-Conditioner Parts and Thermostats and related products, which have been sold to Europe, North America, South America, Middle East, Southeast Asia and so on. Based of the "Good quality, competitive price, timely shipment and nice service", now getting regular repeated orders and enjoying the good reputation among our customers.

"Morsun" is prepared and willing to cooperate with any friends from all over the customers for the mutual benefits and bright tomorrow!
