Product Details
♦
UL approved nylon PA66 plastic cable glands are devices designed to attach and secure the end of a cable to the equipment. A cable gland provides strain-relief and connects by a means suitable for the type and description of cable for which it is designed-including provision for making electrical connection to the armour or braid and lead or aluminium sheath of the cable, if any. Cable glands may also be used for sealing cables passing through bulkheads or gland plates.
♦
Material : UL approved nylon PA66, Nitrile rubber(NBR).
Thead specification : metric, PG, G, NPT.
Working temperature: -40°C to 100°C instatic state instantaneous heat resistance up to 120°C, -20°C to
80°C in dynamic state, instantaneous heat resistance up to 100°C.
Product Type
PG Type
| Model | Cable range(mm) | Thread diameter AG(mm) | Thread length GL(mm) | Spanner diameter (MM) |
| PG7 | 3−6.5 | 12.5 | 9 | 16 |
PG9 | 4−8 | 15.2 | 9 | 19 |
| PG11 | 5−10 | 18.6 | 9 | 22 |
| PG13.5 | 6−12 | 20.4 | 9 | 24 |
| PG16 | 10−14 | 22.5 | 10 | 27 |
| PG19 | 12−16 | 24 | 10 | 28 |
| PG21 | 13−18 | 28.3 | 12 | 33 |
| PG25 | 16−21 | 30 | 12 | 35 |
| PG29 | 18−25 | 37 | 12 | 42 |
| PG36 | 22−32 | 47 | 17 | 52 |
| PG42 | 32−38 | 54 | 19 | 60 |
| PG48 | 37−44 | 59.3 | 19 | 69 |
| PG63 | 42−50 | 71 | 27 | 75 |
♦M Type
| Model | Cable range(mm) | Thread diameter AG(mm) | Thread length GL(mm) | Spanner diameter (MM) |
| M12 | 3-6.5 | M12*1.5 | 9 | 16 |
| M16 | 4-8 | M16*1.5 | 9 | 19 |
| M18 | 5-10 | M18*1.5 | 9 | 22 |
| M20 | 6-12 | M20*1.5 | 9 | 24 |
| M22 | 10-14 | M22*1.5 | 10 | 27 |
| M24 | 12-15 | M24*1.5 | 10 | 28 |
| M25 | 13-15 | M25*1.5 | 10 | 30 |
| M27 | 13-18 | M27*1.5 | 12 | 33 |
| M30 | 16-22 | M30*1.5 | 12 | 37 |
| M32 | 16-21 | M32*1.5 | 12 | 35 |
| M36 | 18-25 | M36*1.5 | 12 | 42 |
| M40 | 20-26 | M40*1.5 | 17 | 52 |
| M50 | 32-38 | M50*1.5 | 19 | 60 |
| M63 | 37-44 | M63*1.5 | 19 | 69 |
| M70 | 42-52 | M70*1.5 | 27 | 77 |

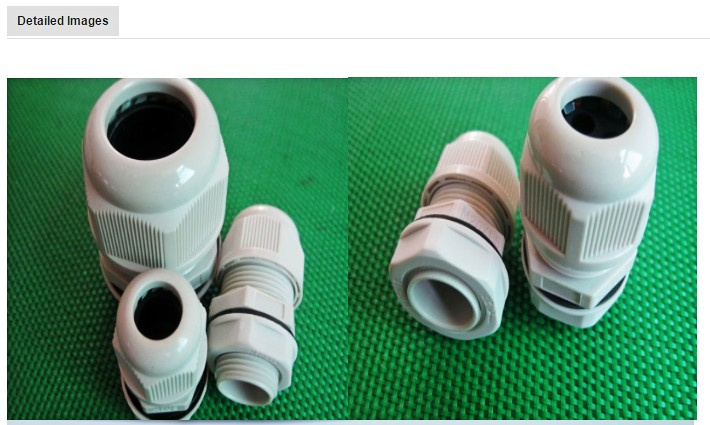

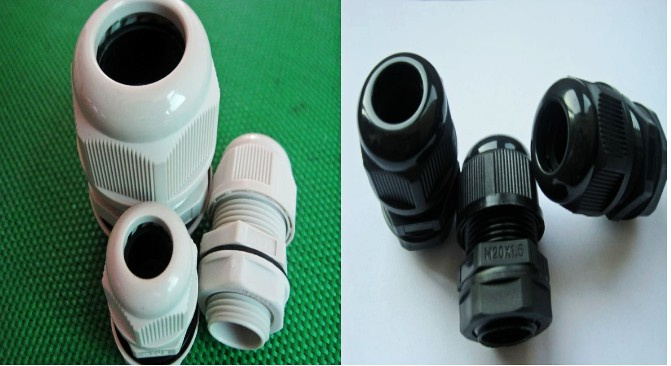

Product Show
FAQ
1. Q:What can we do for you?
A:1) Competitive Price( Factory direct price) .
2) On time delivery
3) Good customers service
4) Professional Technology
5) Quality Control through the whole Manufacturing process
- Q: Do you have a catalogue? Can you send me the catalogueto have a check of all your products?
A: Yes , We have product product list.Please contact us online or send an Email to sending the catalogue. 3. Q: I need your price list of all your products, do you have a price list ?A: We do not have a price list of all of our products. Because we have so many items,and it's impossible to mark all of their price on a list.And the price are always changing because of the producing cost.If you want to check any price of our products, please feel free to contact us.We will send offer to you soon! 4. Q: I can find the product on your catalogue, can you make this product for me?A: Our catalogue shows most of our products,but not all.So just let us know what product do you need,and how many do you want. 5. Q : How to ship my order ? Is it safe?A: For small package, we will send it by Express, such as DHL,FedEx,,UPS,TNT,EMS.That's a Door to Door service.For big packages, we will send them by Air or By sea.We will use good packing and ensure the safety.We will be responsible to any product damage caused on delivery. 6. Q: Do you have a guarantee of your product quality?A: We have a guarantee of one year. Packaging & ShippingSHIPPING AND PAYMENTS1 Express Air shipment and Sea shipment as customrrs' request.2 FAST SHIPPING from our Wenzhou China Factory!3 Item shipped in 3-15 working days after payment is received depends on the quantity of the order. 4 Item shipped by FedEX,TNT,DHL and others, depending on size and weight of total order.5 Item only shipped to address listed on the invoice; Not responsible for shipping to wrong address.6 Putting the customer's needs first,always.7 On call,24 hours a day,7 days a week., | ALL the products of the company are the leading brands within the industry |
