New Type AC Contactor (LC1-D)

Name: New Type AC Contactor (LC1-D)
Brand: all-electronics-online.com
SKU: 606250064
Availability: InStock
Rating: 5 (61 reviews)

Price:	Negotiable/Piece
Trade Terms:	By sea or air
Min Order:	200/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	New Type LC1-D

Product Description

Product Description:

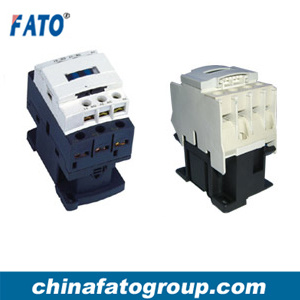

This is the new type contactor of LC1-D series AC Contactor, which is suitable for using in the circuits up to the rated voltage 660V AC 50Hz or 60Hz, rated current up to 95A, for making, breaking, frequently starting & controlling the AC motor, Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter, With the thermal relay, it is combined into the electromagnetic starter, The Contactor is produced according to IEC9472, VDE0660 & BS5452

Type	Ui	Ith	Specification	Coil voltage	Dim	Function

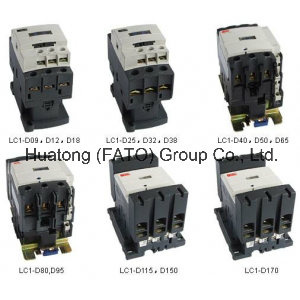

LC1-D AC-contactor	690V	20A	LC1-D0910, LC1-D0901, LC1-D0911, LC1-D0904, LC1-D0908	AC24V;AC48V;AC110V; AC127V;AC220V;AC240V; AC380V;AC415V;AC440V; AC500V;AC600V;AC66OV	76X47X82	It is suitable for making and breaking electric circuits with frequency of 50/60Hz, voltage up to 690V, current up to 9A and theutilization category AC-3at a long distance, controlling AC motors.(Fixed withLR2-D13 thermal relay)

Why do you choose us?

FATO group founded in 1986, is one of the most respected nationwide manufactures and exporters of low voltage, complete electrical apparatus, instrument, transformers etc.
FATO group has more than 20 holding companies, more than 600 sales companies and more than 20 overseas sales agents.
FATO group has more than 2800 staff, more than 18000 M² production area.
Our products have passed through the domestic and foreign authentications ISO9001, ISO14001, OHSAS18000, CCC, CB, CE, SEMKO, KEMA, TUV, UL, RoHS, and so on..

Founded in 1987, Huatong (FATO) Group Co., Ltd. is being acknowledged as one of the most respected nationwide manufactures and exporters of low voltage electrical apparatus in P. R of China. The Group, comprising more than 60 factories, owns a production area of 150, 000M2 and employs more than 2, 000 employees. During the past 18 years, the Group has invested heavily in both research and development and employee training programs, resulting in a wide range of products that meet the most rigorous requirements of international organizations such as CCC, CE, UL, BS, and ISO14001 etc. In 2001 Vouching Technical Inspection Ltd. As an ISO9001 recognized us: 2000 certified enterprise. In 2004 we were recognized as ISO14001 certified enterprise.

Currently, we manufacture and export more than 80 varieties of products, with over 1000 types of low voltage electrical apparatus including all kinds of Circuit breakers, Contactors, Relays, Starters, Switches, Panel meters, Fuses, Mechanical instruments and Electrical accessories etc. And we have already established great business relationship with renowned customers in South East Asia, Middle East, South America, Africa and EEC.

We are fully aware of the fact that only "Versatile Staff, Distinctive Quality and Advanced Technology" can help us survive and succeed in today's highly competitive market. Hence, we guarantee high quality of all our products, because they all have undergone strict quality control and meet high standards.
