Newest GPS Tracker Smart Car Alarm Arm Disarm Vehicle
| Price: |
US $ 40-50/Set |
| Trade Terms: |
FOB,EXW,CIF |
| Min Order: |
1/Set |
| Pay Type: |
T/T,Western Union,Paypal,Money Gram |
Newest GPS Tracker Smart Car Alarm Arm Disarm Vehicle
Products Overview GPS tracker VT200B is advanced terminal with GPS positioning and GSM connectivity, which is able to get device coordinates and other data and transfer them via GSM network. This device is perfectly suitable for applications where location acquirement of remote objects is needed. So you can track your remote objects (trucks, cars etc.) quickly and easily.
In case of losing connection GPS tracker can store more than 10,000 records, and once the connection is established the device will send stored data via GPRS. So you won't lose your data(coordinates, sensors data and etc.)
VT200B also plus a newest smart car alarm solution. It can connect to your phone as detector. When you with phone leaving the car, the system will be armed automatically, if someone opens the door/ignition/moving your car, system will send alert, you will get alert notification on your phone, immobilizer scenario which enables to start engine only after reading your phone. When you walk close to the car and your phone is recogized, system will be disarmed.
Application
* Vehicle tracking & security
* Fleet Management
* Smart RFID auto driver identification
* Anti theft
* Anti jamming
Specification
| Items | Specifications |
| Dimension | 75*54*25mm |
| Weight | 123g |
| Input voltage | DC 9V~24V/1.5A |
| Back-up Battery | 650mAh/3.7V |
| Power Consumption | 65mA standby current |
| Operating Temperature | -20°C~55°C |
| Humidity | 5%~95% |
| Battery Work Time | 33 hours in power-saving mode and 8 hours in normal mode |
| LED | 2 LED lights to show GPS, GSM status |
| Button | 1 SOS and 1 power on/off |
| Microphone | Default |
| Memory | 2M Byte |
| Sensor | Motion sensor |
| 2G GSM Frequency | 850/900/1900/2100MHz |
| 3G GSM Frequency | Module E:
UMTS/HSDPA 900/2100MHz
Module A:
UMTS/HSDPA 850/1900MHz
Module T: UMTS/HSDPA 850/2100MHz |
| GPS Chip | Latest GPS SIRF-Star III Chipset |
| GPS Sensitivity | -161dB |
| Positioning Accuracy | 10meters, 2D RMS |
| I/O | 3 Input
1 Analog Input Detection
2 Output
1 USB port |
| Packing Measures: |
| Neutral | Dimension (mm) | Weight (KG) | Capacity |
| Box | 225x160x550 | 1 | 1 set |
| Carton | 470x340x310 | 14 | 20 sets |
Feature &Function
| Anti robbery /theft GPS tracker | Bluetooth GPS tracker |
| Support 2G 3G 4G network | Support fuel sensors, monitor petrol level (Optional) |
| GPS tracker + RFID car alarm | Cut off engine remotely |
| GSM jamming detection, anti jamming | With 850mAh inbuilt rechargeable battery |
| Ublox7 GPS industrial high sensitive module | Two way tracking, GPS/intelligent GSM positioning |
| Multiple Geo-Fence Setting,Movement Alert,overspeed Alert,tow alert,main power cut off alert etc | Powerful and multifunctional tracker for comprehensive Fleet management |
| Inbuilt 2MB data logger for saving position when in GSM/GPRS blind area | Get real time vehicle position address street name /Google map link by SMS |
| Smart phone reader for anti-theft (Optional) | Crash sensor for accident alarm (Optional) |

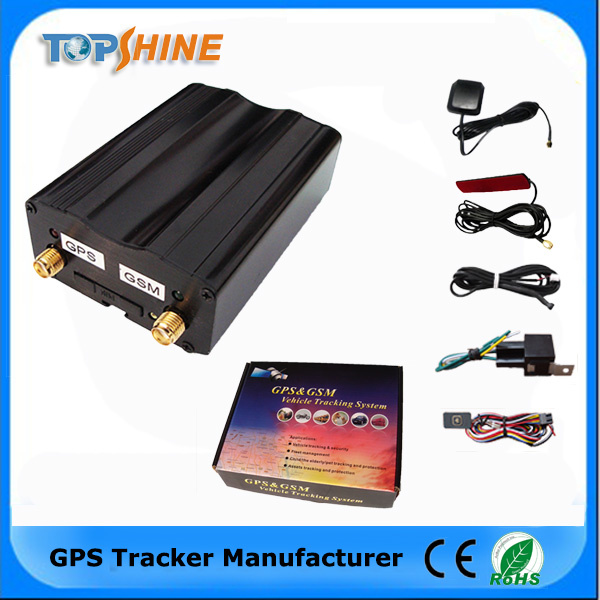

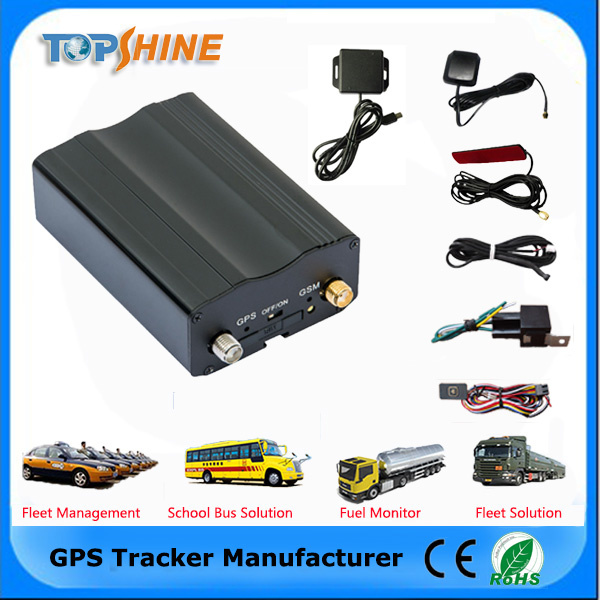

Package & Accessories
VT200 unit: 1 unit
Wire : 1 piece
Relay: 1 piece
Microphone : 1 piece
SOS button :1 piece
GPS antenna :1 piece
GSM antenna : 1 piece

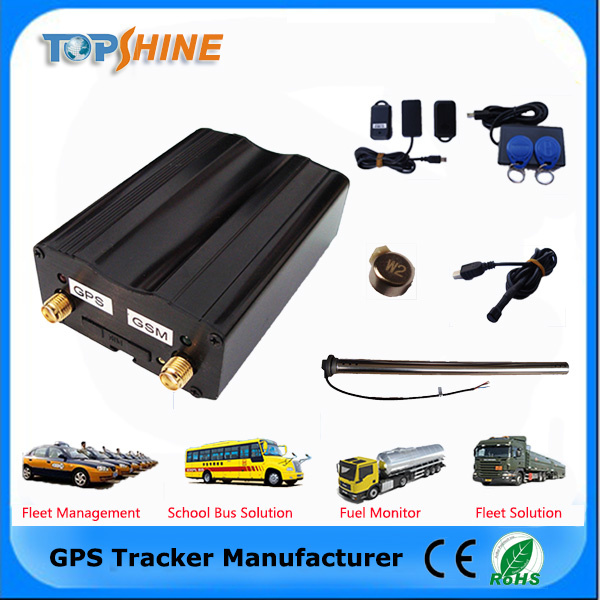

Optional Accessoires
* Ultrasonic fuel Sensor
* Cuttable fuel sensor
* Smart Phone Reader
* Crash Sensor
* Temperature Sensor
* USB configure Cable

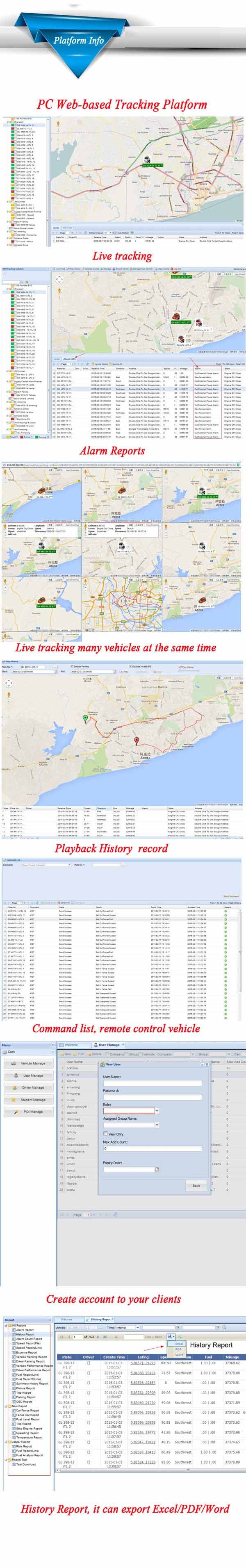

Welcome to access Topshine free tracking softwarePC: www.track-car.com
Mobile Phone: http://www.track-car.com/M
User name: hongkong
Password: 123
Our advantage
* Provide 2 free Tracking Platfrom (PC base & Android APP) lifelong. No any monthly or yearly charge.
* 2 years warranty
* All of our products have CE & RoHS & SGS certification
* Supply OEM&ODM service.
* Our engineer team could customize your personality tracking platform
* Professioal R&D team provide Customization and after-sale service lifelong .
* 100% made of industrial-grade component,GSM module have certified(CE2200)and with legal IMEI code.
Payment&Shipment
Payment Term: PayPal /western union /TT
Shipping Term: DHL /Fedex /TNT /ARAMEX/EMX
Lead time: Samples within 1 days of delivery.bulk production within 5-7days of delivery.
Topshine Advanced Solutions
It is welcome to help you customize a pecial product with your company advantage and unique.
Just keep us posted with your new ideas, our high experienced engineers will try their best to help you achieve.
Fuel tracking solution: Monitor the fuel tank / capacity with SMS / GPRS alert.
Driver behavior management solution: harsh accelerate or braking, drive for private purposes, fuel stealing, idle alarm, task scheduling, etc.
FAQQ: Why the tracker can't be switched on?A: 1. Check if wiring is correct or not.
2. Charge the tracker.Q: No response to SMS commandA: 1. Wrong password. Please check your password.
2. No GSM mobile signal or weak GSM network. Try later.
3. Out of SIM credit. Please pop up.
4. SIM is damaged. Change a sim card.
5. SIM card is without sending function. Change a SIM or enable SMS sending function.
6. SIM card isn't installed properly.Q: Why there is a "Last" appearing in a positon report SMS?A: There is no GPS signal. Please take the tracker to somewhere open area.Q: How to use tracking platform?A: 1. Set GPRS parameter in Parameter.exe.
2. Set GPRS parameter by SMS.
(1) Set tracker ID: W,010,ID
(2) Set APN: W,011,APN name
(3) Set IP and Port: W,012,210.209.68,9600
(4) Enable GPRS: W,013,1
(5) Set report time interval: W,014,00000
(6) Open link www.global-track and create vehicle info in Manage - Vehicle ManageQ: How to connect Relay to cut off engine?A: Cut off fuel pump wire, connect green wire of relay with fuel pump line, connect yellow wire with relay yellow wire, connect white wire with 12V power supply line.
Inquiry Now!!
| Prod Model: |
VT200B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Car GPS Tracking System |
| Free Tracking Platform: |
Yes |
| Warranty: |
Two Years |
| GSM Module: |
industrial Grade Module |
| Two Way Location: |
GPS + GSM Mode |
| Backup Battery: |
Built-in 650 mAh |
| Anti Robbery/Theft: |
Support |
| Acc On And Door Open Alarm: |
Yes |
| Mileage Report: |
Yes |
| Smart Car Alarm: |
Support |
